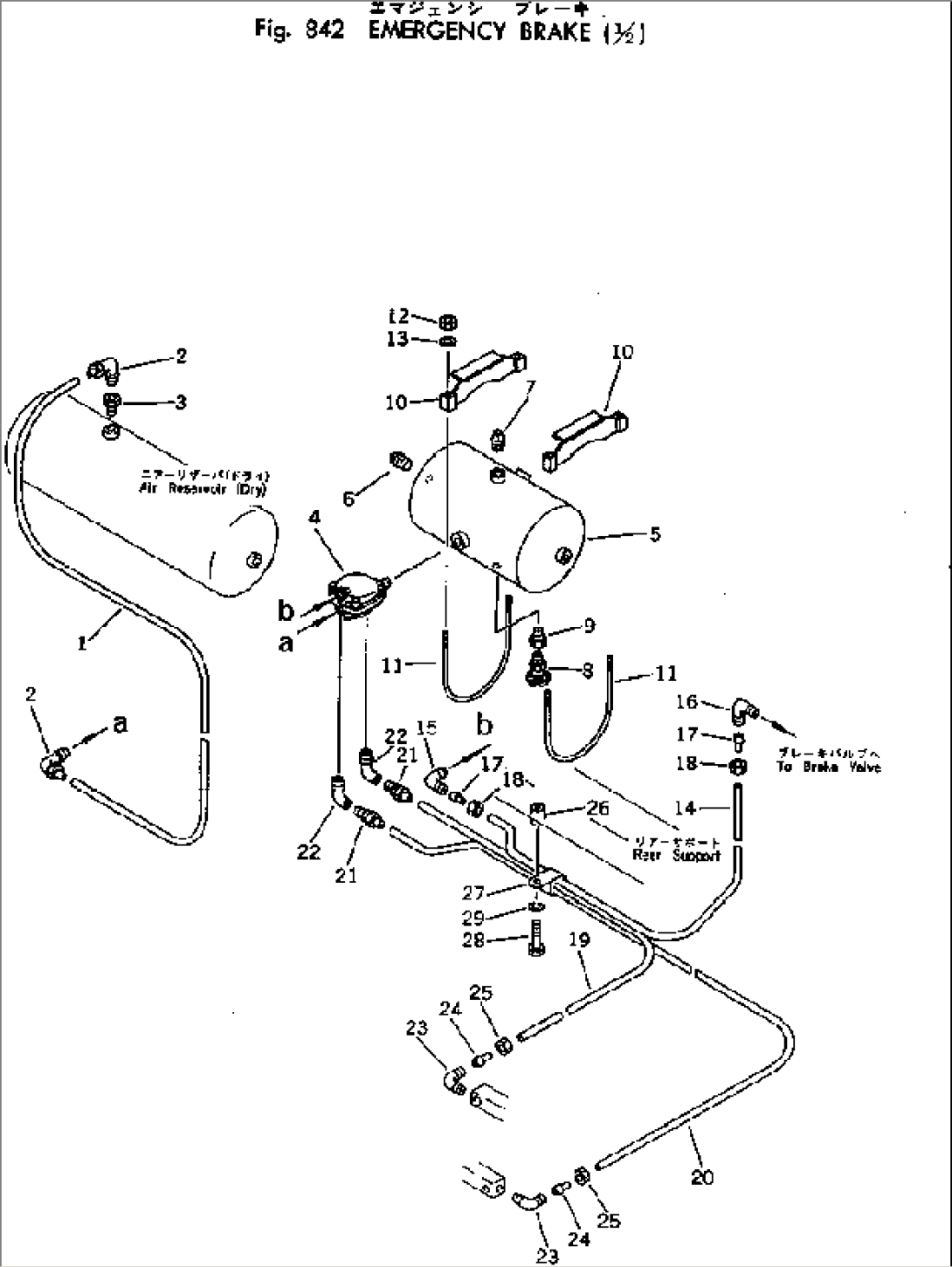

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 07822-00827 | TUBE | 1002- | |
| 2 | 281-35-19540 | ELBOW | 1002- | |
| 3 | 07326-10402 | ADAPTER | 1002- | |
| 4 | 567-35-11201 | RELAY VALVE ASS'Y | 1002- | |
| 5 | 490-43-15130 | TANK | 1002- | |
| 6 | 07042-00415 | PLUG | 1002- | |
| 7 | 07042-00211 | PLUG | 1002- | |
| 8 | 565-44-12700 | VALVE ASS'Y | 1002- | |
| 9 | 07326-20402 | BUSHING | 1002- | |
| 10 | 567-95-29110 | BRACKET | 1002- | |
| 11 | 287-35-11410 | U-BOLT | 1002- | |
| 12 | 01598-00809 | NUT | 1002- | |
| 13 | 01643-30823 | WASHER | 1002- | |
| 14 | 07822-00653 | TUBE | 1002- | |
| 15 | 07834-00613 | ELBOW | 1002- | |
| 16 | 07834-00617 | ELBOW | 1002- | |
| 17 | 07831-00612 | SLEEVE | 1002- | |
| 18 | 07832-00614 | NUT | 1002- | |
| 19 | 07822-00832 | TUBE | 1002- | |
| 20 | 07822-00831 | TUBE | 1002- | |
| 21 | 281-35-19590 | CONNECTOR | 1002- | |
| 22 | 07323-30200 | ELBOW | 1002- | |
| 23 | 07834-00817 | ELBOW | 1002- | |
| 24 | 07831-00813 | SLEEVE | 1002- | |
| 25 | 07832-00817 | NUT | 1002- | |
| 26 | 01571-01016 | SEAT | 1002- | |
| 27 | 566-16-11560 | CLIP | 1002- | |
| 28 | 01010-51020 | BOLT | 1002- | |
| 29 | 01602-21030 | WASHER | 1002- |
