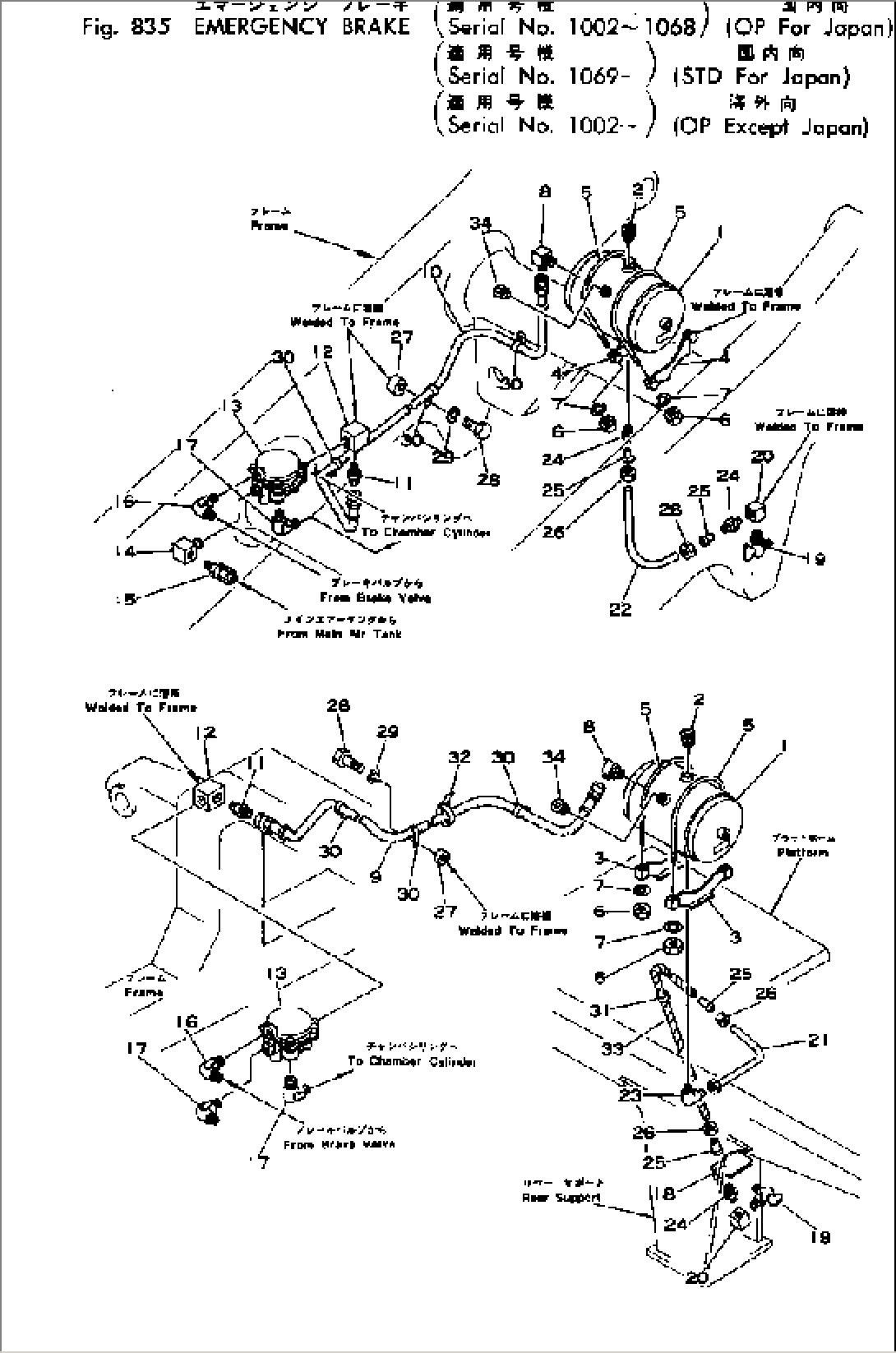

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 490-43-15130 | TANK | 1002- | |
| 2 | 07043-20617 | PLUG | 1002- | |
| 3 | 569-95-11710 | BRACKET | 1002- | |
| 4 | 569-95-11720 | BRACKET | 1002- | |
| 5 | 287-35-11410 | U-BOLT | 1002- | |
| 6 | 01598-00809 | NUT | 1002- | |
| 7 | 01643-30823 | WASHER | 1002- | |
| 8 | 287-04-11120 | ELBOW | 1002- | |
| 9 | 07102-20529 | HOSE | 1002- | |
| 10 | 07102-20520 | HOSE | 1002- | |
| 11 | 482-09-31910 | NIPPLE | 1002- | |
| 12 | 413-44-12410 | JOINT | 1002- | |
| 13 | (567-35-11201) | RELAY VALVE ASS'Y | 1002- | |
| 14 | 566-95-23140 | ELBOW | 1002- | |
| 15 | 411-44-11670 | CONNECTOR | 1002- | |
| 16 | 281-35-19340 | ELBOW | 1002- | |
| 17 | 281-35-19540 | ELBOW | 1002- | |
| 18 | 569-95-11730 | PLATE | 1002- | |
| 19 | 500-44-14140 | VALVE | 1002- | |
| 20 | 565-46-10510 | JOINT | 1002- | |
| 21 | 07822-00411 | TUBE | 1002- | |
| 22 | 07822-00404 | TUBE | 1002- | |
| 23 | 07834-00410 | ELBOW | 1002- | |
| 24 | 07836-00410 | CONNECTOR | 1002- | |
| 25 | 07831-00411 | SLEEVE | 1002- | |
| 26 | 07832-00410 | NUT | 1002- | |
| 27 | 01571-01016 | SEAT | 1002- | |
| 28 | 01010-51016 | BOLT | 1002- | |
| 29 | 01602-21030 | WASHER | 1002- | |
| 30 | 08036-22514 | CLIP | 1002- | |
| 31 | 08036-10610 | CLIP | 1002- | |
| 32 | 08034-00519 | BAND | 1002- | |
| 33 | 281-04-15440 | TUBE | 1002- | |
| 34 | 07043-20415 | PLUG | 1002- |
