| Item | Part No. | Part Name | Qty | Serial No. |

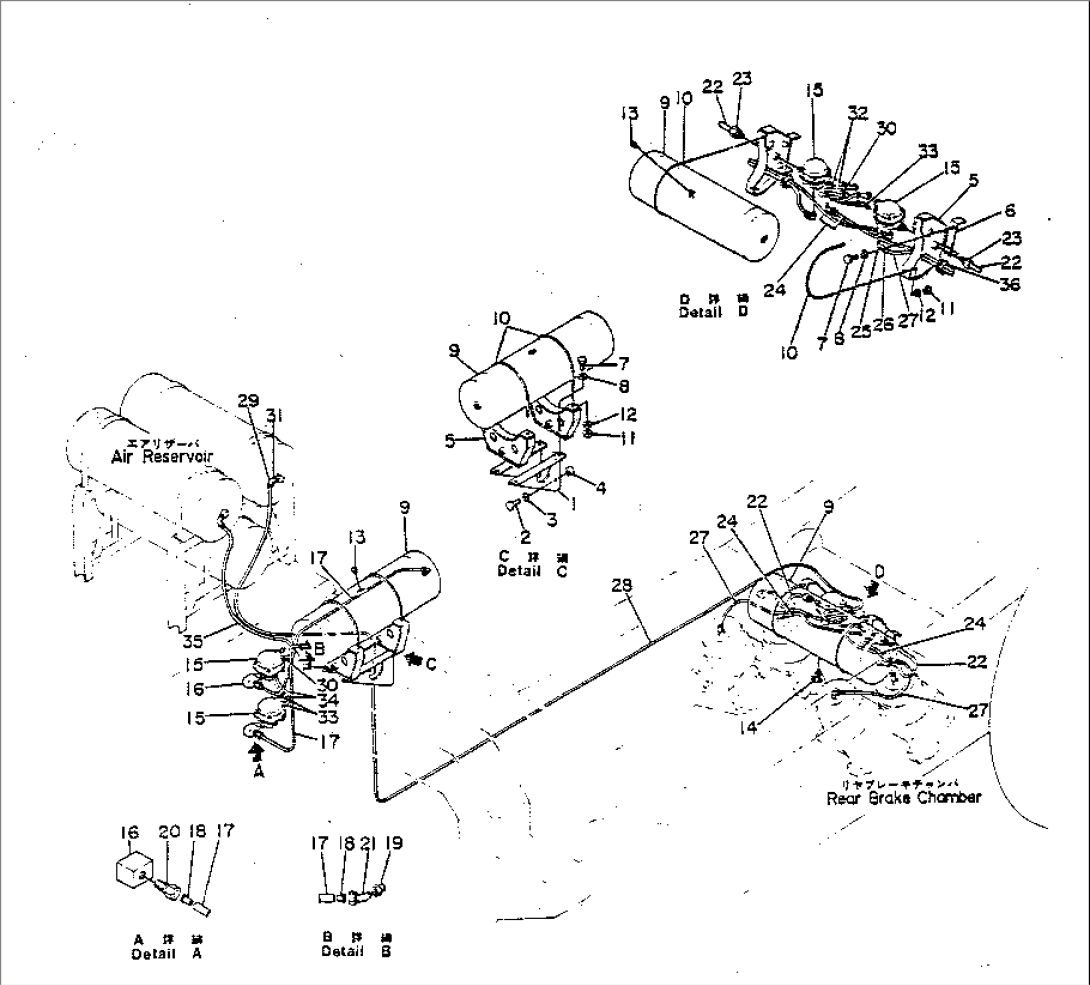

| 568-35-16000 | BRAKE ASS'Y | 1002- | ||
| 1 | 568-35-16110 | BRACKET | 1002- | |
| 2 | 01010-51225 | BOLT | 1002- | |
| 3 | 01602-21236 | WASHER | 1002- | |
| 4 | 01571-01218 | SEAT | 1002- | |
| 5 | 568-35-16131 | BRACKET | 1002- | |
| 6 | 568-35-16140 | BRACKET | 1002- | |
| 7 | 01010-51225 | BOLT | 1002- | |
| 8 | 01602-21236 | WASHER | 1002- | |
| 9 | 411-44-12111 | RESERVOIR | 1002- | |
| 10 | 281-35-11320 | U-BOLT | 1002- | |
| 11 | 01598-00809 | NUT | 1002- | |
| 12 | 01643-20823 | WASHER | 1002- | |
| 13 | 07042-00415 | PLUG | 1002- | |
| 14 | 500-44-14140 | VALVE | 1002- | |
| 15 | (567-35-11201) | RELAY VALVE ASS'Y | 1002- | |
| 16 | 413-44-12410 | JOINT | 1002- | |
| 17 | 568-35-16170 | TUBE | 1002- | |
| 18 | 411-44-15380 | INSERT | 1002- | |
| 19 | 07326-10403 | ADAPTER | 1002- | |
| 20 | 411-44-15160 | JOINT | 1002- | |
| 21 | 411-44-15230 | ELBOW | 1002- | |
| 22 | 07822-00805 | TUBE | 1002- | |
| 23 | 411-44-11860 | CONNECTOR | 1002- | |
| 24 | 07822-00807 | TUBE | 1002- | |
| 25 | 07323-30200 | ELBOW | 1002- | |
| 26 | 281-35-19590 | CONNECTOR | 1055- | |
| 26 | \0\568-35-16150 | CONNECTOR | 1002-1054 | |
| 27 | 07822-00810 | TUBE | 1002- | |
| 28 | 07822-00660 | TUBE | 1002- | |
| 29 | 281-35-19330 | ELBOW | 1002- | |
| 30 | 285-35-12760 | TEE | 1002- | |
| 31 | 07326-10403 | ADAPTER | 1002- | |
| 32 | 07822-00605 | TUBE | 1002- | |
| 33 | 281-35-19340 | ELBOW | 1002- | |
| 34 | 07822-00604 | TUBE | 1002- | |
| 35 | 07822-00610 | TUBE | 1002- | |
| 36 | 08037-03614 | GROMMET | 1002- |
