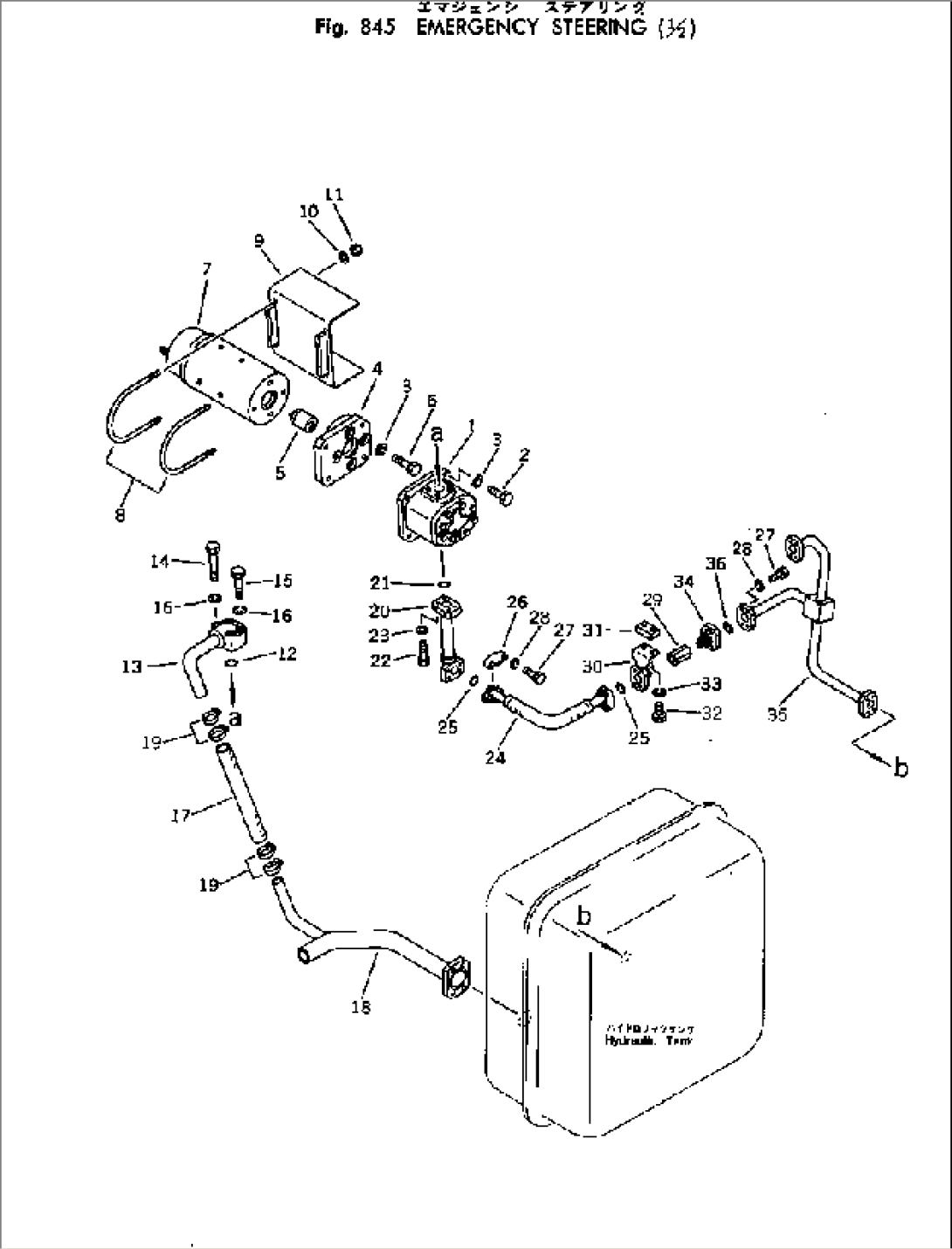

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 07423-66200 | PUMP ASS'Y | 1002- | |
| 2 | 01010-51035 | BOLT | 1002- | |
| 3 | 01602-21030 | WASHER | 1002- | |
| 4 | 566-95-15140 | BRACKET | 1002- | |
| 5 | 566-95-15130 | JOINT | 1002- | |
| 6 | 01010-51040 | BOLT | 1002- | |
| 7 | 566-95-15111 | MOTOR ASS'Y | 1002- | |
| 8 | 566-95-15160 | U-BOLT | 1002- | |
| 9 | 567-95-26110 | BRACKET | 1002- | |
| 10 | 01643-31032 | WASHER | 1002- | |
| 11 | 01599-01010 | NUT | 1002- | |
| 12 | 07000-13035 | O-RING | 1002- | |
| 13 | 567-95-26240 | TUBE | 1002- | |
| 14 | 01010-51060 | BOLT | 1002- | |
| 15 | 01010-51050 | BOLT | 1002- | |
| 16 | 01602-21030 | WASHER | 1002- | |
| 17 | 07260-22632 | HOSE | 1002- | |
| 18 | 567-95-26230 | TUBE | 1002- | |
| 19 | 07281-10419 | CLAMP | 1002- | |
| 20 | 567-95-26220 | TUBE | 1002- | |
| 21 | 07000-13030 | O-RING | 1002- | |
| 22 | 01010-50850 | BOLT | 1002- | |
| 23 | 01602-20825 | WASHER | 1002- | |
| 24 | 07119-40504 | HOSE | 1002- | |
| 25 | 07000-13022 | O-RING | 1002- | |
| 26 | 07371-00500 | FLANGE | 1002- | |
| 27 | 07372-20830 | BOLT | 1002- | |
| 28 | 01602-20825 | WASHER | 1002- | |
| 29 | 567-95-11330 | VALVE,CHECK | 1002- | |
| 30 | 567-95-26260 | FLANGE | 1002- | |
| 31 | 01573-20205 | SEAT | 1002- | |
| 32 | 01010-51020 | BOLT | 1002- | |
| 33 | 01602-21030 | WASHER | 1002- | |
| 34 | 566-95-15270 | FLANGE | 1002- | |
| 35 | 567-95-26210 | TUBE | 1002- | |
| 36 | 07000-13022 | O-RING | 1002- |
