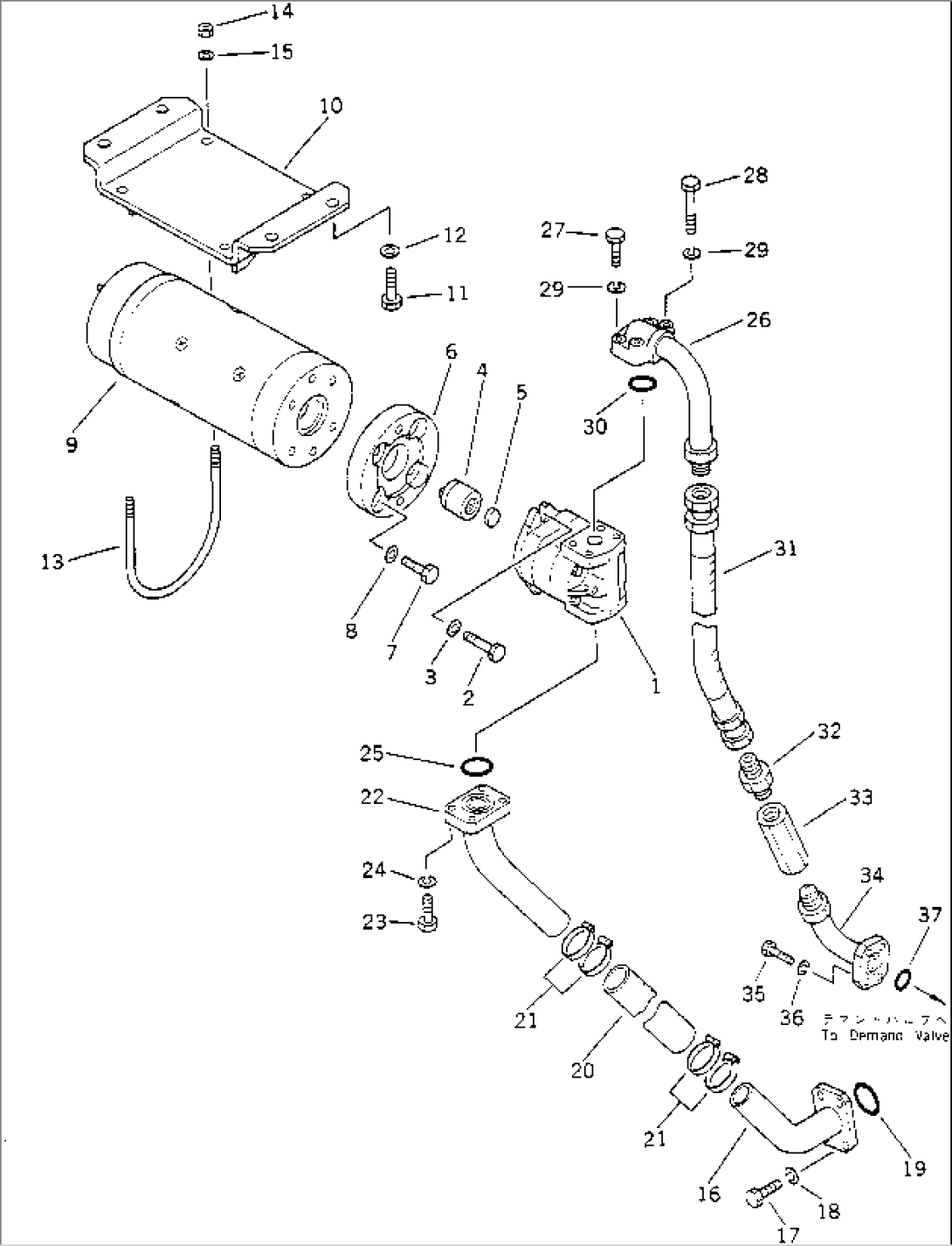

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | (705-11-23010) | PUMP ASS'Y | 1501- | |
| 2 | 01010-51030 | BOLT | 1501- | |
| 3 | 01643-31032 | WASHER | 1501- | |
| 4 | 566-61-47620 | JOINT | 1501- | |
| 5 | 566-61-47630 | SPACER | 1501- | |
| 6 | 566-61-47610 | FLANGE | 1501- | |
| 7 | 01010-51020 | BOLT | 1501- | |
| 8 | 01643-31032 | WASHER | 1501- | |
| 9 | 566-95-15111 | MOTOR ASS'Y | 1501- | |
| 10 | 566-61-47520 | BRACKET | 1501- | |
| 11 | 01010-51225 | BOLT | 1501- | |
| 12 | 01643-31232 | WASHER | 1501- | |
| 13 | 566-95-15160 | U-BOLT | 1501- | |
| 14 | 01582-11008 | NUT | 1501- | |
| 15 | 01643-31032 | WASHER | 1501- | |
| 16 | 566-61-47111 | TUBE | 1501- | |
| 17 | 01010-51025 | BOLT | 1501- | |
| 18 | 01602-21030 | WASHER,SPRING | 1501- | |
| 19 | 07000-23042 | O-RING | 1501- | |
| 20 | 07260-23218 | HOSE | 1501- | |
| 21 | 07281-10549 | CLAMP | 1501- | |
| 22 | 566-61-47122 | TUBE | 1501- | |
| 23 | 01010-51035 | BOLT | 1501- | |
| 24 | 01602-21030 | WASHER,SPRING | 1501- | |
| 25 | 07000-23032 | O-RING | 1501- | |
| 26 | 566-61-47131 | TUBE | 1501- | |
| 27 | 01010-50835 | BOLT | 1501- | |
| 28 | 01010-50850 | BOLT | 1501- | |
| 29 | 01602-20825 | WASHER,SPRING | 1501- | |
| 30 | 07000-23030 | O-RING | 1501- | |
| 31 | 07121-00405 | HOSE | 1501- | |
| 32 | 07238-00422 | CONNECTOR | 1501- | |
| 33 | 567-95-11330 | VALVE,CHECK | 1501- | |
| 34 | 566-61-47140 | TUBE | 1501- | |
| 35 | 01010-50830 | BOLT | 1501- | |
| 36 | 01602-20825 | WASHER,SPRING | 1501- | |
| 37 | 07000-23022 | O-RING | 1501- |
