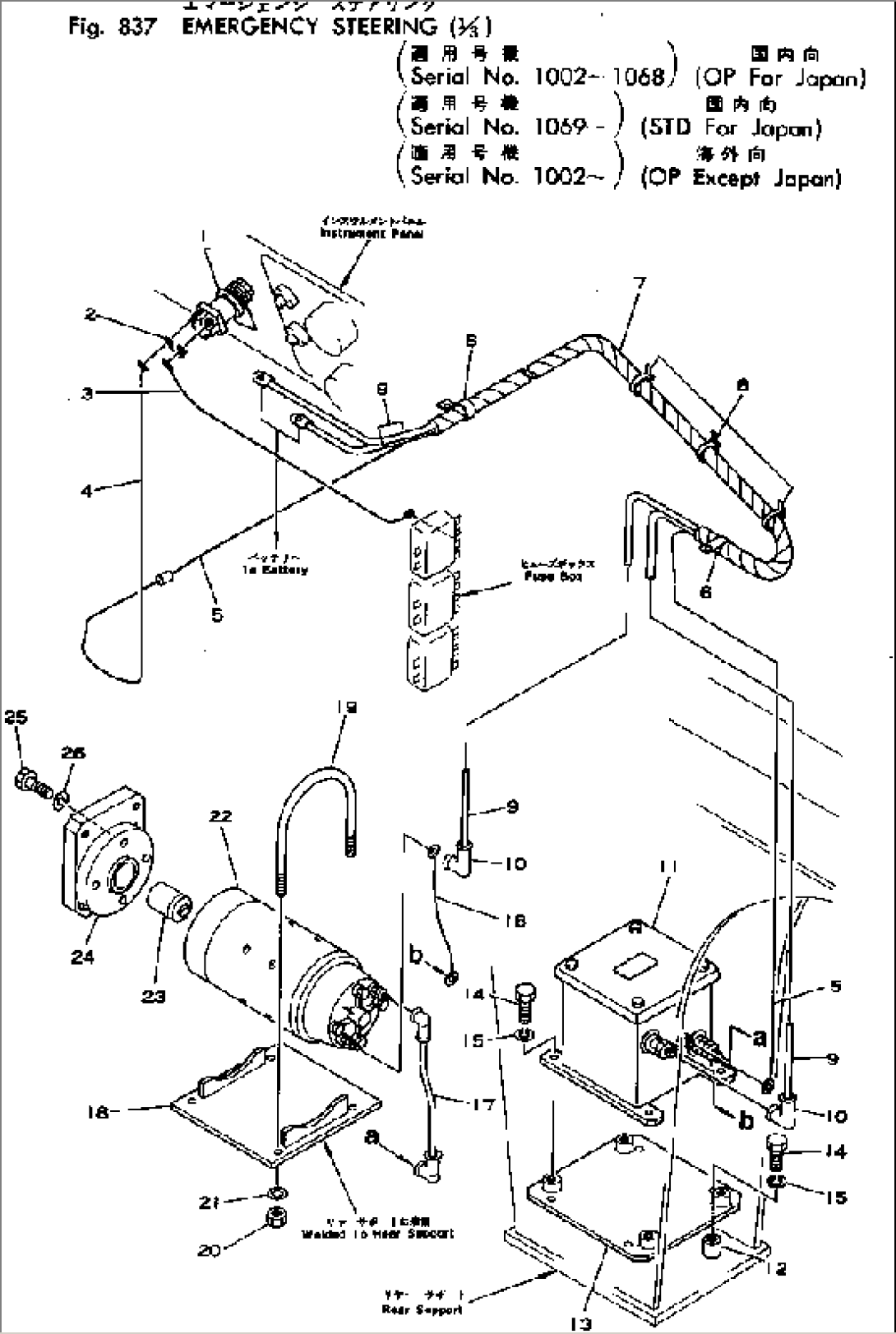

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 568-95-11360 | SWITCH | 1002- | |
| 2 | 08029-02510 | CABLE | 1002- | |
| 3 | 568-95-11340 | CABLE | 1002- | |
| 4 | 568-95-11540 | CABLE | 1002- | |
| 5 | 568-95-11530 | CABLE | 1002- | |
| 6 | 08036-03014 | CLIP | 1002- | |
| 7 | 565-04-11420 | TUBE | 1002- | |
| 8 | 08034-00519 | BAND | 1002- | |
| 9 | 566-06-12320 | CABLE | 1002- | |
| 10 | 08038-00035 | CAP | 1002- | |
| 11 | 568-95-11411 | SWITCH | 1002- | |
| 12 | 01571-01016 | SEAT | 1002- | |
| 13 | 569-95-11410 | SEAT | 1002- | |
| 14 | 01010-51020 | BOLT | 1002- | |
| 15 | 01602-21030 | WASHER | 1002- | |
| 16 | 568-95-11550 | CABLE | 1002- | |
| 17 | 480-07-16640 | CABLE | 1002- | |
| 18 | 569-95-11130 | BRACKET | 1002- | |
| 19 | 566-95-15160 | U-BOLT | 1002- | |
| 20 | 01599-01011 | NUT | 1002- | |
| 21 | 01643-31032 | WASHER | 1002- | |
| 22 | 566-95-15111 | MOTOR ASS'Y | 1002- | |
| 23 | 566-95-15130 | JOINT | 1002- | |
| 24 | 566-95-15140 | BRACKET | 1002- | |
| 25 | 01010-51040 | BOLT | 1002- | |
| 26 | 01602-21030 | WASHER | 1002- |
