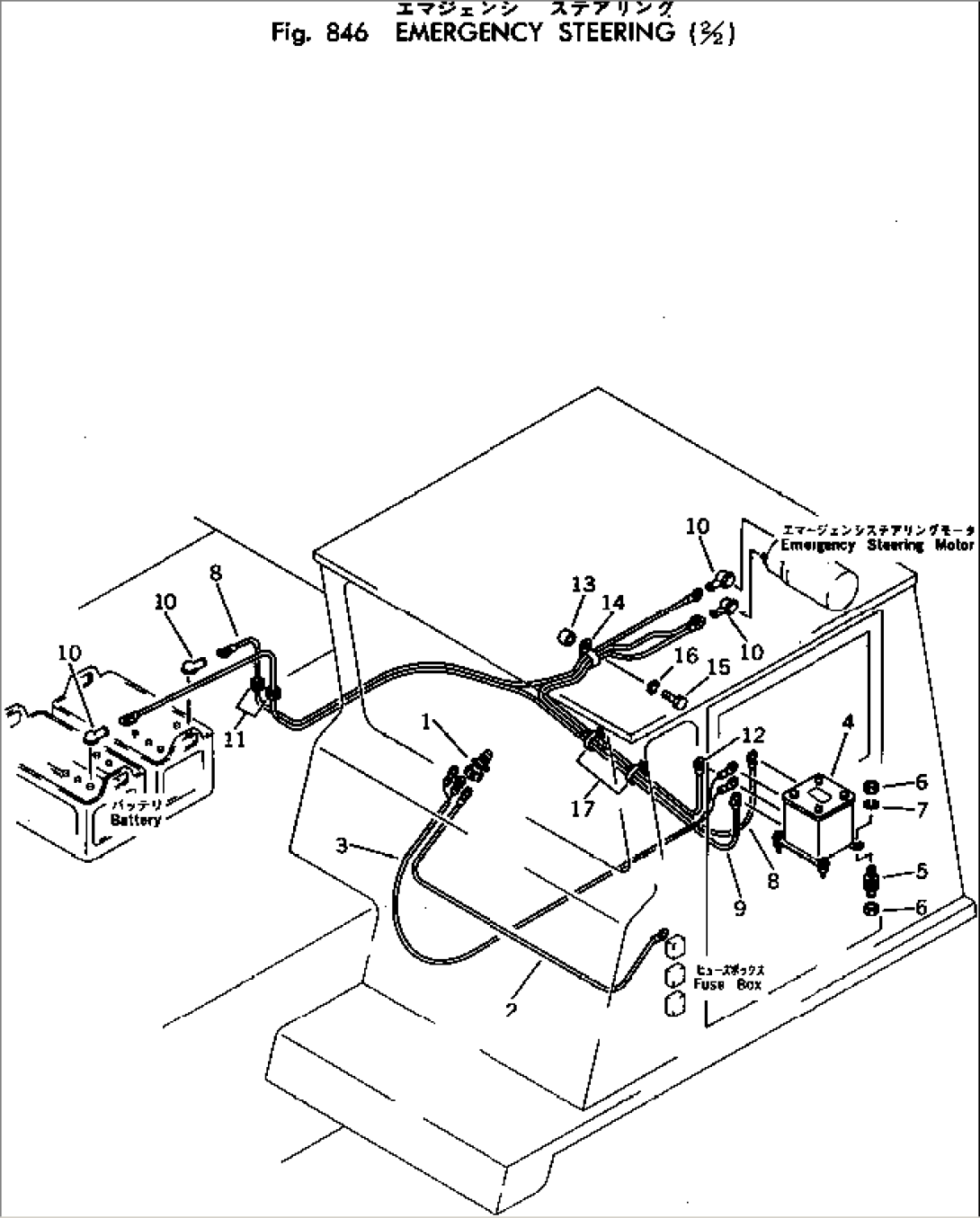

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 568-95-11361 | SWITCH | 1002- | |
| 2 | 568-95-11340 | CABLE | 1002- | |
| 3 | 567-95-26310 | CABLE | 1002- | |
| 4 | 568-95-11411 | SWITCH | 1002- | |
| 5 | 145-06-32210 | PAD | 1002- | |
| 6 | 01580-21008 | NUT | 1002- | |
| 7 | 01602-21030 | WASHER | 1002- | |
| 8 | 287-06-11211 | CABLE | 1002- | |
| 9 | 596-06-12320 | CABLE | 1002- | |
| 10 | 08038-00035 | CAP | 1002- | |
| 11 | 08037-02512 | GROMMET | 1002- | |
| 12 | 567-95-26320 | CABLE | 1002- | |
| 13 | 01571-01218 | SEAT | 1002- | |
| 14 | 08036-03014 | CLIP | 1002- | |
| 15 | 01010-51220 | BOLT | 1002- | |
| 16 | 01602-21236 | WASHER | 1002- | |
| 17 | 08034-00823 | BAND | 1002- |
