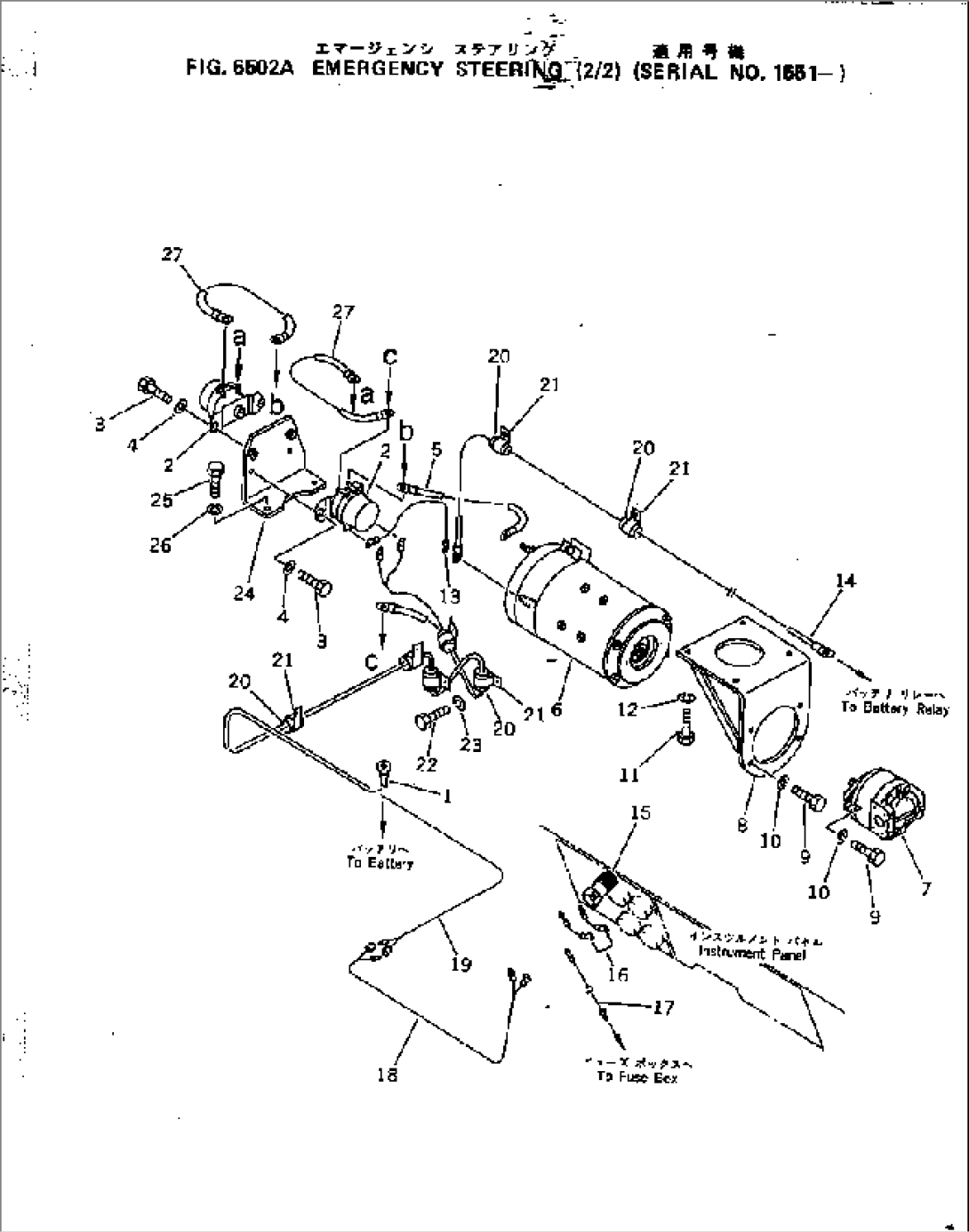

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 561-06-41190 | WIRE | 1551- | |
| 2 | 561-06-61510 | RELAY | 1551- | |
| 3 | 01010-50830 | BOLT | 1551- | |
| 4 | 01643-30823 | WASHER | 1551- | |
| 5 | 566-61-47720 | WIRE | 1501- | |
| 6 | 581-95-28911 | MOTOR ASS'Y | 1501- | |
| 7 | (705-11-28010) | PUMP ASS'Y | 1501- | |
| 8 | 561-40-35130 | BRACKET | 1501- | |
| 9 | 01010-51030 | BOLT | 1501- | |
| 10 | 01602-21030 | WASHER | 1501- | |
| 11 | 01010-51230 | BOLT | 1501- | |
| 12 | 01602-21236 | WASHER | 1501- | |
| 13 | 561-40-45130 | CABLE | 1551- | |
| 14 | 287-06-11211 | CABLE | 1501- | |
| 15 | 568-95-11361 | SWITCH | 1501- | |
| 15 | 08111-02430 | BULB, 3W | 1501- | |
| 16 | 565-06-11450 | CABLE | 1501- | |
| 17 | 568-95-11340 | CABLE,(FOR CLUSTER GAUGE) | 1501- | |
| 17 | 561-06-43280 | CABLE,(FOR MONITOR PANEL) | 1501- | |
| 18 | 561-40-45120 | CABLE | 1501- | |
| 19 | 561-40-45140 | WIRE ASS'Y | 1551- | |
| 20 | 566-06-41290 | INSULATOR | 1501- | |
| 21 | 08036-02514 | CLIP | 1551- | |
| 22 | 01010-51016 | BOLT | 1551- | |
| 23 | 01602-21030 | WASHER | 1551- | |
| 24 | 561-40-45150 | BRACKET | 1551- | |
| 25 | 01010-51025 | BOLT | 1551- | |
| 26 | 01602-21030 | WASHER | 1551- | |
| 27 | 08028-15055 | WIRE, 550MM | 1551- |
