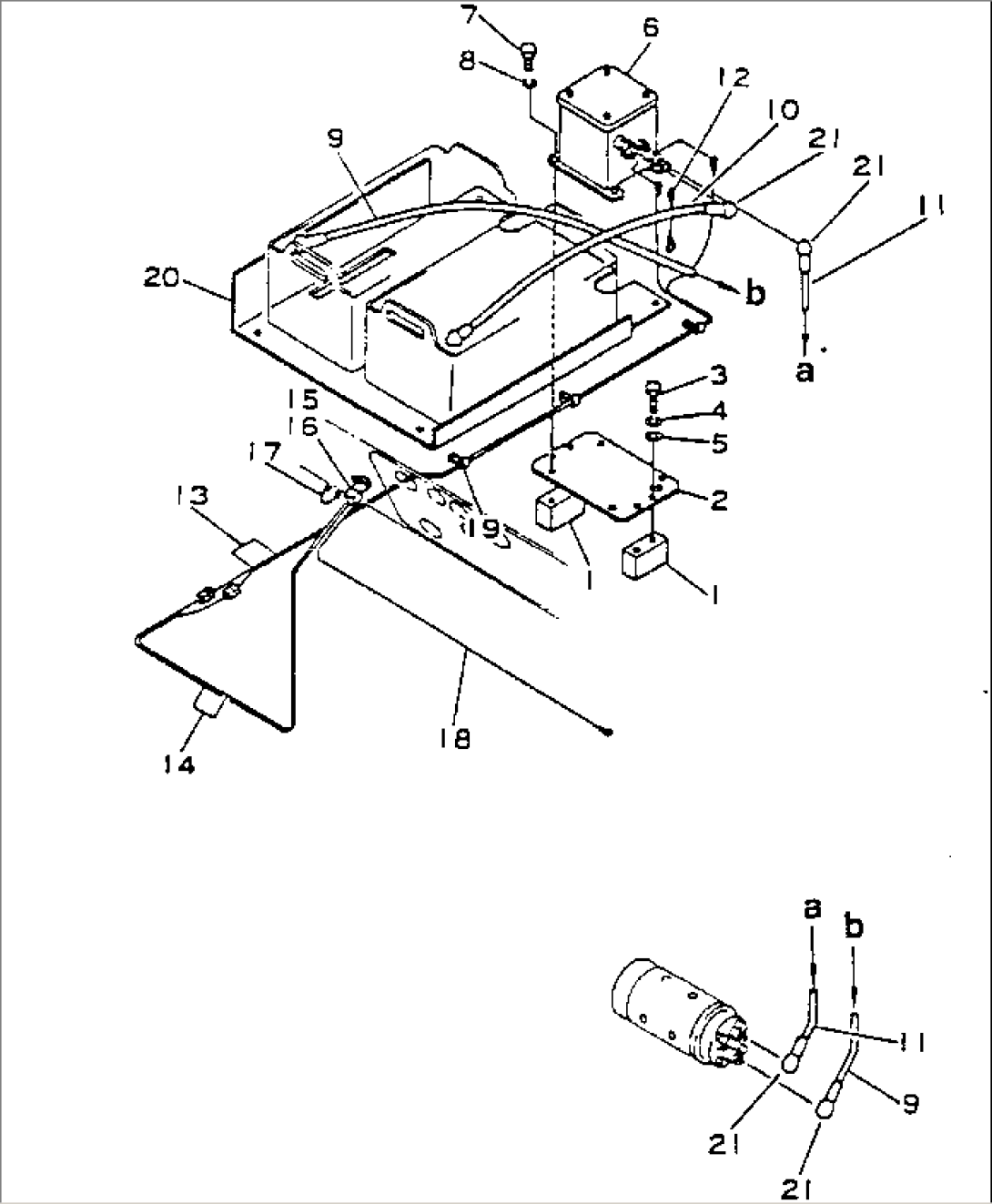

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 566-95-15170 | SEAT | 1002- | |
| 2 | 566-95-15350 | PLATE | 1002- | |
| 3 | 01010-51230 | BOLT | 1002- | |
| 4 | 01602-21236 | WASHER | 1002- | |
| 5 | 01643-31232 | WASHER | 1002- | |
| 6 | 568-95-11411 | SWITCH | 1002- | |
| 7 | 01010-51030 | BOLT | 1002- | |
| 8 | 01602-21030 | WASHER | 1002- | |
| 9 | 568-95-11510 | CABLE | 1002- | |
| 10 | 568-06-12220 | CABLE | 1002- | |
| 11 | 568-95-11330 | CABLE | 1002- | |
| 12 | 568-95-11550 | CABLE | 1002- | |
| 13 | 568-95-11531 | CABLE | 1136- | |
| 13 | 568-95-11530 | CABLE | 1002-1135 | |
| 14 | 568-95-11541 | CABLE | 1136- | |
| 14 | 568-95-11540 | CABLE | 1002-1135 | |
| 15 | 568-95-11361 | SWITCH | 1136- | |
| 15 | 568-95-11360 | SWITCH | 1002-1135 | |
| 16 | 565-06-11450 | CABLE | 1002- | |
| 17 | 08029-02510 | CABLE | 1002- | |
| 18 | 568-95-11340 | CABLE | 1002- | |
| 19 | 08035-01510 | CLIP | 1002- | |
| 20 | 566-95-15180 | BRACKET | 1002- | |
| 21 | 08038-00035 | CAP | 1002- |
