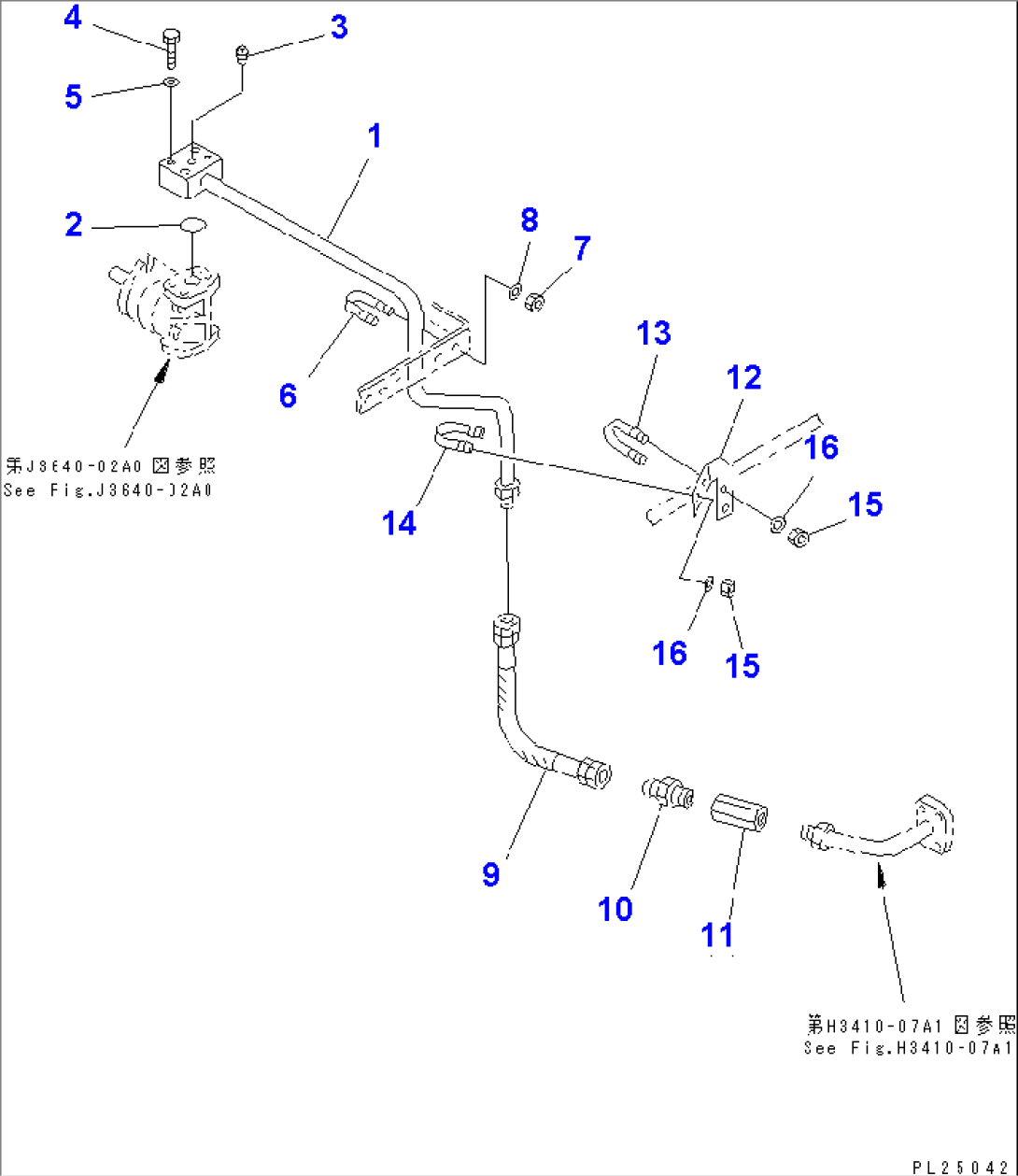

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 567-40-74230 | TUBE | 1001-1200 | |
| 2 | 07000-F3030 | O-RING | 1001-1200 | |
| 3 | 07042-20108 | PLUG | 1001-1200 | |
| 4 | 01010-80855 | BOLT | 1001-1200 | |
| 5 | 01643-30823 | WASHER | 1001-1200 | |
| 6 | 07283-22236 | CLIP | 1001-1200 | |
| 7 | 01599-01011 | NUT | 1001-1200 | |
| 8 | 01643-31032 | WASHER | 1001-1200 | |
| 9 | 07086-40403 | HOSE | 1001-1200 | |
| 10 | 07238-00422 | CONNECTOR | 1001-1200 | |
| 11 | 567-95-11330 | VALVE | 1001-1200 | |
| 12 | 567-40-74320 | BRACKET | 1001-1200 | |
| 13 | 07283-23442 | CLIP | 1001-1200 | |
| 14 | 07283-22236 | CLIP | 1001-1200 | |
| 15 | 01599-01011 | NUT | 1001-1200 | |
| 16 | 01643-31032 | WASHER | 1001-1200 |
