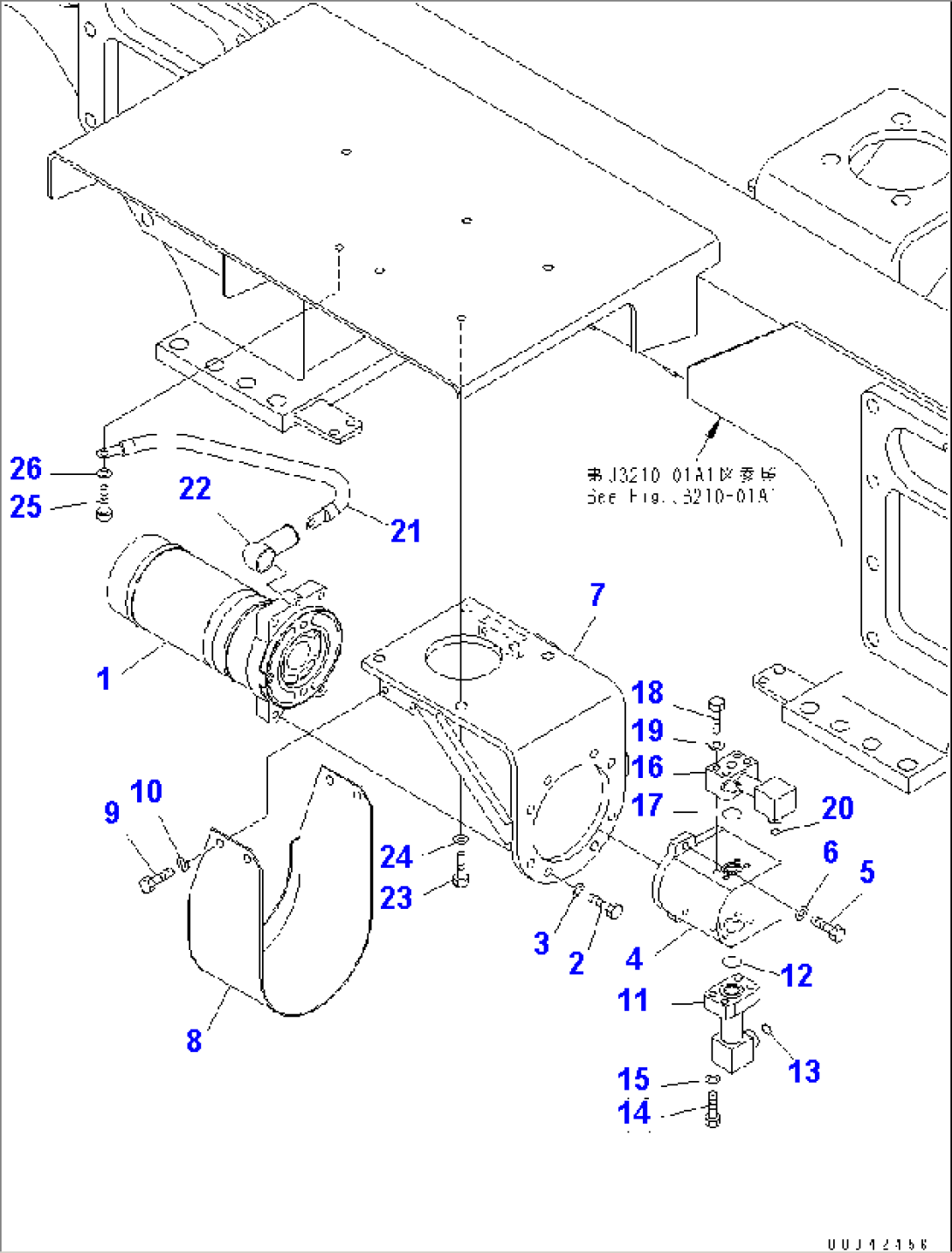

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 421-62-32700 | MOTOR ASS'Y | 3001- | |
| 2 | 01010-81030 | BOLT | 3001- | |
| 3 | 01643-31032 | WASHER | 3001- | |
| 4 | (705-40-01420) | PUMP ASS'Y | 3001- | |
| 5 | 01010-81030 | BOLT | 3001- | |
| 6 | 01643-31032 | WASHER | 3001- | |
| 7 | 566-89-6F420 | BRACKET | 3001- | |
| 8 | 566-89-6F470 | COVER | 3001- | |
| 9 | 01010-81020 | BOLT | 3001- | |
| 10 | 01643-31032 | WASHER | 3001- | |
| 11 | 566-40-81120 | TUBE | 3001- | |
| 12 | 07000-F3022 | O-RING | 3001- | |
| 13 | 02896-21015 | O-RING | 3001- | |
| 14 | 01010-80835 | BOLT | 3001- | |
| 15 | 01643-50823 | WASHER | 3001- | |
| 16 | 569-40-85430 | TUBE | 3001- | |
| 17 | 07000-F2021 | O-RING | 3001- | |
| 18 | 01010-80850 | BOLT | 3001- | |
| 19 | 01643-50823 | WASHER | 3001- | |
| 20 | 02896-21012 | O-RING | 3001- | |
| 21 | 08028-45045 | CABLE, GROUND | 3001- | |
| 22 | 08038-00035 | CAP | 3001- | |
| 23 | 01010-81230 | BOLT | 3001- | |
| 24 | 01643-31232 | WASHER | 3001- | |
| 25 | 01010-81016 | BOLT | 3001- | |
| 26 | 01643-31032 | WASHER | 3001- |
