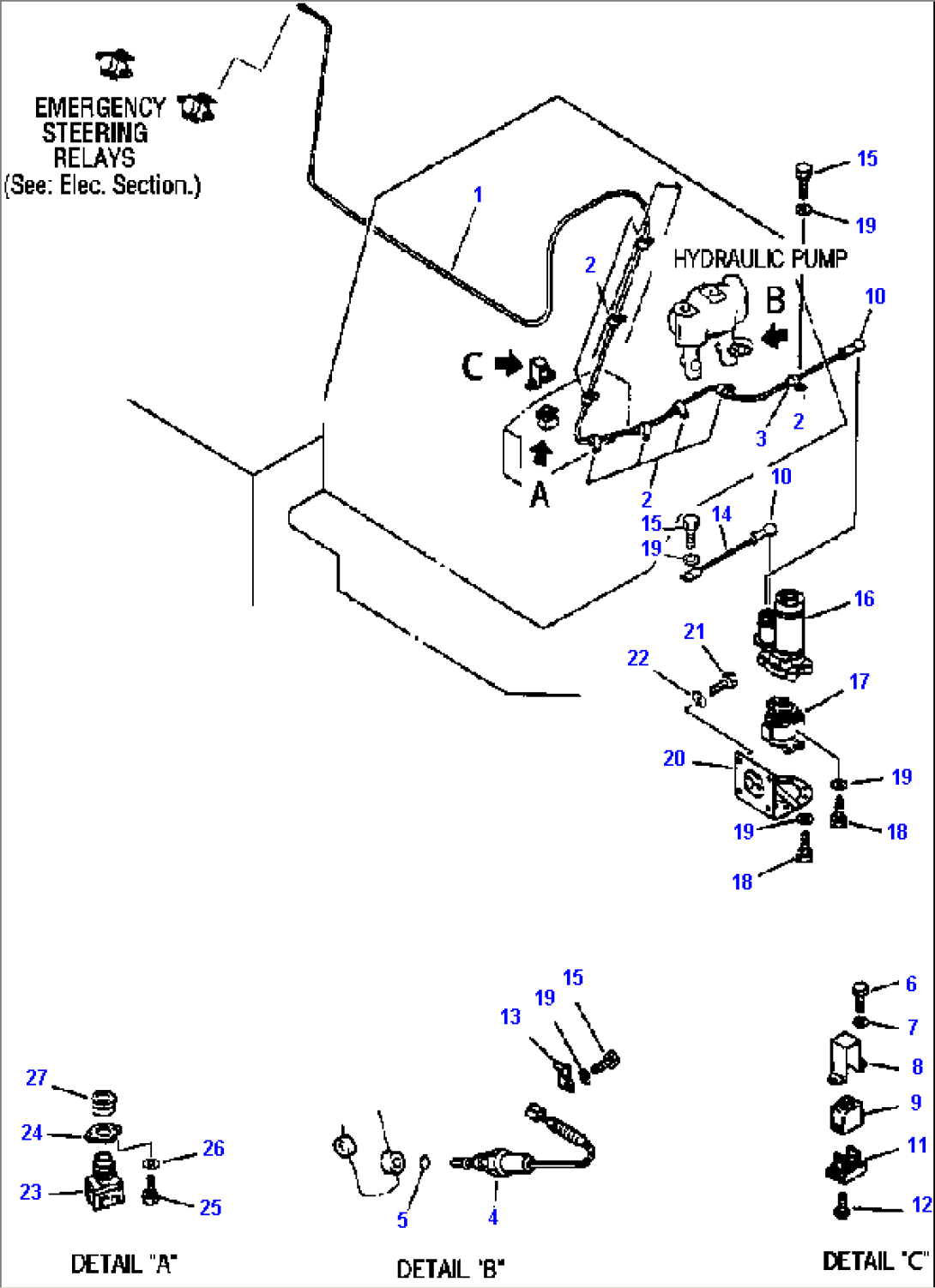

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 561-06-61540 | CABLE | ||
| 2 | 08036-02514 | CLIP | ||
| 3 | 566-06-41290 | INSULATOR | ||
| 4 | 561-40-65322 | SWITCH, FLOW | ||
| 5 | 20D-62-17150 | O-RING | ||
| 6 | 01010-50820 | BOLT | ||
| 7 | 01643-30823 | WASHER | ||
| 8 | 569-40-65540 | COVER | ||
| 9 | 582-06-11810 | TIMER | ||
| 10 | 08038-00035 | CAP | ||
| 11 | 582-06-11820 | SOCKET | ||
| 12 | 01220-30416 | SCREW | ||
| 13 | 08053-01512 | CLIP | ||
| 14 | 08028-45055 | CABLE | ||
| 15 | 01010-51016 | BOLT | ||
| 16 | 561-40-65210 | MOTOR ASSEMBLY (SEE INDEX) | ||
| 17 | 705-11-28010 | PUMP ASSEMBLY (SEE INDEX) | ||
| 18 | 01010-51030 | BOLT | ||
| 19 | 01643-31032 | WASHER | ||
| 20 | 561-40-35130 | BRACKET | ||
| 21 | 01010-51230 | BOLT | ||
| 22 | 01643-31232 | WASHER | ||
| 23 | 568-95-11361 | SWITCH | ||
| 24 | 569-54-64250 | PLATE | ||
| 25 | 01010-50610 | BOLT | ||
| 26 | 01643-30623 | WASHER | ||
| 27 | 569-40-65530 | BUSHING |
