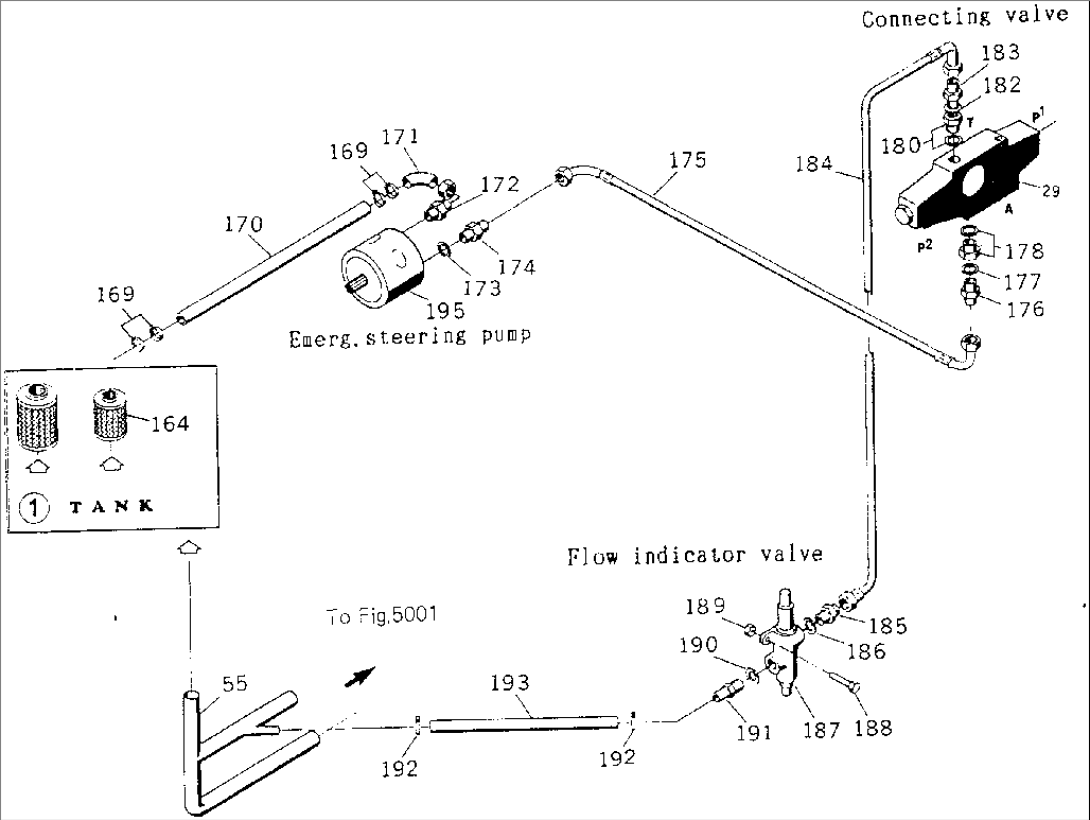

| Item | Part No. | Part Name | Qty | Serial No. |
| 29 | (BW055383) | VALVE ASS'Y | 65336- | |
| 29 | (BW055257) | VALVE ASS'Y,(SEE FIG.5506) | 65226-65335 | |
| 55 | BW021900 | PIPE,RETURN | 65226- | |
| 164 | BW055300 | STRAINER | 65226- | |
| 169 | BW065028 | CLAMP | 65226- | |
| 170 | BW046301 | HOSE | 65901- | |
| 170 | BW033598 | HOSE | 65226-65900 | |
| 171 | BW044563 | ELBOW | 65226- | |
| 172 | BW063589 | CONNECTOR | 65226- | |
| 173 | BW055262 | RING,SEAL | 65226- | |
| 174 | BW044038 | CONNECTOR | 65226- | |
| 175 | BW034137 | HOSE | 65226- | |
| 176 | BW065759 | CONNECTOR | 65226- | |
| 177 | BW066866 | RING,SEAL | 65226- | |
| 178 | BW046173 | CONNECTOR,(WITH O-RING) | 65226- | |
| 180 | BW046175 | CONNECTOR,(WITH O-RING) | 65226- | |
| 182 | BW066870 | RING,SEAL | 65226- | |
| 183 | BW065761 | CONNECTOR | 65226- | |
| 184 | BW032276 | HOSE | 65226- | |
| 185 | BW041714 | CONNECTOR | 65226- | |
| 186 | BW055107 | RING,SEAL | 65226- | |
| 187 | (BW055460) | VALVE ASS'Y,(SEE FIG.5505) | 65226- | |
| 188 | BW061479 | BOLT | 65226- | |
| 189 | BW063038 | NUT | 65226- | |
| 190 | BW055107 | RING,SEAL | 65226- | |
| 191 | BW040910 | JOINT | 65226- | |
| 192 | BW065027 | CLAMP | 65226- | |
| 193 | BW033599 | HOSE | 65226- | |
| 195 | (BW055295) | PUMP ASS'Y | 65226- |
