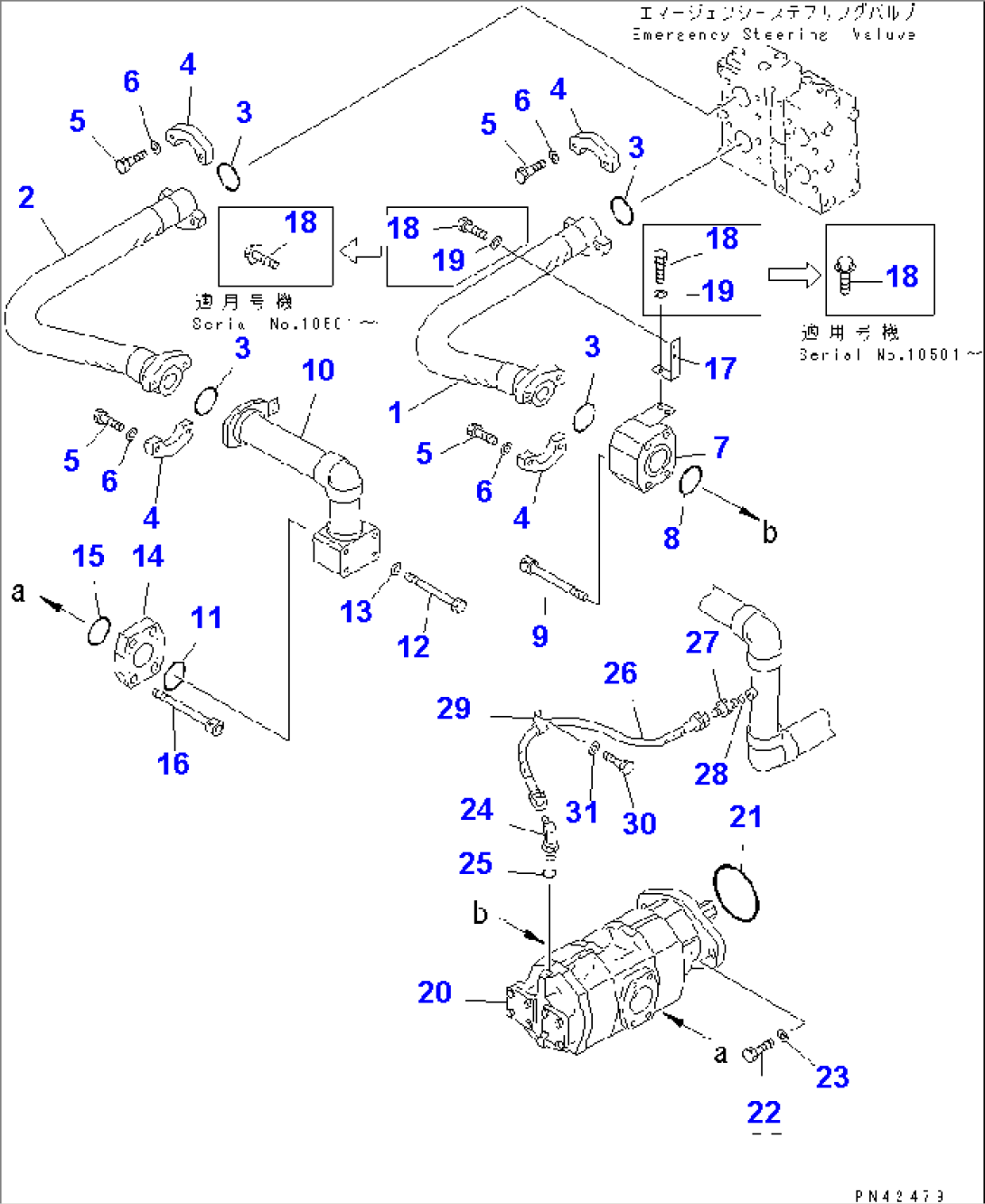

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 427-87-15140 | HOSE | 10001- | |
| 2 | 07122-02013 | HOSE | 10001- | |
| 3 | 07000-F2060 | O-RING | 10054- | |
| \0\07000-12060 | O-RING | 10001-10053 | ||
| 4 | 07371-32076 | FLANGE,SPLIT | 10001- | |
| 5 | 07372-21240 | BOLT | 10001- | |
| 6 | 01643-51232 | WASHER | 10001- | |
| 7 | 427-87-15120 | FLANGE | 10001- | |
| 8 | 07000-F2070 | O-RING | 10054- | |
| \0\07000-12070 | O-RING | 10001-10053 | ||
| 9 | 01252-41280 | BOLT | 10001- | |
| 10 | 427-87-15130 | TUBE | 10001- | |
| 11 | 07000-F2060 | O-RING | 10054- | |
| \0\07000-12060 | O-RING | 10001-10053 | ||
| 12 | 01011-81205 | BOLT | 10001- | |
| 13 | 01643-31232 | WASHER | 10001- | |
| 14 | 427-87-15110 | FLANGE | 10001- | |
| 15 | 07000-F2070 | O-RING | 10054- | |
| \0\07000-12070 | O-RING | 10001-10053 | ||
| 16 | 01252-41235 | BOLT | 10001- | |
| 17 | 427-87-15280 | PLATE | 10001- | |
| 18 | 01435-01025 | BOLT | 10501- | |
| 01010-51025 | BOLT | 10001-10499 | ||
| 19 | 01643-31032 | WASHER | 10001-10499 | |
| 20 | (704-32-30010) | PUMP ASS'Y,(SEE FIG.4801) | 10666- | |
| (\0\704-32-30000) | PUMP ASS'Y,(SEE FIG.4801) | 10001-10665 | ||
| 21 | 07000-F2135 | O-RING | 10054- | |
| \0\07000-02135 | O-RING | 10001-10053 | ||
| 22 | 01010-81650 | BOLT | 10001- | |
| 23 | 01643-31645 | WASHER | 10001- | |
| 24 | 07235-10315 | ELBOW | 10001- | |
| 25 | 07002-22034 | O-RING | 10054- | |
| \0\07002-02034 | O-RING | 10001-10053 | ||
| 26 | 07102-20312 | HOSE | 10001- | |
| 27 | 07230-20315 | UNION | 10001- | |
| 28 | 07002-22034 | O-RING | 10054- | |
| \0\07002-02034 | O-RING | 10001-10053 | ||
| 29 | 08036-21814 | CLIP | 10001- | |
| 30 | 01010-81220 | BOLT | 10001- | |
| 31 | 01643-31232 | WASHER | 10001- |
