| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 07000-12060 | O-RING | 52406- | |
| 2 | 426-875-2510 | HOSE | 52406- | |
| 3 | 07371-32076 | FLANGE,SPLIT | 52406- | |
| 4 | 07372-21240 | BOLT | 52406- | |
| 5 | 01643-51232 | WASHER | 52406- |
- Главная
- Каталог запчастей
- Колесные погрузчики
- Wa600 3 s/n 50001 up
- Hydraulic system
- Emergency steering piping (diverter valve to pump)(#52406 )
Поиск по каталогу

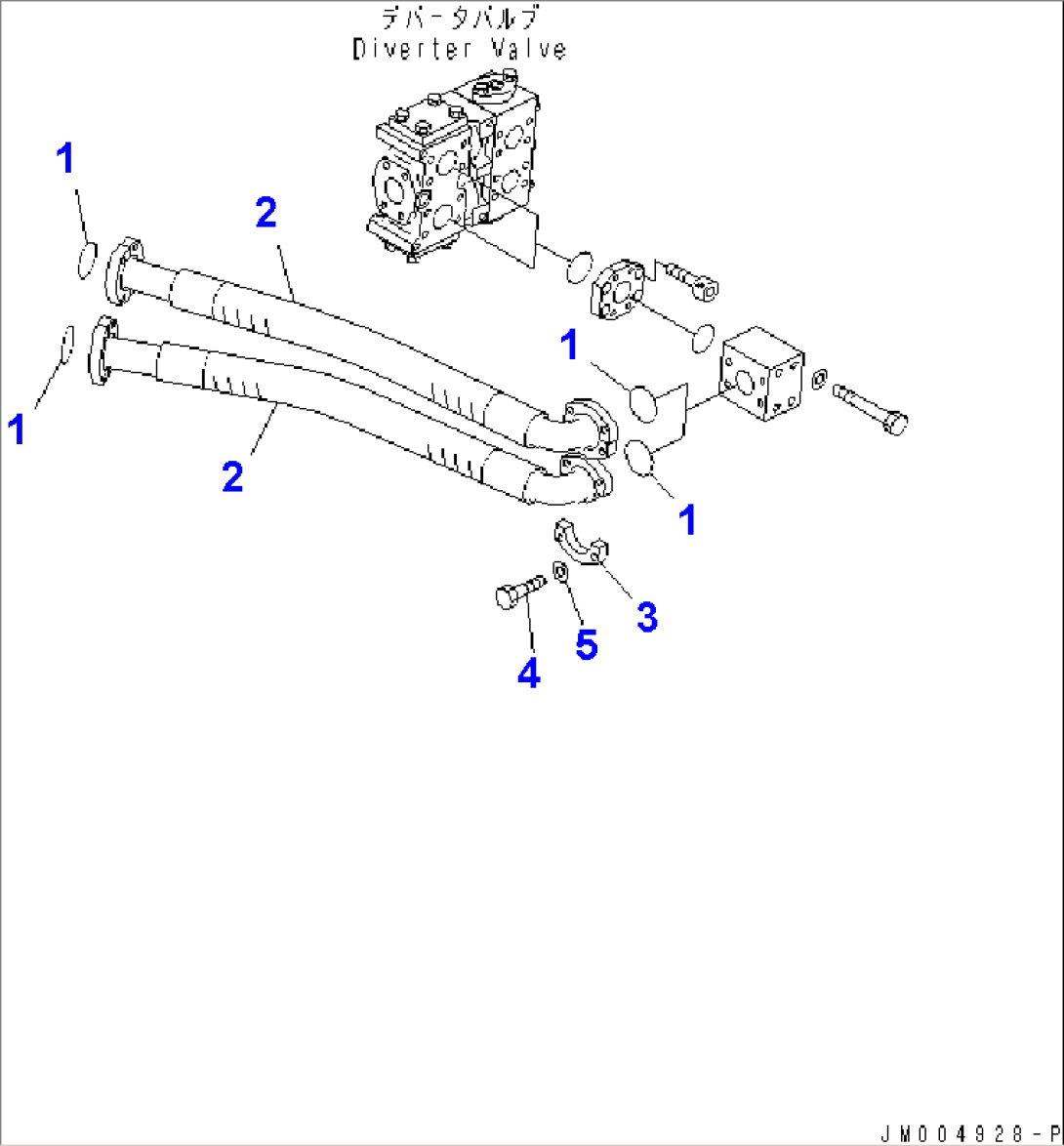

EMERGENCY STEERING PIPING (DIVERTER VALVE TO PUMP)(#52406-)
