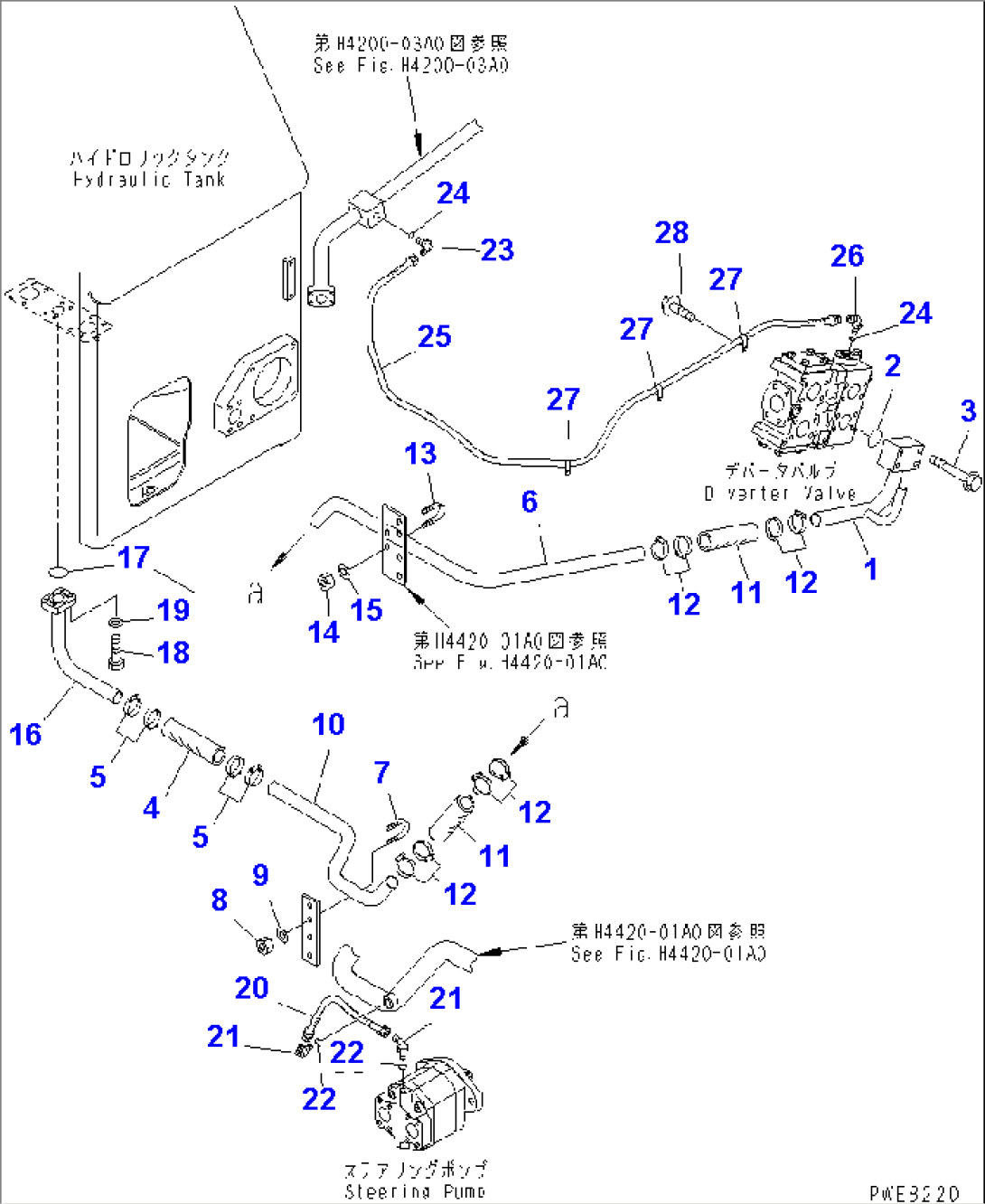

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 428-62-16291 | TUBE | 50001- | |
| 2 | 07000-13050 | O-RING | 50001- | |
| 3 | 01435-01270 | BOLT | 50001- | |
| 4 | 07260-23218 | HOSE | 50001- | |
| 5 | 07281-00549 | CLAMP | 50001- | |
| 6 | 428-62-16312 | TUBE | 50001- | |
| 7 | 07283-33442 | CLIP | 50001- | |
| 8 | 01597-01009 | NUT | 50001- | |
| 9 | 01643-31032 | WASHER | 50001- | |
| 10 | 428-62-16360 | TUBE | 50001- | |
| 11 | 07260-23218 | HOSE | 50001- | |
| 12 | 07281-00549 | CLAMP | 50001- | |
| 13 | 07283-33442 | CLIP | 50001- | |
| 14 | 01597-01009 | NUT | 50001- | |
| 15 | 01643-31032 | WASHER | 50001- | |
| 16 | 428-62-16321 | TUBE | 50001- | |
| 17 | 07000-13042 | O-RING | 50001- | |
| 18 | 07372-21035 | BOLT | 50001- | |
| 19 | 01643-51032 | WASHER | 50001- | |
| 20 | 07102-20303 | HOSE | 50001- | |
| 21 | 07235-10315 | ELBOW | 50001- | |
| 22 | 07002-12034 | O-RING | 50001- | |
| 23 | 07235-10210 | ELBOW | 50001- | |
| 24 | 07002-11423 | O-RING | 50001- | |
| 25 | 07096-00222 | HOSE | 50001- | |
| 26 | 07235-10210 | ELBOW | 50001- | |
| 27 | 08036-01814 | CLIP | 50001- | |
| 28 | 01435-01016 | BOLT | 50001- |
