| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 428-S33-1190 | TUBE | 51075- | |
| 2 | (702-13-23902) | VALVE ASS'Y,CHECK | 51075- | |
| 3 | 01011-81030 | BOLT | 51075- | |
| 4 | 01643-51032 | WASHER | 51075- | |
| 5 | 01011-81020 | BOLT | 51075- | |
| 6 | 07000-F3035 | O-RING | 51075- |
- Главная
- Каталог запчастей
- Колесные погрузчики
- Wa700 3 s/n 50001 up (tbg spec.)
- Hydraulic system
- Emergency steering piping (pilot line)(#51075 )
Поиск по каталогу

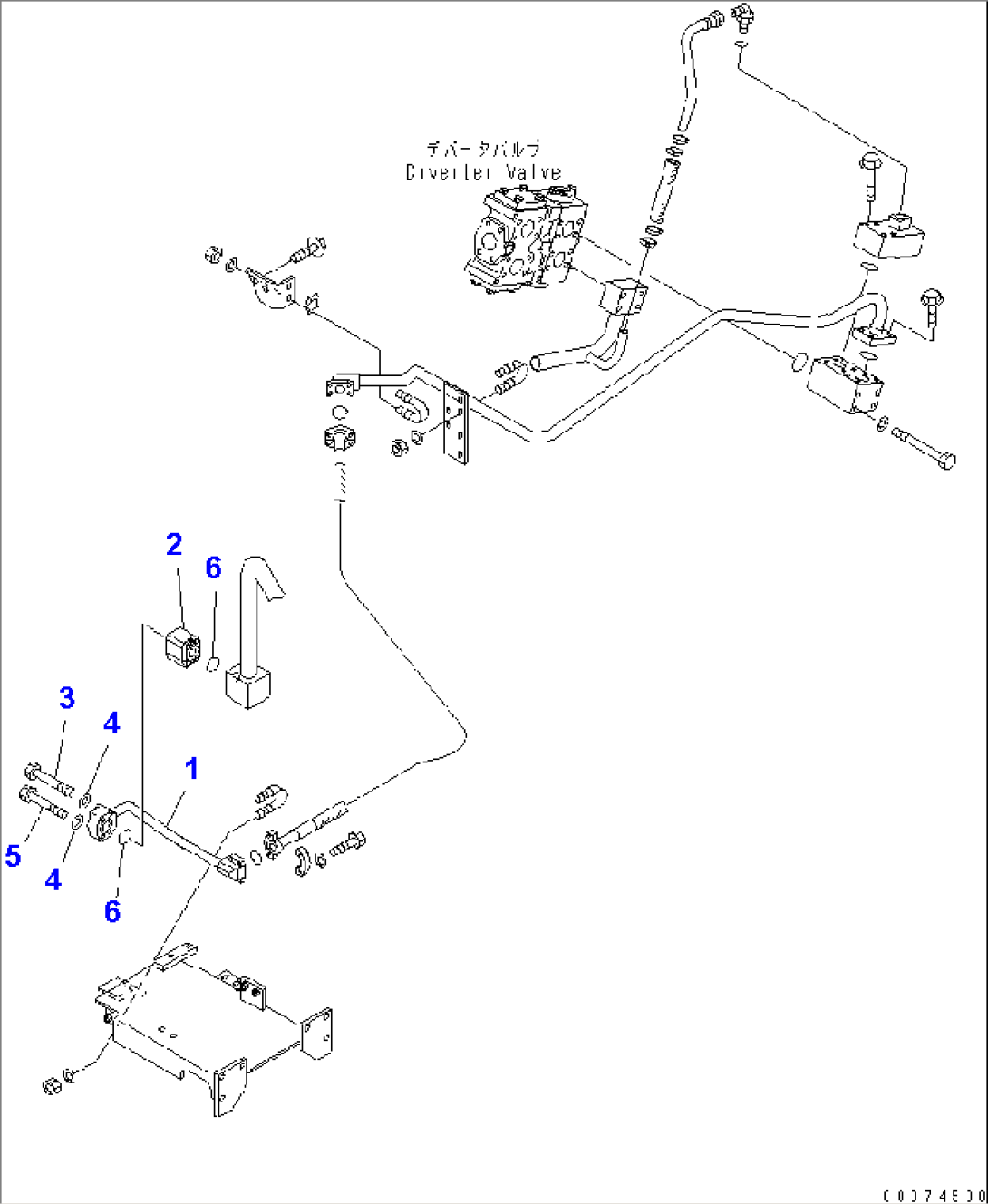

EMERGENCY STEERING PIPING (PILOT LINE)(#51075-)
