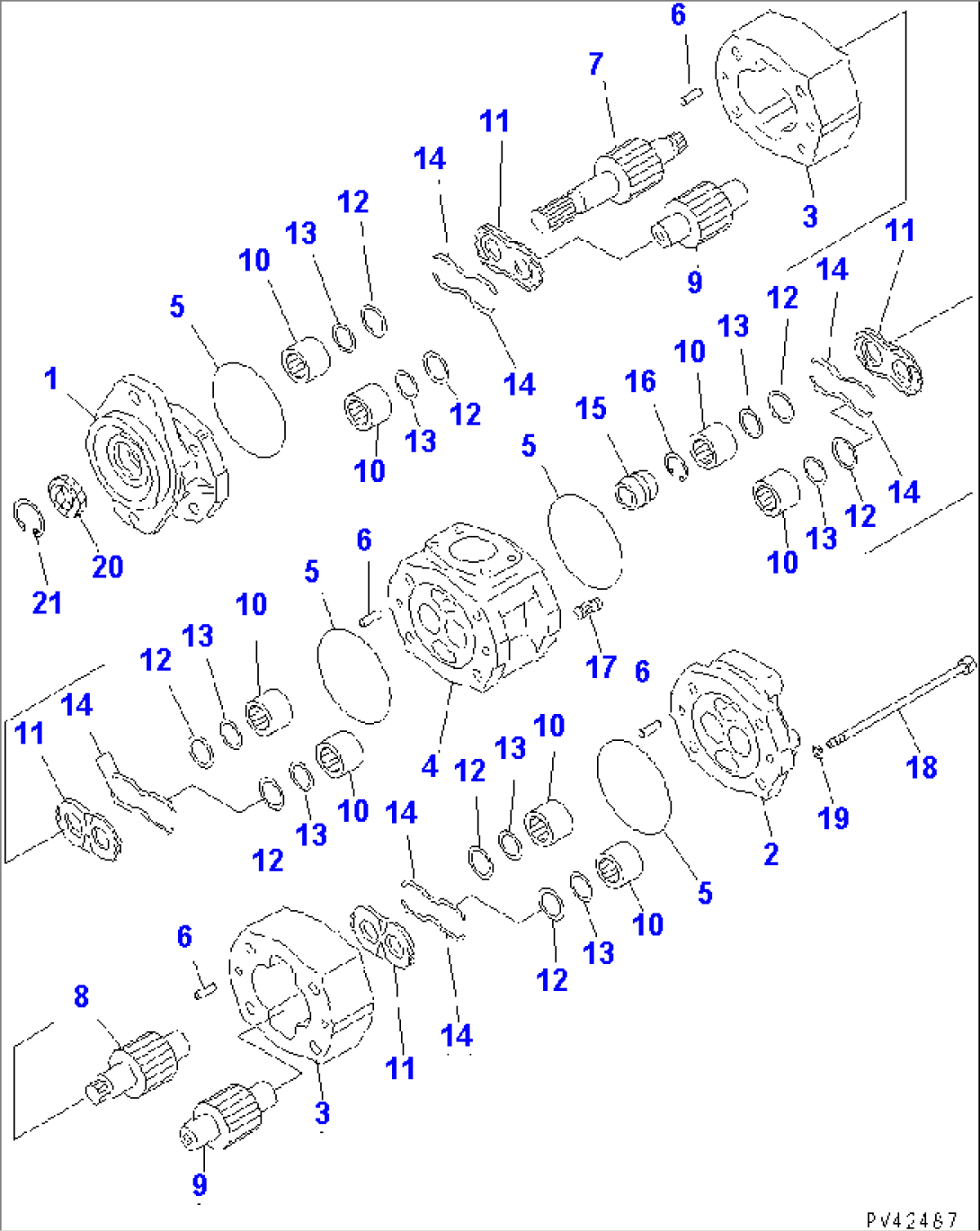

| Item | Part No. | Part Name | Qty | Serial No. |
| 704-32-30010 | PUMP ASS'Y,(SAM3-100+100) | 10666- | ||
| \0\704-32-30000 | PUMP ASS'Y,(SAM3-100+100) | 10001-10665 | ||
| 1 | (\7\704-37-03030) | BRACKET | 10001- | |
| 2 | (\7\704-37-03190) | COVER | 10001- | |
| 3 | (\7\704-37-40010) | CASE,GEAR | 10001- | |
| 4 | (\7\704-37-03260) | CARRIER | 10001- | |
| 5 | (\7\704-37-03400) | O-RING | 10666- | |
| (\7\704-37-03380) | O-RING | 10001-10665 | ||
| 6 | (\7\04020-01228) | PIN,DOWEL | 10001- | |
| 7 | (\7\704-37-40430) | GEAR,DRIVE | 10001- | |
| 8 | (\7\704-37-40450) | GEAR,DRIVE | 10001- | |
| 9 | (\7\704-37-40510) | GEAR,DRIVEN | 10001- | |
| 10 | (\7\07435-66181) | BEARING,NEEDLE | 10001- | |
| 11 | (\7\704-37-03610) | PLATE,SIDE | 10001- | |
| 12 | (\7\704-37-03480) | RING,SEAL | 10666- | |
| 12 | (\7\704-37-03470) | RING,SEAL | 10001- | |
| 13 | (\7\704-37-03540) | RING,BACK-UP | 10666- | |
| (\7\704-37-03440) | RING,BACK-UP | 10001-10665 | ||
| 14 | (\7\704-37-03550) | RING | 10666- | |
| (\7\704-37-03450) | RING | 10001-10665 | ||
| 15 | (\7\704-37-03310) | COUPLING | 10001- | |
| 16 | (\7\04065-02212) | RING,SNAP | 10001- | |
| 17 | (\7\09231-01630) | SLEEVE | 10001- | |
| 18 | (\7\704-37-03720) | BOLT | 10001- | |
| 19 | (\7\01643-51645) | WASHER | 10666- | |
| (\7\01602-01648) | WASHER,SPRING | 10001-10665 | ||
| 20 | 704-37-03810 | SEAL,OIL | 10001- | |
| 21 | 04065-05020 | RING,SNAP | 10001- |
