| Item | Part No. | Part Name | Qty | Serial No. |

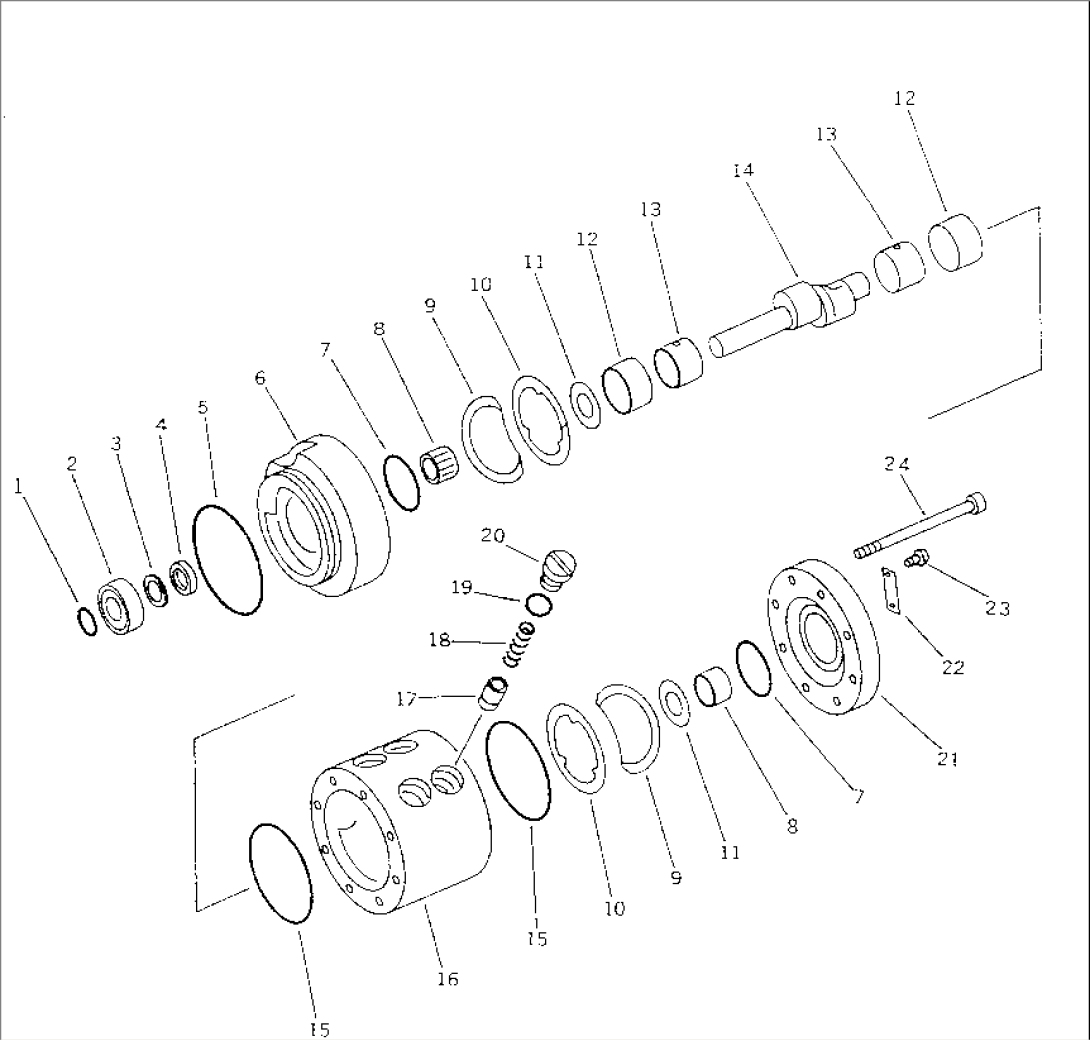

| BW055295 | PUMP ASS'Y,EMERGENCY STEERING | 313001-313103 | ||
| 1 | \6\ | RING,RETAINER | 313001-313103 | |
| 2 | \6\ | BEARING,BALL | 313001-313103 | |
| 3 | \6\ | RING | 313001-313103 | |
| 4 | \6\ | SEAL,RING (KIT) | 313001-313103 | |
| 5 | \6\ | O-RING (KIT) | 313001-313103 | |
| 6 | \6\ | COVER | 313001-313103 | |
| 7 | \6\ | O-RING (KIT) | 313001-313103 | |
| 8 | BW252621 | BEARING,NEEDLE | 313001-313103 | |
| 9 | BW252624 | WASHER,SPRING | 313001-313103 | |
| 10 | BW252625 | SPRING | 313001-313103 | |
| 11 | BW252622 | WASHER | 313001-313103 | |
| 12 | \6\ | RING | 313001-313103 | |
| 13 | \6\ | SLEEVE | 313001-313103 | |
| 14 | \6\ | SHAFT | 313001-313103 | |
| 15 | \6\ | O-RING (KIT) | 313001-313103 | |
| 16 | \6\ | HOUSING | 313001-313103 | |
| 17 | \6\ | PISTON | 313001-313103 | |
| 18 | \6\ | SPRING | 313001-313103 | |
| 19 | \6\ | O-RING (KIT) | 313001-313103 | |
| 20 | \6\ | SCREW | 313001-313103 | |
| 21 | \6\ | COVER | 313001-313103 | |
| 22 | BW252623 | PLATE | 313001-313103 | |
| 23 | BW055528 | SCREW | 313001-313103 | |
| 24 | BW252278 | BOLT | 313001-313103 | |
| SERVICE KIT | ||||
| KIT | BW055585 | REPAIR KIT,HYDRAULIC PUMP | 313001-313103 |
