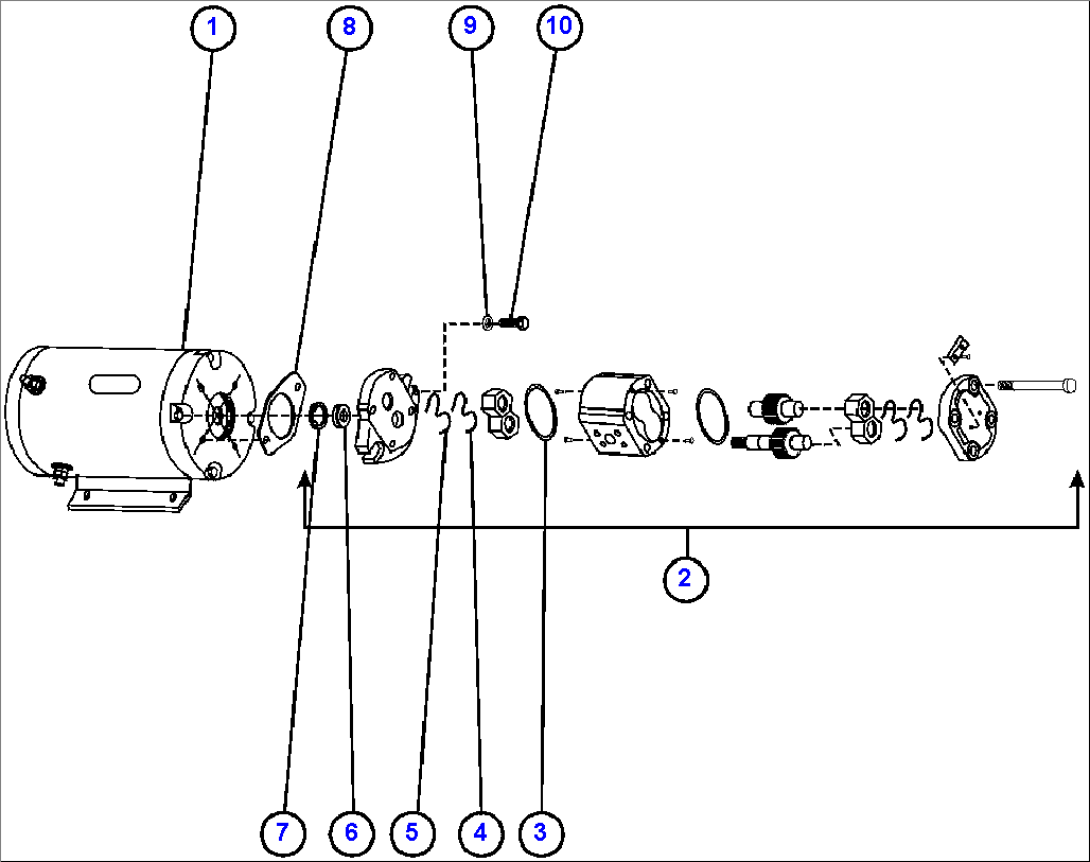

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | XA1971 | MOTOR ASSEMBLY | ||
| 2 | XA1972 | PUMP ASSEMBLY | ||
| 3 | XA1969 | O-RING (1)/(2) | ||
| 3 | XA1970 | O-RING (1)/(2) | ||
| 4 | XA1968 | SEAL, E (2) | ||
| 5 | XA1967 | RING, BACKUP (2) | ||
| 6 | XA1966 | SEAL, SHAFT (2) | ||
| 7 | XA1965 | RING, RETAINING (2) | ||
| 8 | XA1975 | GASKET (3) | ||
| 9 | XA1976 | LOCKWASHER (3) | ||
| 10 | XA1977 | CAPSCREW (3) | ||
| NS|12 | NOTE: (1) USE THE O-RING THAT CORRESPONDS WITH | |||
| NS|13 | THE CORRECT GEAR HOUSING DIAMETER. | |||
| NS|14 | XA1964 | (2) INCLUDED IN XA1964 SEAL KIT. | ||
| NS|15 | XA1973 | (3) INCLUDED IN XA1973 MOUNTING KIT. |
