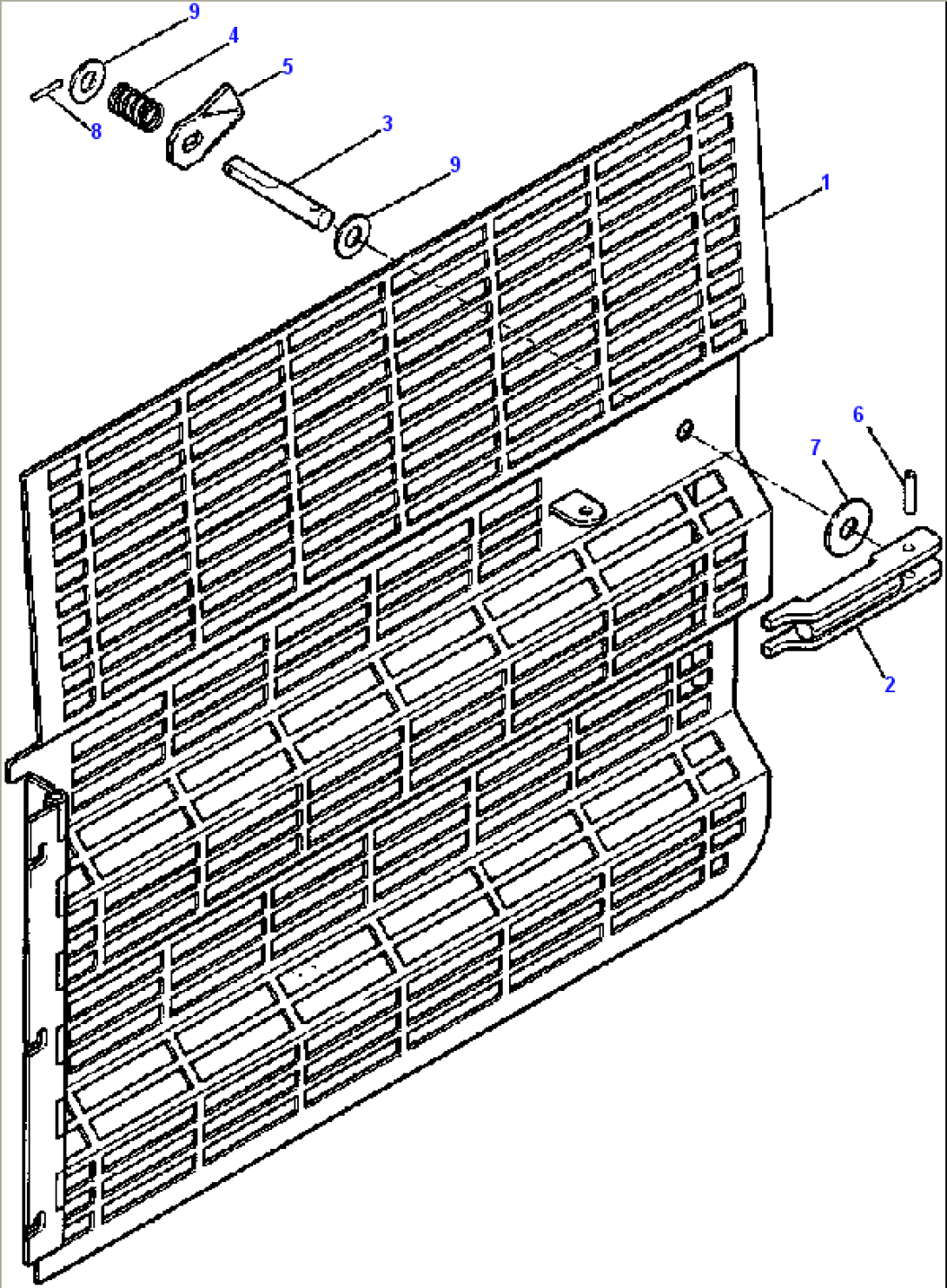

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 1234 869 H91 | DOOR WELDMENT | ||
| 2 | 1234 863 H91 | HANDLE WELDMENT | ||
| 1262 083 H1 | HANDLE WELDMENT | |||
| 3 | 1234 950 H1 | PIN, LATCH | ||
| 4 | 1207 694 H1 | SPRING | ||
| 5 | 1234 733 H1 | PAWL | ||
| 6 | 20 895 R1 | PIN, COIL SPRING | ||
| 20 690 R1 | PIN, COIL SPRING | |||
| 7 | 120 390 | WASHER, FLAT | ||
| 8 | 19 494 R1 | PIN, COIL SPRING | ||
| 9 | 25 535 R1 | WASHER, FLAT | ||
| F1 - HANDLE AND PIN MUST BE USED TOGETHER | ||||
| F2 - HANDLE AND PIN MUST BE USED TOGETHER | ||||
