| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | (01010-81020) | BOLT | 11001- | |
| 2 | (01643-31032) | WASHER | 11001- | |
| 3 | 04434-53211 | CLIP | 11001- | |
| 4 | 01010-81020 | BOLT | 11001- | |
| 5 | 01643-31032 | WASHER | 11001- | |
| 6 | (07260-22020) | HOSE | 11001- | |
| 7 | (07281-00359) | CLAMP,HOSE | 11001- |
- Главная
- Каталог запчастей
- Автогрейдеры
- Gd675 3a s/n 10001 up
- Engine related parts
- Engine accessory (remote drain) (with corrosion resistor)(#11001 )
Поиск по каталогу

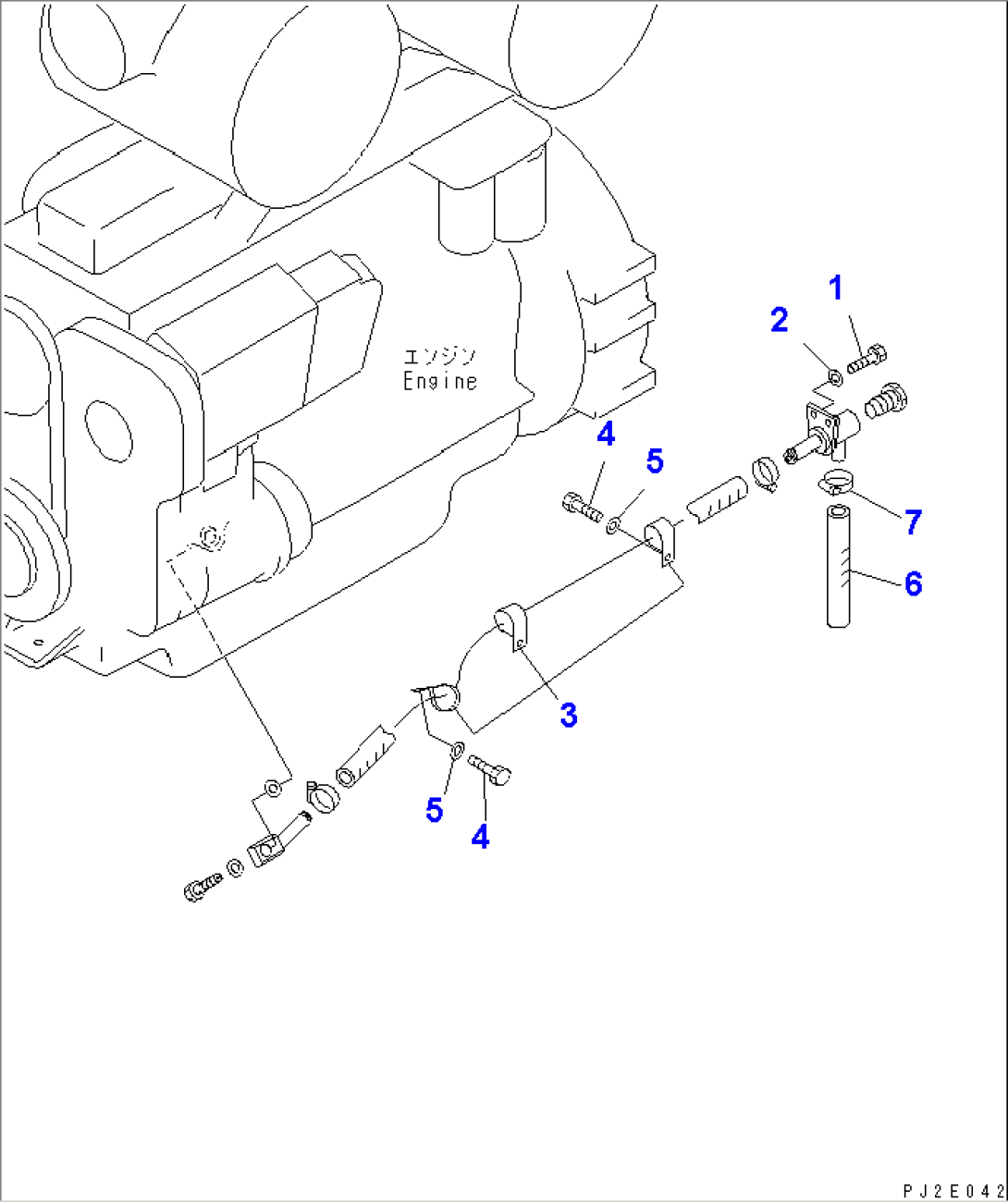

ENGINE ACCESSORY (REMOTE DRAIN) (WITH CORROSION RESISTOR)(#11001-)
