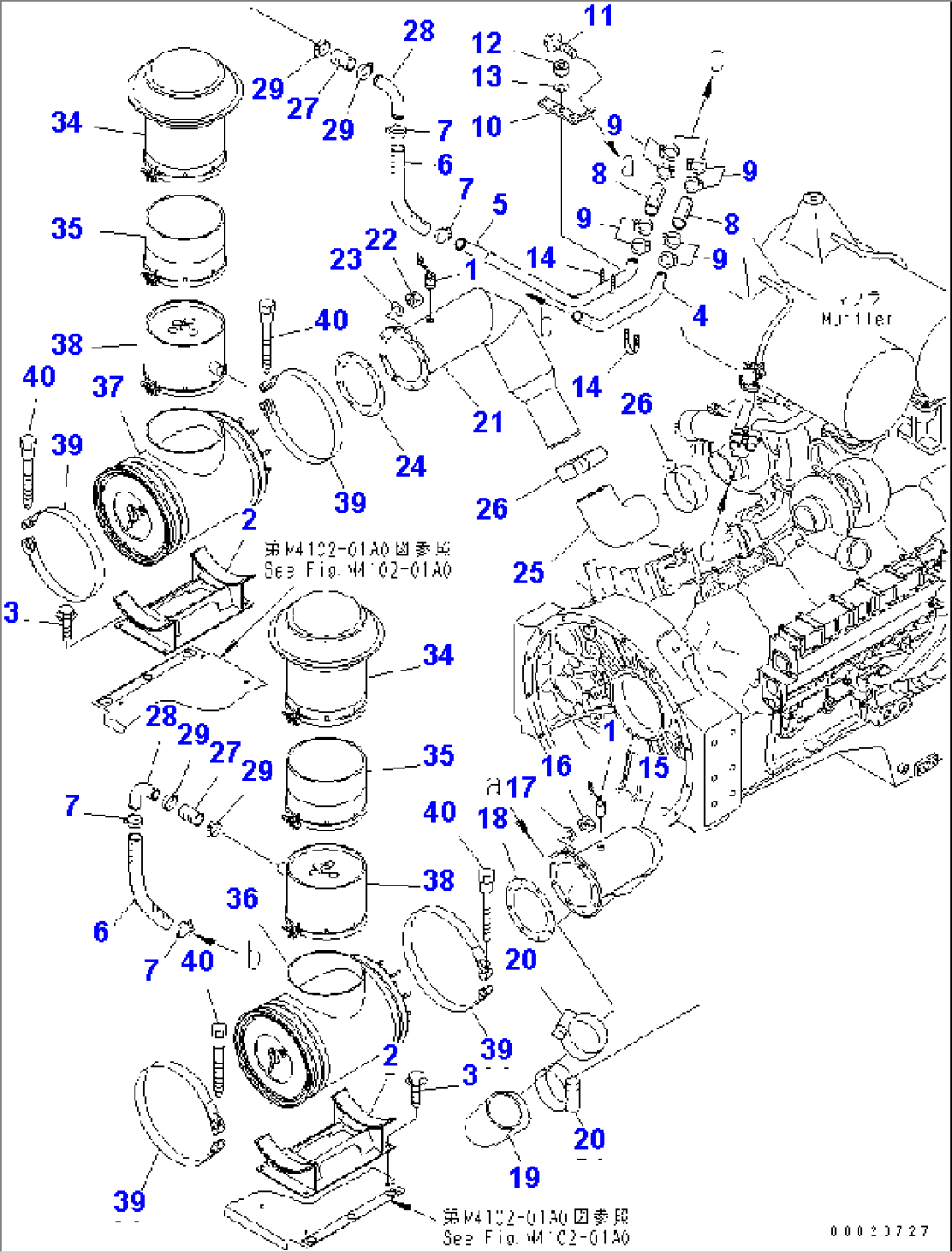

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 600-815-7930 | INDICATOR | 52001-@ | |
| 2 | 427-01-11231 | BRACKET | 52001-52008 | |
| 3 | 01435-01230 | BOLT | 52001-52008 | |
| 4 | 427-01-21160 | TUBE,L.H. | 52001-52008 | |
| 5 | 427-01-21170 | TUBE,R.H. | 52001-52008 | |
| 6 | 427-Z04-2120 | HOSE | 52001-52008 | |
| 7 | 07289-00045 | CLAMP | 52001-52008 | |
| 8 | 427-01-11460 | HOSE | 52001-52008 | |
| 9 | 07289-00045 | CLAMP | 52001-52008 | |
| 10 | 427-01-A1110 | BRACKET | 52001-52008 | |
| 11 | 01435-01225 | BOLT | 52001-@ | |
| 12 | 01597-01009 | NUT | 52001-@ | |
| 13 | 01643-31032 | WASHER | 52001-@ | |
| 14 | 07283-34346 | CLIP | 52001-52008 | |
| 15 | 427-01-A1152 | CONNECTOR,L.H. | 52001-52008 | |
| 16 | 01580-01008 | NUT | 52001-52008 | |
| 17 | 01602-21030 | WASHER | 52001-52008 | |
| 18 | 6127-81-4823 | GASKET | 52001-52008 | |
| 19 | 561-02-74240 | ELBOW | 52001-@ | |
| 20 | 07299-00130 | CLAMP | 52001-@ | |
| 21 | 427-01-A1142 | CONNECTOR,R.H. | 52001-52008 | |
| 22 | 01580-01008 | NUT | 52001-52008 | |
| 23 | 01602-21030 | WASHER | 52001-52008 | |
| 24 | 6127-81-4823 | GASKET | 52001-52008 | |
| 25 | 561-02-74240 | ELBOW | 52001-@ | |
| 26 | 07299-00130 | CLAMP | 52001-@ | |
| 27 | 427-Z04-1170 | HOSE | 52001-52008 | |
| 28 | 427-Z04-2110 | TUBE | 52001-52008 | |
| 29 | 07281-00549 | CLAMP | 52001-52008 | |
| 34 | 6128-11-5180 | HOOD ASS'Y | 52001-@ | |
| 35 | 6128-81-7950 | EXTENSION | 52001-@ | |
| 36 | 427-Z04-1210 | AIR CLEANER ASS'Y | 52001-52008 | |
| 37 | 427-Z04-1220 | AIR CLEANER ASS'Y | 52001-52008 | |
| 38 | 600-181-1641 | PRE-CLEANER ASS'Y | 52001-52008 | |
| 38 | 6090-02-4431 | PRE-CLEANER | 52001-52008 | |
| 39 | 6127-11-4360 | BAND ASS'Y | 52001-52008 | |
| 40 | 6643-11-4641 | BOLT | 52001-@ |
