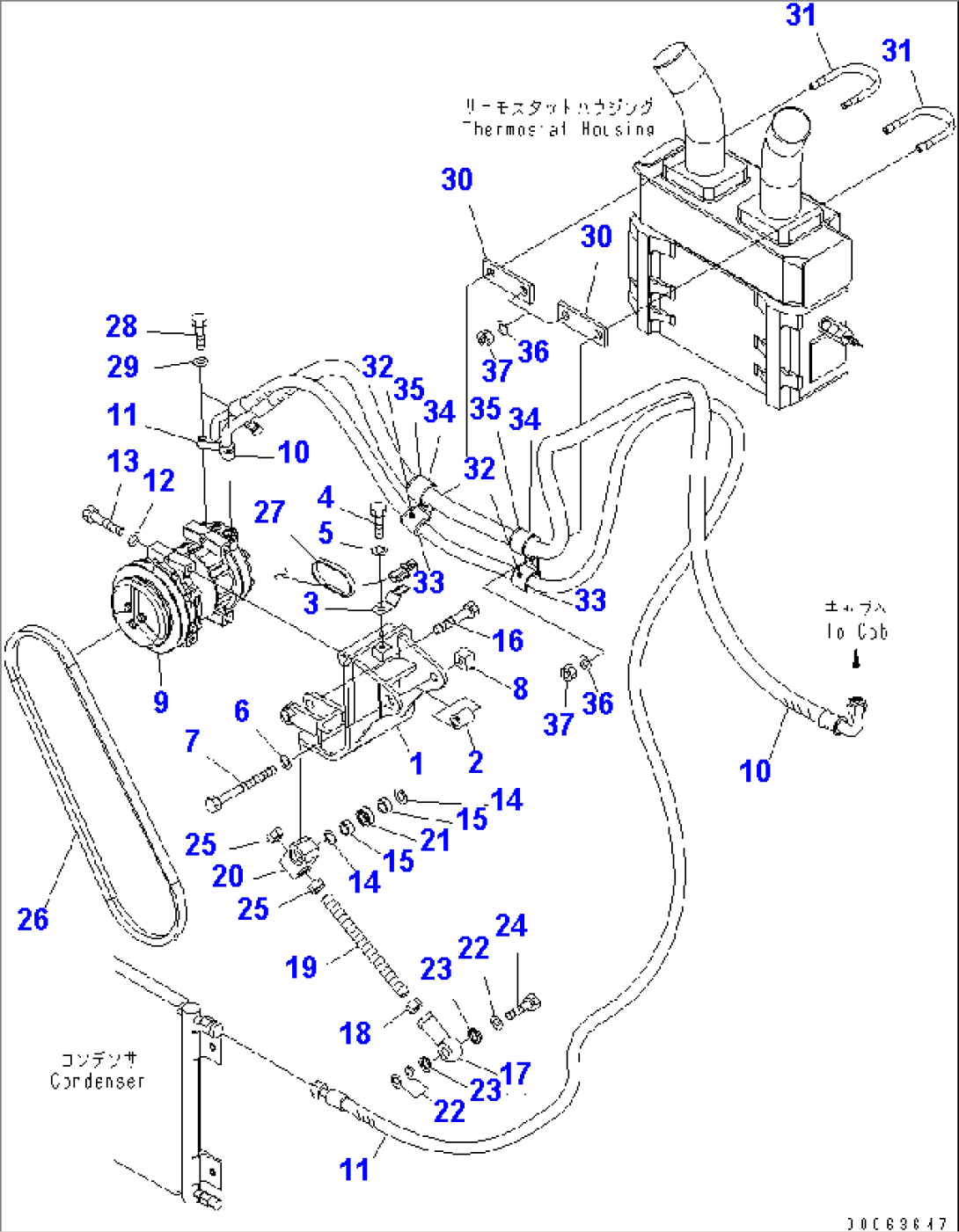

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 561-07-83413 | BRACKET | 7169- | |
| 2 | 6215-81-6150 | PIN | 7169- | |
| 3 | 08193-21012 | CLIP | 7169- | |
| 4 | 01010-81016 | BOLT | 7169- | |
| 5 | 01643-31032 | WASHER | 7169- | |
| 6 | 01643-31232 | WASHER | 7169- | |
| 7 | 427-T46-1460 | BOLT | 7169- | |
| 8 | 427-T46-1340 | NUT | 7169- | |
| 561-07-82200 | COMPRESSOR KIT | 7169- | ||
| 9 | 423-S62-4330 | COMPRESSOR ASS'Y | 7169- | |
| 10 | 561-07-81331 | HOSE | 7169- | |
| 11 | 561-07-81342 | HOSE | 7169- | |
| 12 | 01643-30823 | WASHER | 7169- | |
| 13 | 01010-80895 | BOLT | 7169- | |
| 14 | 700-84-14790 | SHIM, 0.8MM | 7169- | |
| 15 | 427-T46-1430 | SPACER | 7169- | |
| 16 | 01018-21465 | BOLT | 7169- | |
| 17 | 04250-81683 | END | 7169- | |
| 18 | 01582-11613 | NUT | 7169- | |
| 19 | 561-07-63420 | ROD | 7169- | |
| 20 | 427-T46-1420 | BLOCK | 7169- | |
| 21 | 419-43-17590 | BUSHING | 7169- | |
| 22 | 195-40-31530 | SHIM, 0.5MM | 7169- | |
| 23 | 04254-11645 | SPACER | 7169- | |
| 24 | 01018-21665 | BOLT | 7169- | |
| 25 | 01580-11613 | NUT | 7169- | |
| 26 | 04120-21748 | V-BELT | 7169- | |
| 27 | 08034-20834 | BAND | 7169- | |
| 28 | 01010-80830 | BOLT | 7169- | |
| 29 | 01643-30823 | WASHER | 7169- | |
| 30 | 281-70-16190 | PLATE | 7169- | |
| 31 | 07283-36155 | CLIP | 7169- | |
| 32 | 04434-52711 | CLIP | 7169- | |
| 33 | 07095-20419 | CUSHION | 7169- | |
| 34 | 04434-53211 | CLIP | 7169- | |
| 35 | 07095-20523 | CUSHION | 7169- | |
| 36 | 01643-31032 | WASHER | 7169- | |
| 37 | 01597-01009 | NUT | 7169- |
