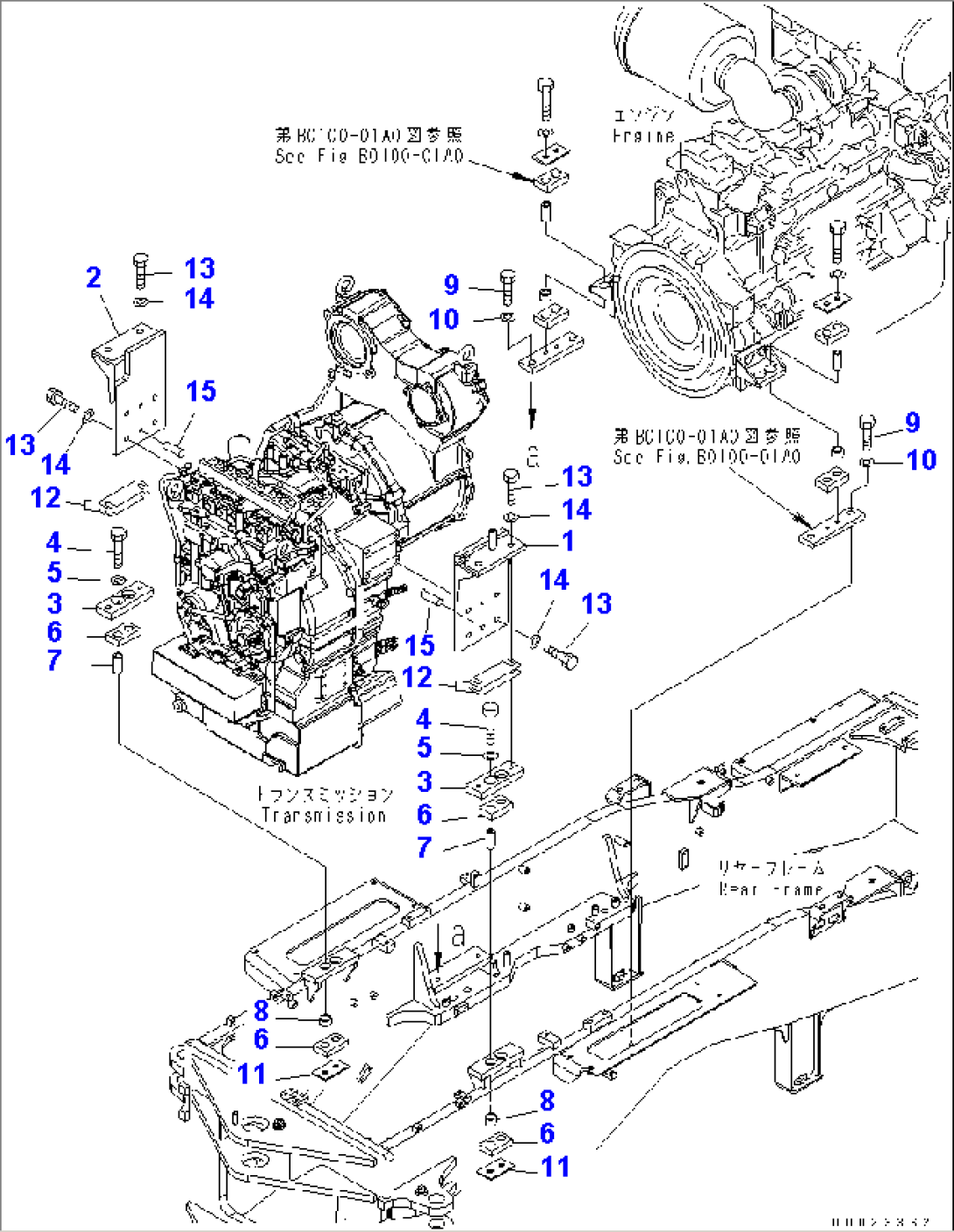

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 23C-01-51113 | BRACKET | 30001- | |
| 2 | 23C-01-51182 | BRACKET | 30001- | |
| 3 | 23C-01-51162 | PLATE | 30001- | |
| 4 | 01011-61600 | BOLT | 30001- | |
| 5 | 01643-31645 | WASHER | 30001- | |
| 6 | 23A-01-11410 | CUSHION | 30001- | |
| 7 | 23A-01-11250 | SPACER | 30001- | |
| 8 | 23B-01-11240 | CUSHION | 30001- | |
| 9 | 01010-61650 | BOLT | 30001- | |
| 10 | 01643-31645 | WASHER | 30001- | |
| 11 | 23C-01-51171 | PLATE | 30001- | |
| 12 | 198-54-14160 | SHIM¤ 1.0MM | 30001- | |
| 13 | 01010-61650 | BOLT | 30001- | |
| 14 | 01643-31645 | WASHER | 30001- | |
| 15 | 04020-01228 | PIN | 30001- |
