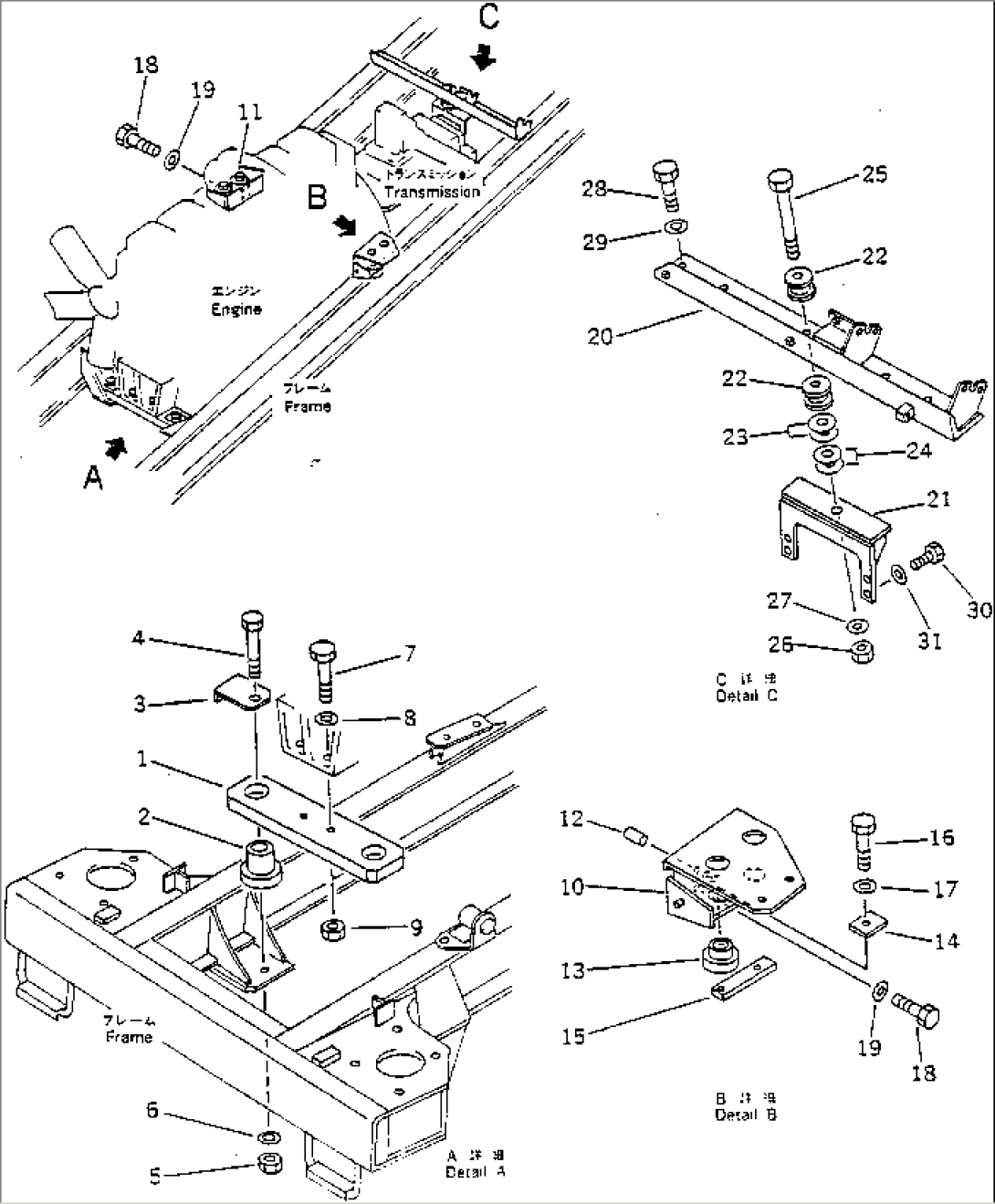

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 567-01-41110 | SUPPORT | 1001- | |
| 2 | 287-01-18330 | CUSHION | 1001- | |
| 3 | 566-01-11641 | PLATE | 1001- | |
| 4 | 01011-52445 | BOLT | 1001- | |
| 5 | 01580-12419 | NUT | 1001- | |
| 6 | 01643-32460 | WASHER | 1001- | |
| 7 | 01010-51885 | BOLT | 1001- | |
| 8 | 01643-31845 | WASHER | 1001- | |
| 9 | 01580-11815 | NUT | 1001- | |
| 10 | 567-01-61150 | BRACKET,L.H. | 1001- | |
| 11 | 567-01-61110 | BRACKET,R.H. | 1001- | |
| 12 | 04020-01842 | PIN | 1001- | |
| 13 | 287-01-18340 | CUSHION | 1001- | |
| 14 | 567-01-61160 | PLATE | 1001- | |
| 15 | 567-01-61170 | SEAT | 1001- | |
| 16 | 01011-51810 | BOLT | 1001- | |
| 17 | 01643-31845 | WASHER | 1001- | |
| 18 | 01010-51650 | BOLT | 1001- | |
| 19 | 01643-31645 | WASHER | 1001- | |
| 20 | 567-01-61141 | BRACKET | 1001- | |
| 21 | 567-01-61131 | BRACKET | 1001- | |
| 22 | 560-01-18420 | RUBBER | 1001- | |
| 23 | 560-01-18430 | SHIM, 3.5MM | 1001- | |
| 24 | 560-01-18440 | SHIM, 1.0MM | 1001- | |
| 25 | 01011-52060 | BOLT | 1001- | |
| 26 | 01598-12021 | NUT | 1001- | |
| 27 | 01643-32060 | WASHER | 1001- | |
| 28 | 01010-51435 | BOLT | 1001- | |
| 29 | 01643-31445 | WASHER | 1001- | |
| 30 | 01010-51635 | BOLT | 1001- | |
| 31 | 01643-31645 | WASHER | 1001- |
