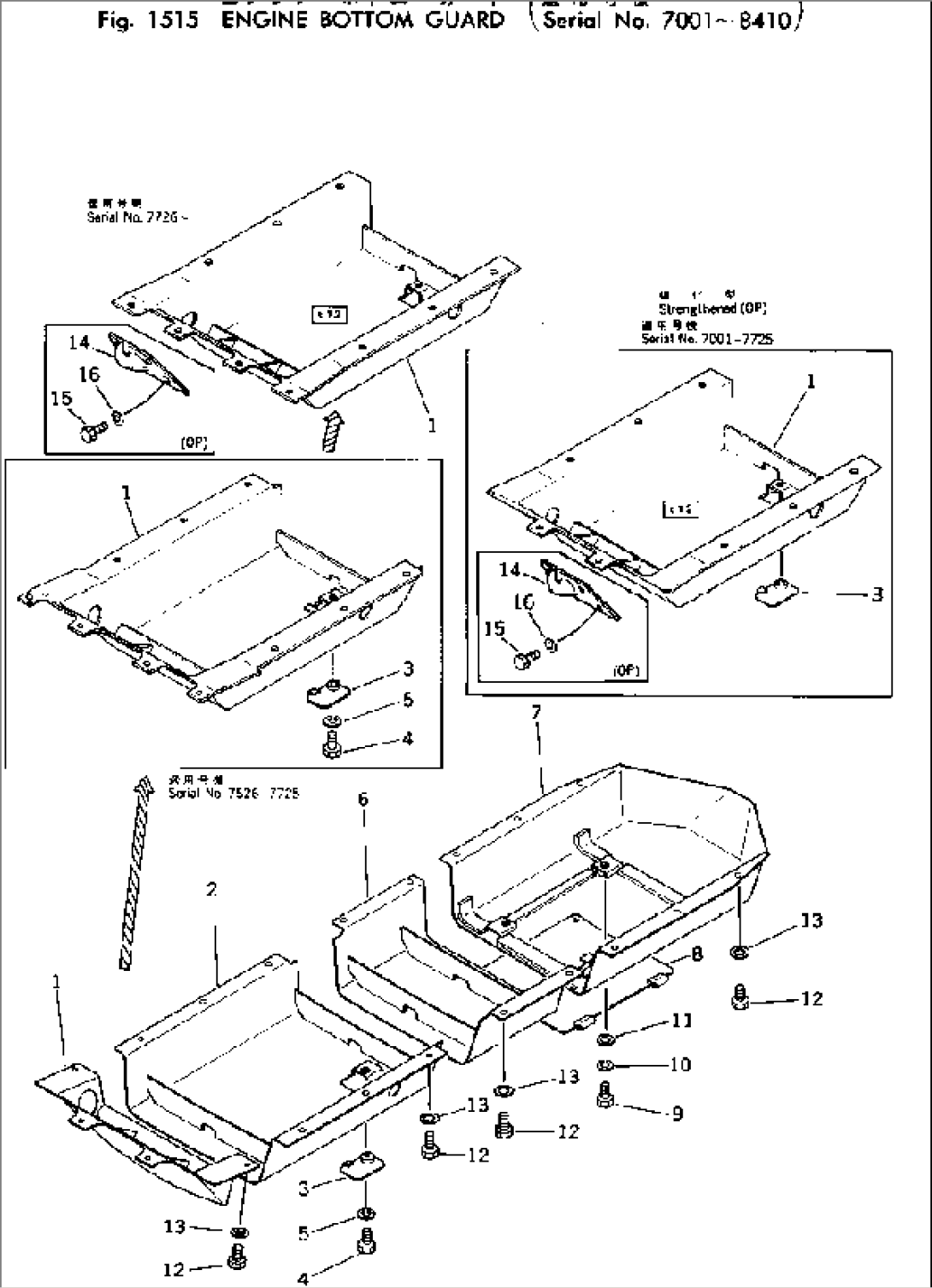

Item | Part No. | Part Name | Qty | Serial No. |
1 | 145-54-43114 | GUARD,(WITH FRONT HOOK FIXING ROOM) | 8411-@ | |
1 | \0\145-54-43113 | GUARD,(WITH FRONT HOOK FIXING ROOM) | 7725-8410 | |
1 | \0\145-54-43112 | GUARD | 7526-7724 | |
1 | 145-54-43111 | GUARD | 7236-7525 | |
1 | \0\145-54-43110 | GUARD | 7001-7235 | |
1 | 145-54-43310 | GUARD,(WITH FRONT HOOK FIXING ROOM) | 7001-7724 | |
2 | 145-54-43131 | GUARD | 7236-7525 | |
2 | \0\145-54-43130 | GUARD | 7001-7235 | |
3 | 145-54-43170 | COVER | 7236-7525 | |
3 | 125-54-21510 | COVER | 7001-7235 | |
3 | 135-54-33140 | COVER,(REINFORCED TYPE) | 7526-@ | |
4 | 01010-31225 | BOLT | 7001-@ | |
5 | 01602-01236 | WASHER | 7001-@ | |
6 | 145-54-43143 | GUARD | 8411-@ | |
6 | \0\145-54-43141 | GUARD | 7236-8410 | |
6 | \0\145-54-43140 | GUARD | 7001-7235 | |
7 | 145-54-43153 | GUARD | 8411-@ | |
7 | \0\145-54-43151 | GUARD | 7236-8410 | |
7 | \0\145-54-43150 | GUARD | 7001-7235 | |
8 | 145-54-43161 | COVER | 7236-8410 | |
8 | 145-54-43160 | COVER | 7001-7235 | |
9 | 01010-31230 | BOLT | 7001-@ | |
10 | 01602-01236 | WASHER | 7001-@ | |
11 | 01643-31232 | WASHER | 7001-@ | |
12 | 01010-31640 | BOLT | 7001-@ | |
13 | 01643-31645 | WASHER | 7001-@ | |
14 | 140-913-1130 | HOOK,FRONT | 7001-@ | |
15 | 01010-52060 | BOLT | 7001-@ | |
16 | 01643-32060 | WASHER | 7001-@ |
