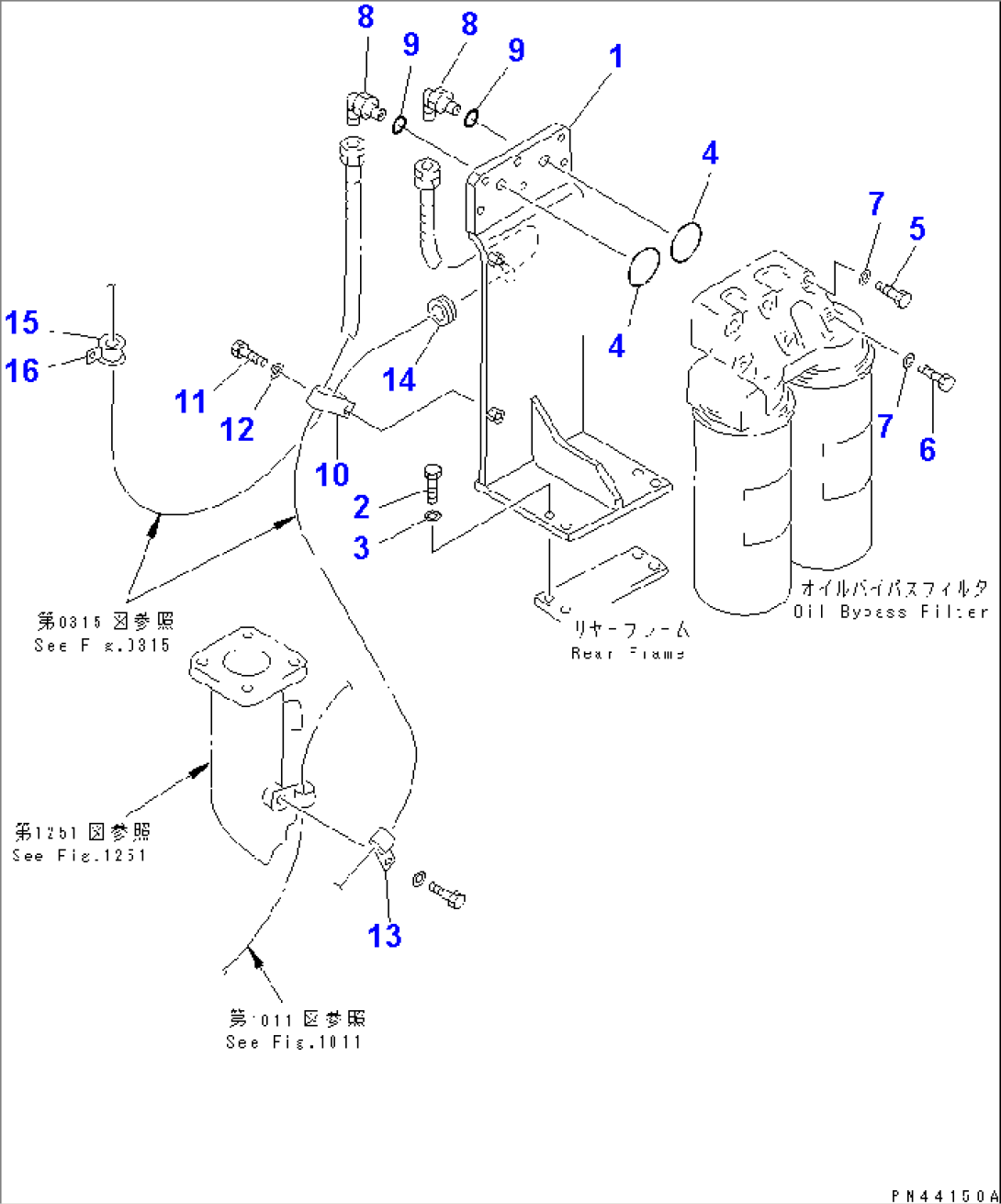

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 427-01-11911 | BRACKET | 10001- | |
| 2 | 01010-81245 | BOLT | 10001- | |
| 3 | 01643-31232 | WASHER | 10001- | |
| 4 | 07000-73050 | O-RING | 10001- | |
| 5 | 01010-81095 | BOLT | 10001- | |
| 6 | 01010-81025 | BOLT | 10001- | |
| 7 | 01640-21016 | WASHER | 10001- | |
| 8 | 07235-10210 | ELBOW | 10001- | |
| 9 | 07002-31423 | O-RING | 10001- | |
| 10 | 04435-51410 | CLIP | 10001- | |
| 11 | 01010-81020 | BOLT | 10001- | |
| 12 | 01643-31032 | WASHER | 10001- | |
| 13 | 08036-01414 | CLIP | 10001- | |
| 14 | 112-06-12150 | GROMMET | 10001- | |
| 15 | 07095-20213 | CUSHION | 10001- | |
| 16 | 04434-51910 | CLIP | 10001- |
