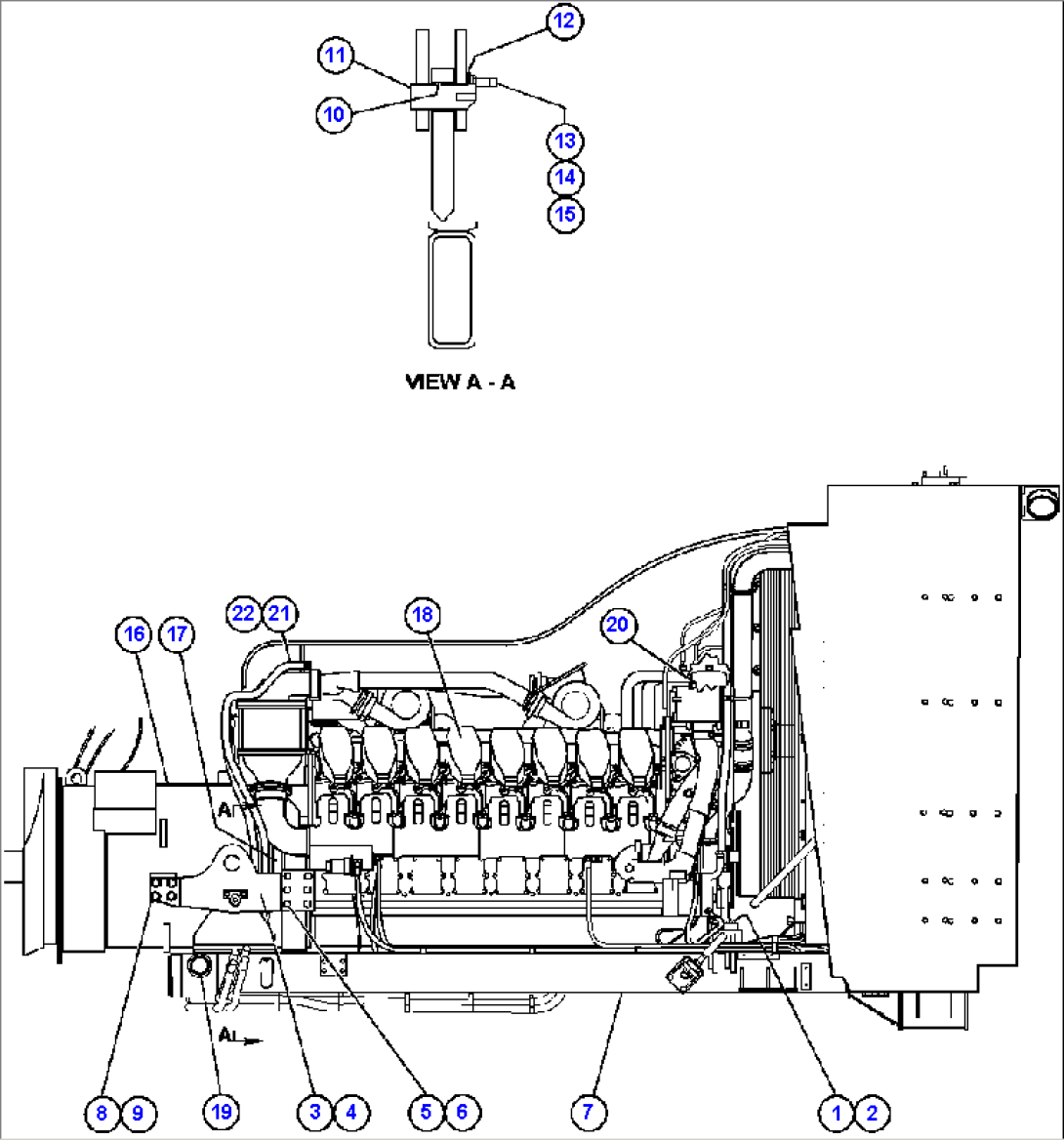

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | MM0075 | CAPSCREW - M20 X 2.50 X 60 | ||
| 2 | MM0475 | LOCKWASHER - M20 | ||
| 3 | EH3551 | CRADLE, L.H. | ||
| 4 | EH3552 | CRADLE, R.H. | ||
| 5 | MM0071 | CAPSCREW - M16 X 2.00 X 45 | ||
| 6 | MM0474 | LOCKWASHER - M16 | ||
| 7 | EH2435 | SUB-FRAME, ENGINE | ||
| 8 | VN9079 | CAPSCREW - 1" - 8NC X 2 1/4" | ||
| 9 | C1544 | LOCKWASHER - 1" | ||
| 10 | PB4177 | RACE, INNER | ||
| 11 | TN1019 | PIN | ||
| 12 | TN1018 | PLATE | ||
| 13 | VW2236 | SET SCREW | ||
| 14 | C1542 | LOCKWASHER - 3/4" | ||
| 15 | E5222 | NUT, JAM - 3/4" | ||
| 16 | PC0154 | BLOWER/ALTERNATOR ASSEMBLY | ||
| 17 | EG6890 | ADAPTOR ASSEMBLY | ||
| 17 | EG6885 | SHIM | ||
| 17 | EG6886 | SHIM | ||
| 17 | TM3466 | SHIM | ||
| 17 | TM3468 | SHIM | ||
| 17 | TH7533 | CAPSCREW - 3/4" - 10NC X 4" (SOCKET HEAD) | ||
| 18 | ENGINE (ORDER FROM FACTORY) | |||
| 19 | VM3891 | BUSHING, RUBBER | ||
| 20 | BF4556 | CENTRIFUGE FILTER ASSEMBLY (SEE INDEX) | ||
| 21 | EG8717 | HOSE | ||
| 22 | VL6197 | CLAMP | ||
| NS|28 | NOTE: NS = NOT SHOWN | |||
| NS|29 | BF3914 | ELEMENT - ENGINE OIL FILTER | ||
| NS|30 | BF4162 | ELEMENT - FUEL FILTER | ||
| NS|31 | EJ0974 | SHIELD (AT REAR OF ENGINE) | ||
| NS|32 | EJ0973 | SPACER, MOUNTING | ||
| NS|33 | MM0051 | CAPSCREW - M8 X 1.25 X 50 | ||
| NS|34 | MM0703 | FLAT WASHER - M8 | ||
| NS|35 | MM0012 | CAPSCREW - M16 X 2.00 X 25 | ||
| NS|36 | MM0706 | FLAT WASHER - M16 |
