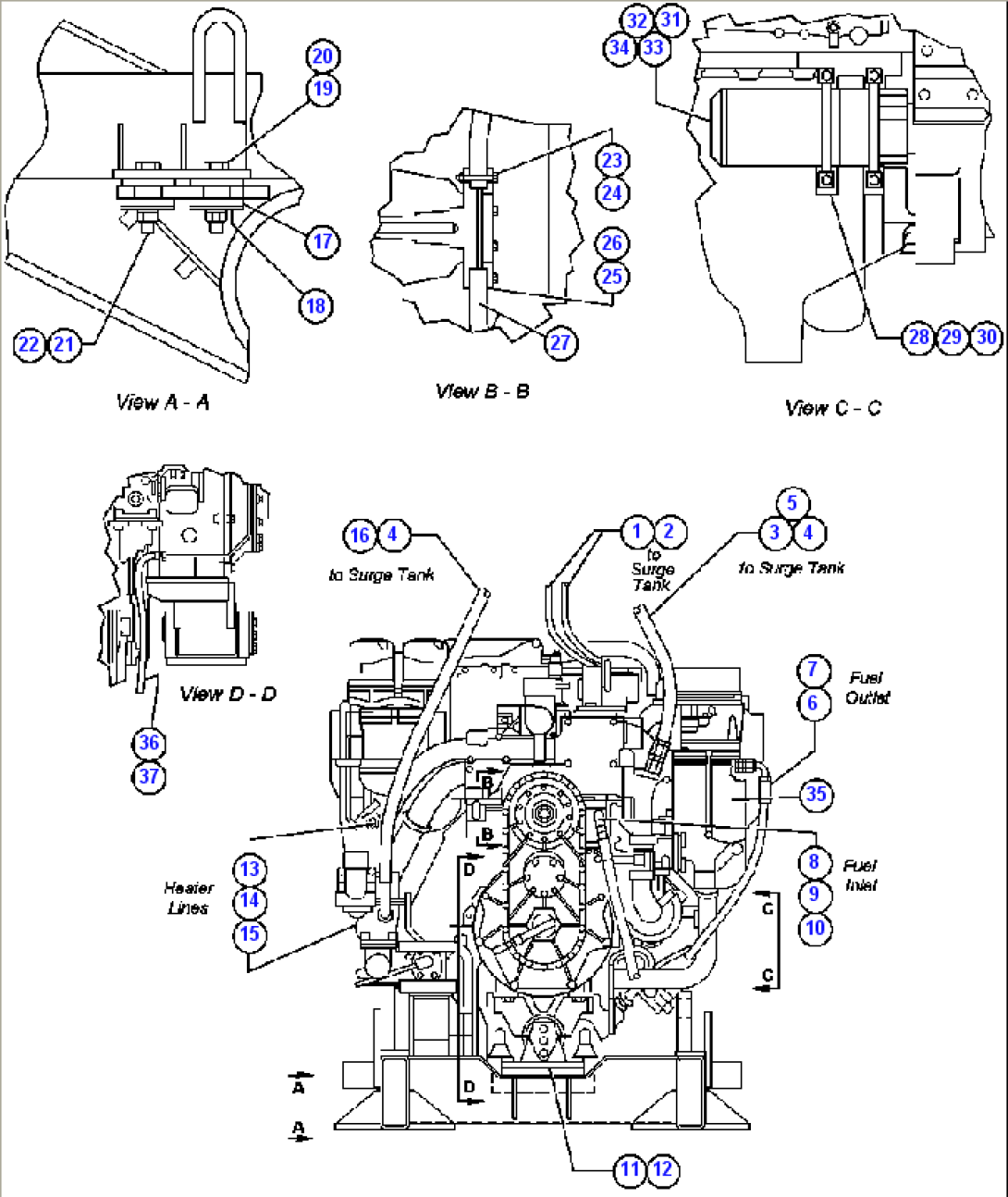

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | HA2363 | HOSE | ||
| 2 | WB0958 | ADAPTOR, METRIC TO INCH | ||
| 3 | EF3377 | TUBE | ||
| 4 | ED8255 | ADAPTOR, METRIC TO INCH | ||
| 5 | CD8419 | CLAMP | ||
| 6 | HA7124 | HOSE | ||
| 7 | ED8259 | ADAPTOR, METRIC TO INCH | ||
| 8 | HA7276 | HOSE | ||
| 9 | WB0698 | ADAPTOR, METRIC TO INCH | ||
| 10 | WB0378 | FITTING - 90 DEG | ||
| 11 | VN9066 | CAPSCREW - 3/4" - 10NC X 2" - G8 | ||
| 12 | C1542 | LOCKWASHER - 3/4" | ||
| 13 | VN6280 | VALVE, WATER SHUT-OFF | ||
| 14 | MM0728 | SEAL, ADAPTOR | ||
| 15 | MM0726 | ADAPTOR | ||
| 16 | ED8256 | TUBE | ||
| 17 | PB9775 | MOUNT, RUBBER (2 PIECE) | ||
| 18 | EF9535 | WASHER | ||
| 19 | WA4732 | FLAT WASHER - 1" (HARDENED) | ||
| 20 | VN4393 | CAPSCREW - 1" - 8NC X 6" - G8 | ||
| 21 | VC7828 | LOCKWASHER - 1" | ||
| 22 | VF2856 | NUT - 1" | ||
| 23 | PB9195 | CAPSCREW - (SPECIAL) | ||
| 24 | PB9196 | NUT - (SPECIAL) | ||
| 25 | PB9194 | FLANGE | ||
| 26 | PB9197 | PIN, SPRING | ||
| 27 | PB9193 | FAN | ||
| 28 | PB9895 | BRACKET, MOUNTING | ||
| 29 | PB9896 | WASHER - (SPECIAL) | ||
| 30 | PB9897 | CAPSCREW - (SPECIAL) | ||
| 31 | PB9893 | O-RING | ||
| 32 | PB9894 | O-RING | ||
| 33 | PB9892 | RING, SPACER | ||
| 34 | PB9504 | STARTER, ELECTRIC | ||
| 35 | VJ8004 | FILTER, ELEMENT (FUEL) | ||
| 36 | CD9705 | CLAMP | ||
| 37 | EC0362 | HOSE |
