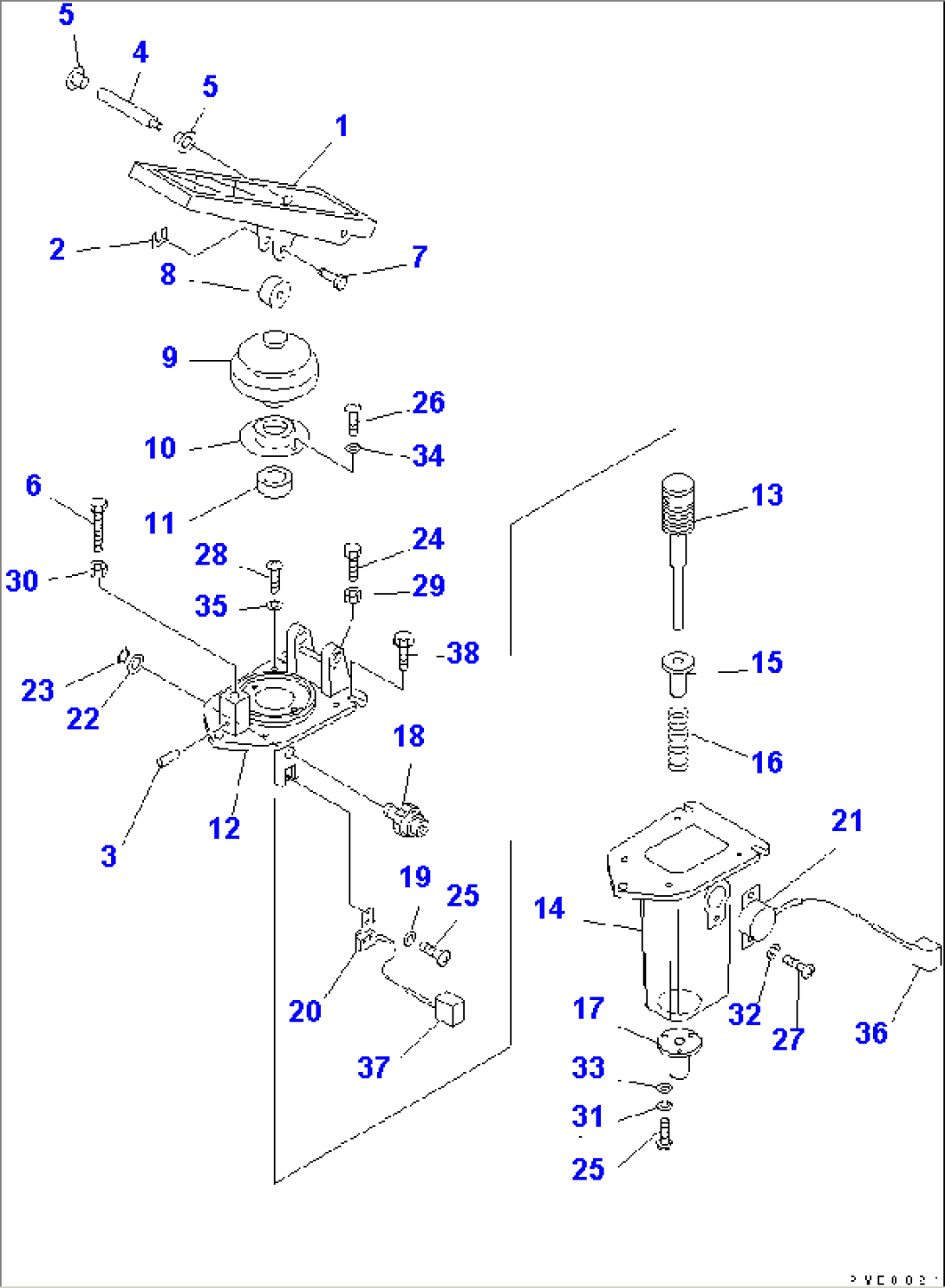

| Item | Part No. | Part Name | Qty | Serial No. |
| 421-43-21410 | PEDAL ASS'Y | 50001-51000 | ||
| 1 | 417-43-11210 | PEDAL | 50001-@ | |
| 2 | 417-43-11330 | CLIP | 50001-51000 | |
| 3 | 421-43-21710 | PIN | 50001-51000 | |
| 4 | 421-43-21720 | PIN | 50001-51000 | |
| 5 | 421-43-21730 | BEARING | 50001-51000 | |
| 6 | 421-43-21740 | BOLT | 50001-51000 | |
| 7 | 421-43-21750 | PIN,BEARING | 50001-51000 | |
| 8 | 421-43-21760 | ROLLER | 50001-51000 | |
| 9 | 421-43-21770 | BELLOWS | 50001-51000 | |
| 10 | 421-43-21780 | COVER | 50001-51000 | |
| 11 | 421-43-21790 | PLATE,FRICTION | 50001-51000 | |
| 12 | 421-43-21810 | BODY ASS'Y | 50001-51000 | |
| 13 | 421-43-21820 | ROD ASS'Y | 50001-51000 | |
| 14 | 421-43-21830 | CASE | 50001-51000 | |
| 15 | 421-43-21840 | GUIDE,SPRING | 50001-51000 | |
| 16 | 421-43-21850 | SPRING | 50001-51000 | |
| 17 | 421-43-21860 | GUIDE,ROD | 50001-51000 | |
| 18 | 421-43-21870 | GEAR | 50001-51000 | |
| 19 | 421-43-21880 | WASHER | 50001-51000 | |
| 20 | 421-43-21890 | BRACKET ASS'Y | 50001-51000 | |
| 21 | 421-43-21910 | POTENTIOMETER | 50001-51000 | |
| 22 | 421-43-21920 | WASHER | 50001-51000 | |
| 23 | 421-43-21930 | RING,SNAP | 50001-51000 | |
| 24 | 01010-80612 | BOLT | 50001-51000 | |
| 25 | 01220-40310 | SCREW | 50001-51000 | |
| 26 | 01220-40408 | SCREW | 50001-51000 | |
| 27 | 01220-40416 | SCREW | 50001-51000 | |
| 28 | 01220-40510 | SCREW | 50001-51000 | |
| 29 | 01580-10605 | NUT | 50001-51000 | |
| 30 | 01580-10806 | NUT | 50001-@ | |
| 31 | 01601-20307 | WASHER,SPRING | 50001-51000 | |
| 32 | 01601-20410 | WASHER,SPRING | 50001-51000 | |
| 33 | 01641-20305 | WASHER | 50001-51000 | |
| 34 | 01641-20405 | WASHER | 50001-51000 | |
| 35 | 01641-20508 | WASHER | 50001-51000 | |
| 36 | 08055-00381 | CONNECTOR | 50001-51000 | |
| 37 | 08055-00391 | CONNECTOR | 50001-51000 | |
| 38 | 01435-00625 | BOLT | 50019-51000 | |
| 38 | \0\01435-00620 | BOLT | 50001-50018 |
