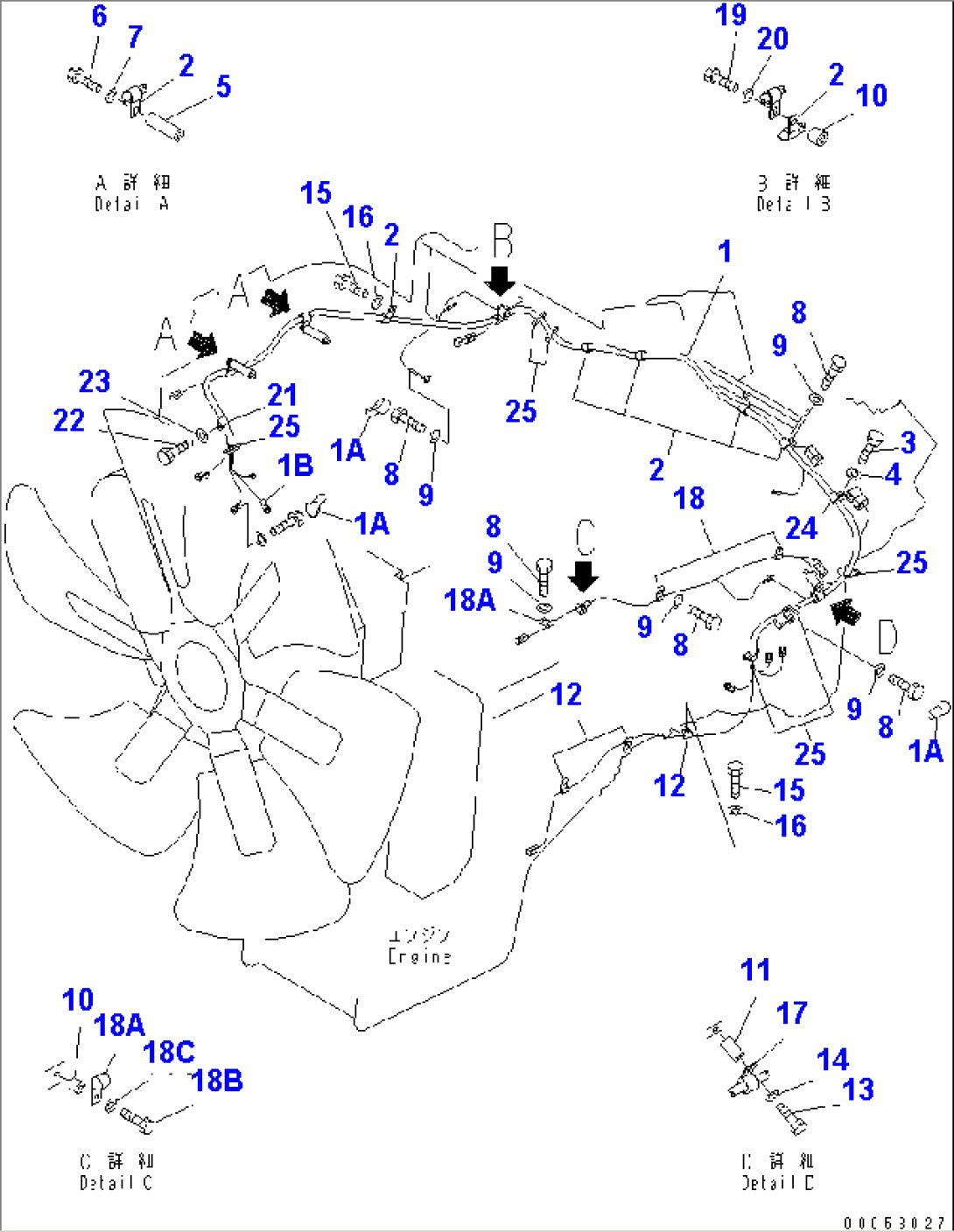

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 561-06-83321 | WIRING HARNESS | 7001-7168 | |
| 1A | 08038-00519 | CAP | 7001-7168 | |
| 1B | 08038-04030 | CAP | 7001-7168 | |
| 2 | 04434-51510 | CLIP | 7001-7168 | |
| 3 | 01010-81025 | BOLT | 7001-7168 | |
| 4 | 01643-31032 | WASHER | 7001-7168 | |
| 5 | 195-979-3570 | COLLAR | 7001-7168 | |
| 6 | 01010-81090 | BOLT | 7001-7168 | |
| 7 | 01643-31032 | WASHER | 7001-7168 | |
| 8 | 01010-81016 | BOLT | 7001-7168 | |
| 9 | 01643-31032 | WASHER | 7001-7168 | |
| 10 | 6131-22-3750 | BOSS | 7116-7168 | |
| 10 | 6131-22-3750 | BOSS | 7001-7115 | |
| 11 | 6206-11-4490 | SPACER | 7001-7168 | |
| 12 | 04434-50810 | CLIP | 7003-7168 | |
| 12 | 04434-50510 | CLIP | 7001-7002 | |
| 13 | 01010-81060 | BOLT | 7001-7168 | |
| 14 | 01643-31032 | WASHER | 7001-7168 | |
| 15 | 01010-81020 | BOLT | 7001-7168 | |
| 16 | 01643-31032 | WASHER | 7001-7168 | |
| 17 | 04434-52110 | CLIP | 7001-7168 | |
| 18 | 04434-50810 | CLIP | 7003-7168 | |
| 18 | 04434-50810 | CLIP | 7001-7002 | |
| 18A | 04434-50812 | CLIP | 7001-7168 | |
| 18B | 01010-81240 | BOLT | 7001-7168 | |
| 18C | 01643-31232 | WASHER | 7001-7168 | |
| 19 | 01010-81040 | BOLT | 7003-7168 | |
| 19 | 01010-81040 | BOLT | 7001-7002 | |
| 20 | 01643-31032 | WASHER | 7003-7168 | |
| 20 | 01643-31032 | WASHER | 7001-7002 | |
| 21 | 04434-51912 | CLIP | 7001-7168 | |
| 22 | 01010-81225 | BOLT | 7001-7168 | |
| 23 | 01643-31232 | WASHER | 7001-7168 | |
| 24 | 08193-21012 | CLIP | 7001-7168 | |
| 25 | 08034-20834 | BAND | 7001-7168 |
