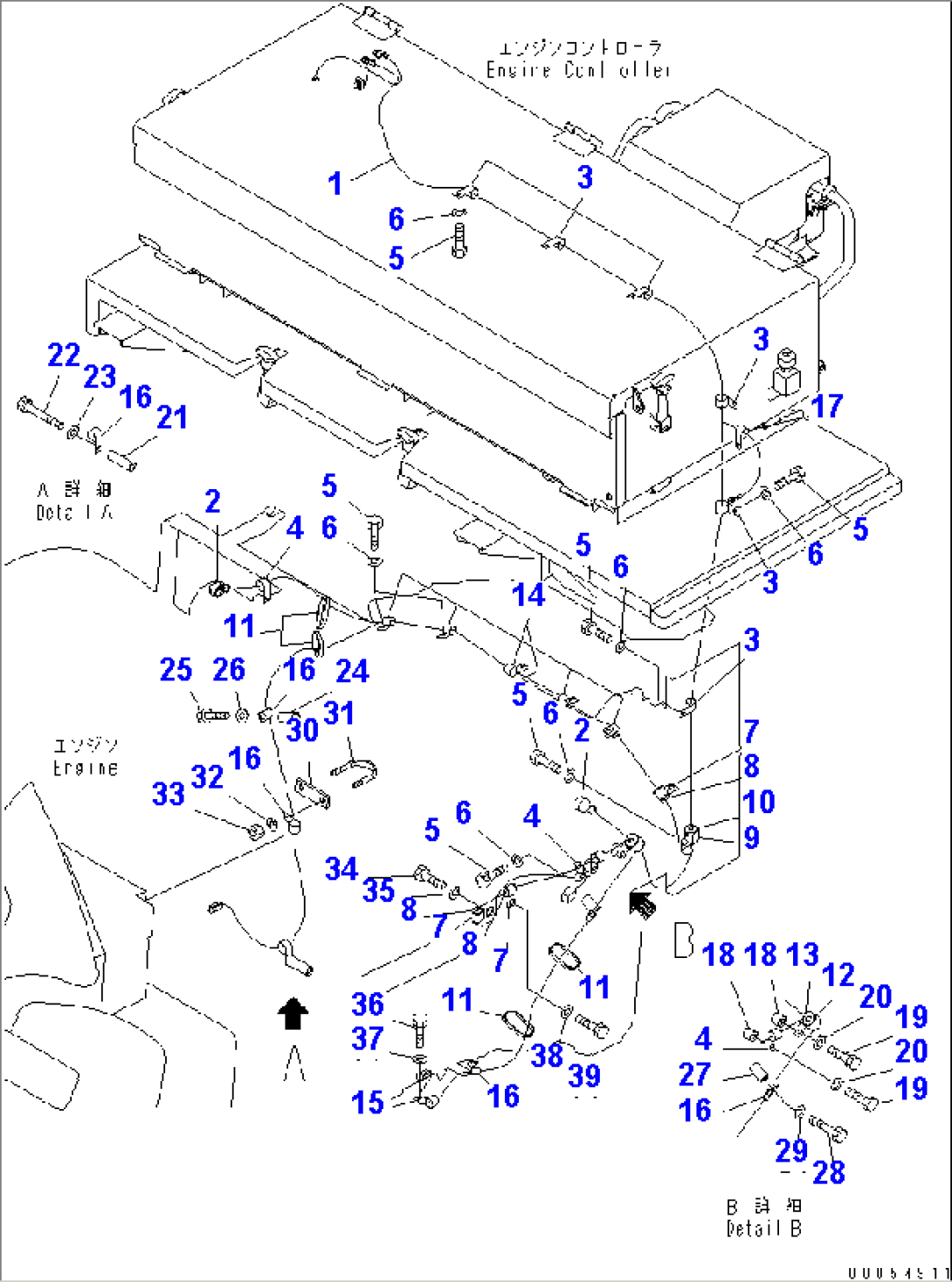

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 561-06-85690 | WIRING HARNESS | 7001-7168 | |
| 2 | 08038-02027 | CAP | 7001-7168 | |
| 3 | 04434-51810 | CLIP | 7001-7168 | |
| 4 | 04434-51010 | CLIP | 7001-7168 | |
| 5 | 01010-81016 | BOLT | 7001-7168 | |
| 6 | 01643-31032 | WASHER | 7001-7168 | |
| 7 | 04434-51710 | CLIP | 7001-7168 | |
| 8 | 07095-20211 | CUSHION | 7001-7168 | |
| 9 | 04434-52511 | CLIP | 7001-7168 | |
| 10 | 07095-20318 | CUSHION | 7001-7168 | |
| 11 | 08034-20834 | BAND | 7001-7168 | |
| 12 | 04434-52711 | CLIP | 7001-7168 | |
| 13 | 07095-20418 | CUSHION | 7001-7168 | |
| 14 | 04434-51410 | CLIP | 7001-7168 | |
| 15 | 04434-50812 | CLIP | 7001-7168 | |
| 16 | 04434-50810 | CLIP | 7001-7168 | |
| 17 | 04434-50610 | CLIP | 7001-7168 | |
| 18 | 6131-22-3750 | BOSS | 7001-7168 | |
| 19 | 01010-81040 | BOLT | 7001-7168 | |
| 20 | 01643-31032 | WASHER | 7001-7168 | |
| 21 | 195-979-3570 | COLLAR | 7001-7168 | |
| 22 | 01010-81090 | BOLT | 7001-7168 | |
| 23 | 01643-31032 | WASHER | 7001-7168 | |
| 24 | 195-979-5190 | COLLAR | 7001-7168 | |
| 25 | 01010-81070 | BOLT | 7001-7168 | |
| 26 | 01643-31032 | WASHER | 7001-7168 | |
| 27 | 6206-11-4490 | SPACER | 7001-7168 | |
| 28 | 01010-81060 | BOLT | 7001-7168 | |
| 29 | 01643-31032 | WASHER | 7001-7168 | |
| 30 | 569-54-41380 | PLATE | 7001-7168 | |
| 31 | 07283-36155 | CLIP | 7001-7168 | |
| 32 | 01643-31032 | WASHER | 7001-7168 | |
| 33 | 01597-01009 | NUT | 7001-7168 | |
| 34 | 01010-81025 | BOLT | 7001-7168 | |
| 35 | 01643-31032 | WASHER | 7001-7168 | |
| 36 | 01010-81220 | BOLT | 7001-7168 | |
| 37 | 01643-31232 | WASHER | 7001-7168 | |
| 38 | 144-854-1890 | WASHER | 7001-7168 | |
| 39 | 01010-81030 | BOLT | 7001-7168 |
