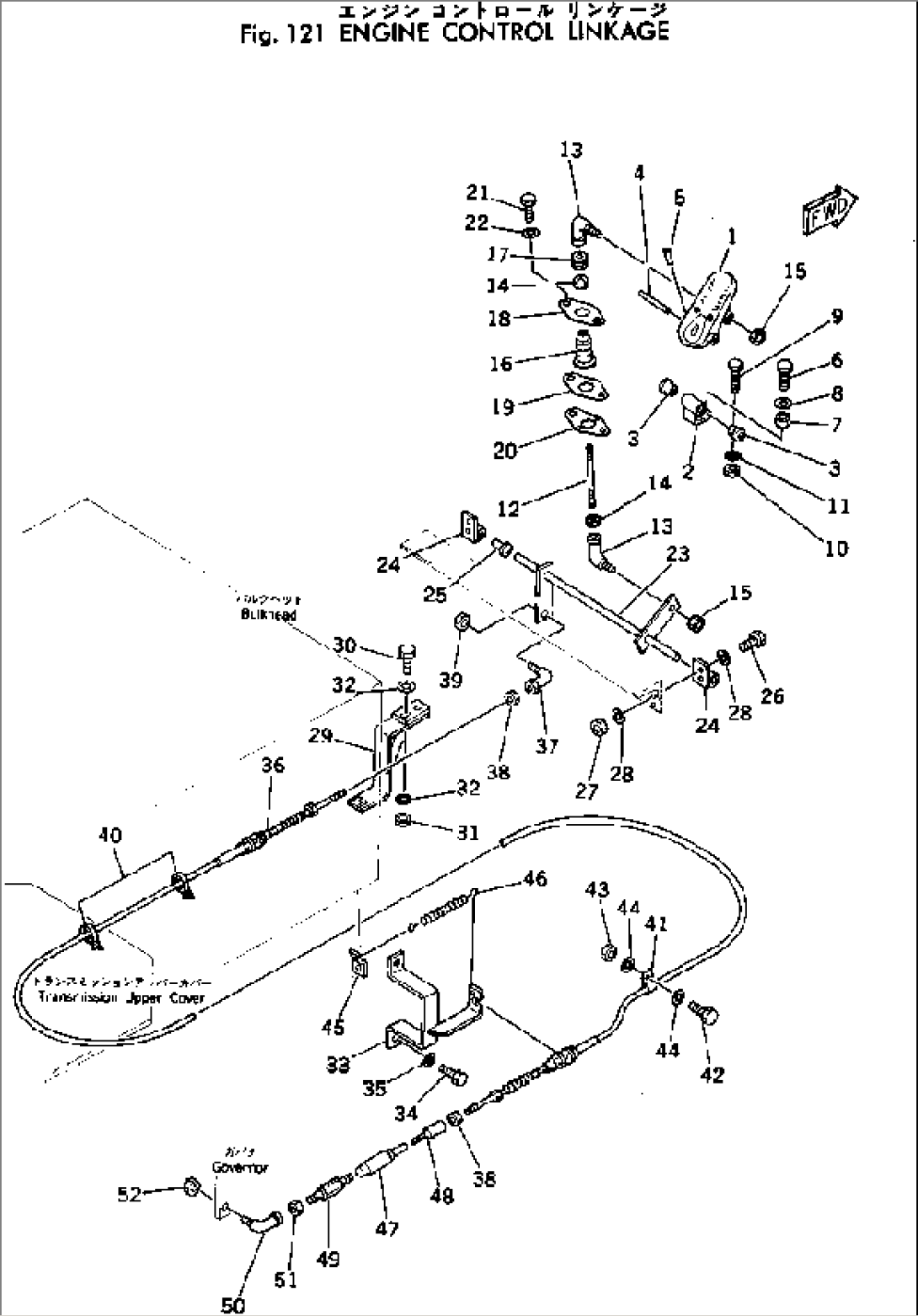

| Item | Part No. | Part Name | Qty | Serial No. |
| 381-875853-1 | PEDAL ASS'Y | 10001- | ||
| 1 | 381-875855-1 | PEDAL | 10001- | |
| 2 | 381-875857-1 | HINGE | 10001- | |
| 3 | 382-370686-1 | BUSHING | 10001- | |
| 4 | 382-303491-1 | PIN | 10001- | |
| 5 | 380-143606-1 | PIN | 10001- | |
| 6 | 382-025482-1 | BOLT | 10001- | |
| 7 | 382-026110-1 | NUT | 10001- | |
| 8 | 382-025532-1 | WASHER | 10001- | |
| 9 | 382-026287-1 | BOLT | 10001- | |
| 10 | 382-025519-1 | NUT | 10001- | |
| 11 | 382-025532-1 | WASHER | 10001- | |
| 12 | 385-10258871 | ROD | 10001- | |
| 13 | 385-10199691 | END | 10001- | |
| 14 | 382-025521-1 | NUT | 10001- | |
| 15 | 382-027036-1 | NUT | 10001- | |
| 16 | 385-10234991 | BOOT | 10001- | |
| 17 | 385-10267912 | BOSS | 10001- | |
| 18 | 385-10371001 | PLATE | 10001- | |
| 19 | 385-10235001 | GASKET | 10001- | |
| 20 | 385-10267951 | PLATE | 10001- | |
| 21 | 382-024839-1 | BOLT | 10001- | |
| 22 | 382-025534-1 | WASHER | 10001- | |
| 23 | 385-10244291 | LEVER | 10001- | |
| 24 | 380-887916-1 | BUSHING | 10001- | |
| 25 | 380-885063-1 | BEARING | 10001- | |
| 26 | 382-025483-1 | BOLT | 10001- | |
| 27 | 382-025519-1 | NUT | 10001- | |
| 28 | 382-025532-1 | WASHER | 10001- | |
| 29 | 385-10267921 | BRACKET | 10001- | |
| 30 | 382-025654-1 | BOLT | 10001- | |
| 31 | 382-025520-1 | NUT | 10001- | |
| 32 | 382-025533-1 | WASHER | 10001- | |
| 33 | 385-10267932 | SUPPORT | 10001- | |
| 34 | 382-024840-1 | BOLT | 10001- | |
| 35 | 382-025534-1 | WASHER | 10001- | |
| 36 | 381-987389-2 | CABLE | 10001- | |
| 37 | 385-10199681 | END | 10001- | |
| 38 | 382-025930-1 | NUT | 10001- | |
| 39 | 382-027122-1 | NUT | 10001- | |
| 40 | 381-976195-1 | STRAP | 10001- | |
| 41 | 381-299407-1 | CLAMP | 10001- | |
| 42 | 382-024840-1 | BOLT | 10001- | |
| 43 | 382-025522-1 | NUT | 10001- | |
| 44 | 382-025534-1 | WASHER | 10001- | |
| 45 | 385-11038751 | RETAINER | 10001- | |
| 46 | 380-130801-1 | SPRING | 10001- | |
| 47 | 09290-10000 | ABSORBER | 10001- | |
| 48 | 385-10267941 | ADAPTER | 10001- | |
| 49 | 381-987886-1 | ROD | 10001- | |
| 50 | 385-10199691 | END | 10001- | |
| 51 | 382-025521-1 | NUT | 10001- | |
| 52 | 382-027036-1 | NUT | 10001- |
