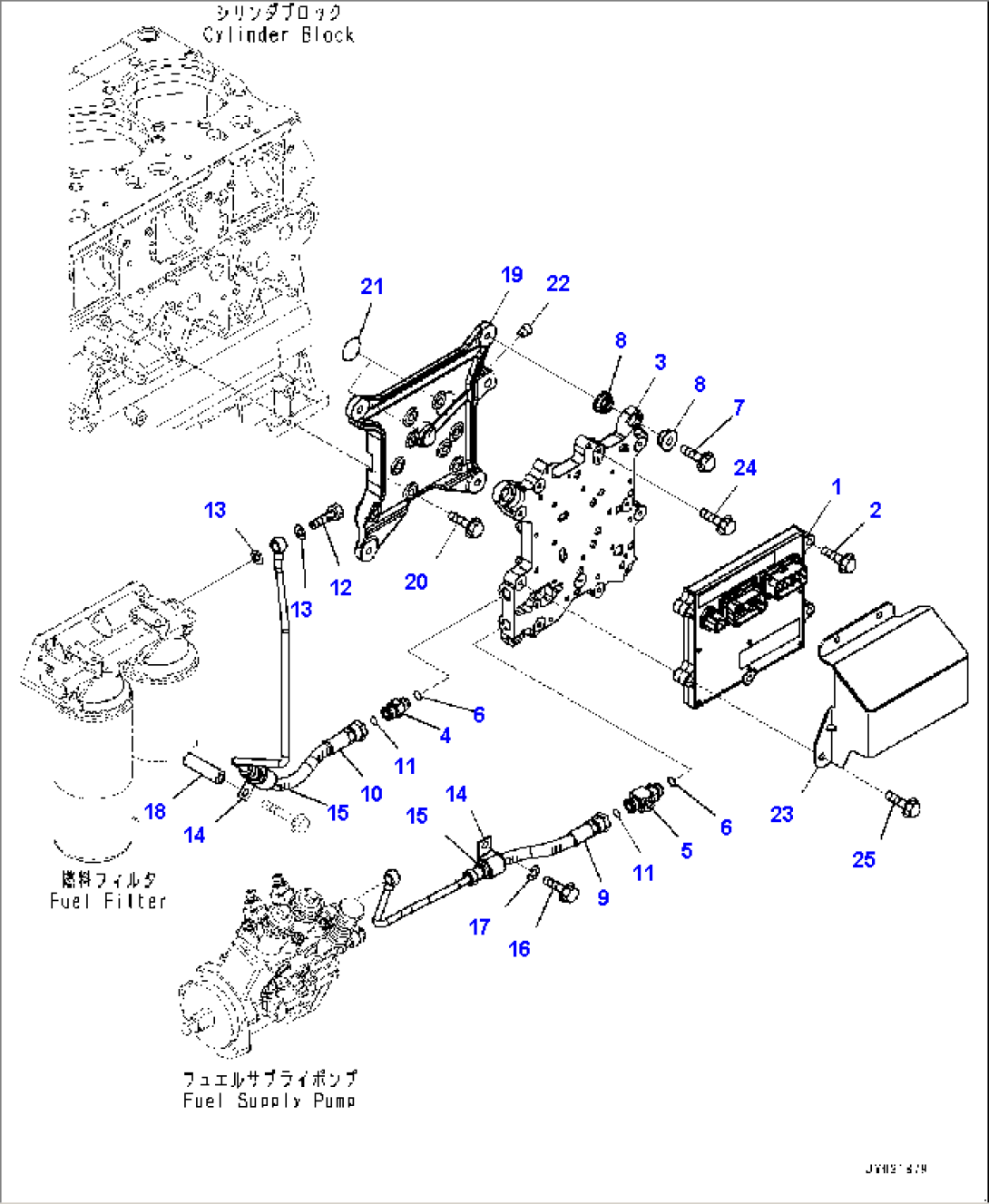

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 600-462-3200 | Controller Assembly | 630228-630623 | |
| 2 | 01435-00840 | Bolt | 630228-630623 | |
| 3 | 6219-81-7100 | Cooler, Fuel | 630228-630623 | |
| 6261-81-7130 | O-ring | 630228-630623 | ||
| 4 | 02781-00420 | Union | 630228-630623 | |
| 5 | 6261-71-7140 | Elbow | 630228-630623 | |
| 6 | 07002-21823 | O-ring | 630228-630623 | |
| 7 | 01435-01045 | Bolt | 630228-630623 | |
| 8 | 6251-81-7210 | Cushion | 630228-630623 | |
| 9 | 6261-71-6180 | Hose, Inlet | 630228-630623 | |
| 10 | 6261-71-6650 | Hose, Return | 630228-630623 | |
| 11 | 02896-21012 | O-ring | 630228-630623 | |
| 12 | 07206-31014 | Bolt, Joint | 630228-630623 | |
| 13 | 07005-01412 | Seal, Washer | 630228-630623 | |
| 14 | 04434-52511 | Clip | 630228-630623 | |
| 15 | 07095-30318 | Cushion | 630228-630623 | |
| 16 | 01435-01020 | Bolt | 630228-630623 | |
| 17 | 01643-31032 | Washer | 630228-630623 | |
| 18 | 6136-11-5120 | Spacer | 630228-630623 | |
| 19 | 6261-81-7310 | Bracket | 630228-630623 | |
| 20 | 01435-01045 | Bolt | 630228-630623 | |
| 21 | 07000-73038 | O-ring | 630228-630623 | |
| 22 | 07043-70211 | Plug | 630228-630623 | |
| 23 | 6261-81-7330 | Cover | 630228-630623 | |
| 24 | 01435-00820 | Bolt | 630228-630623 | |
| 25 | 01435-00845 | Bolt | 630228-630623 |
