| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 426-54-13711 | COVER | 11277- | |
| 2 | 01010-81020 | BOLT | 10987- | |
| 3 | 01643-31032 | WASHER | 10987- | |
| 4 | 426-54-13720 | PLATE | 11277- | |
| 5 | 426-54-14460 | RUBBER,L.H. | 11277- | |
| 6 | 362-56-41740 | RIVET,R.H. | 11277- |
- Главная
- Каталог запчастей
- Колесные погрузчики
- Wa600 1 s/n 10001 up (overseas version)
- Frame and guard
- Engine cover (center bracket)(#11277 )
Поиск по каталогу

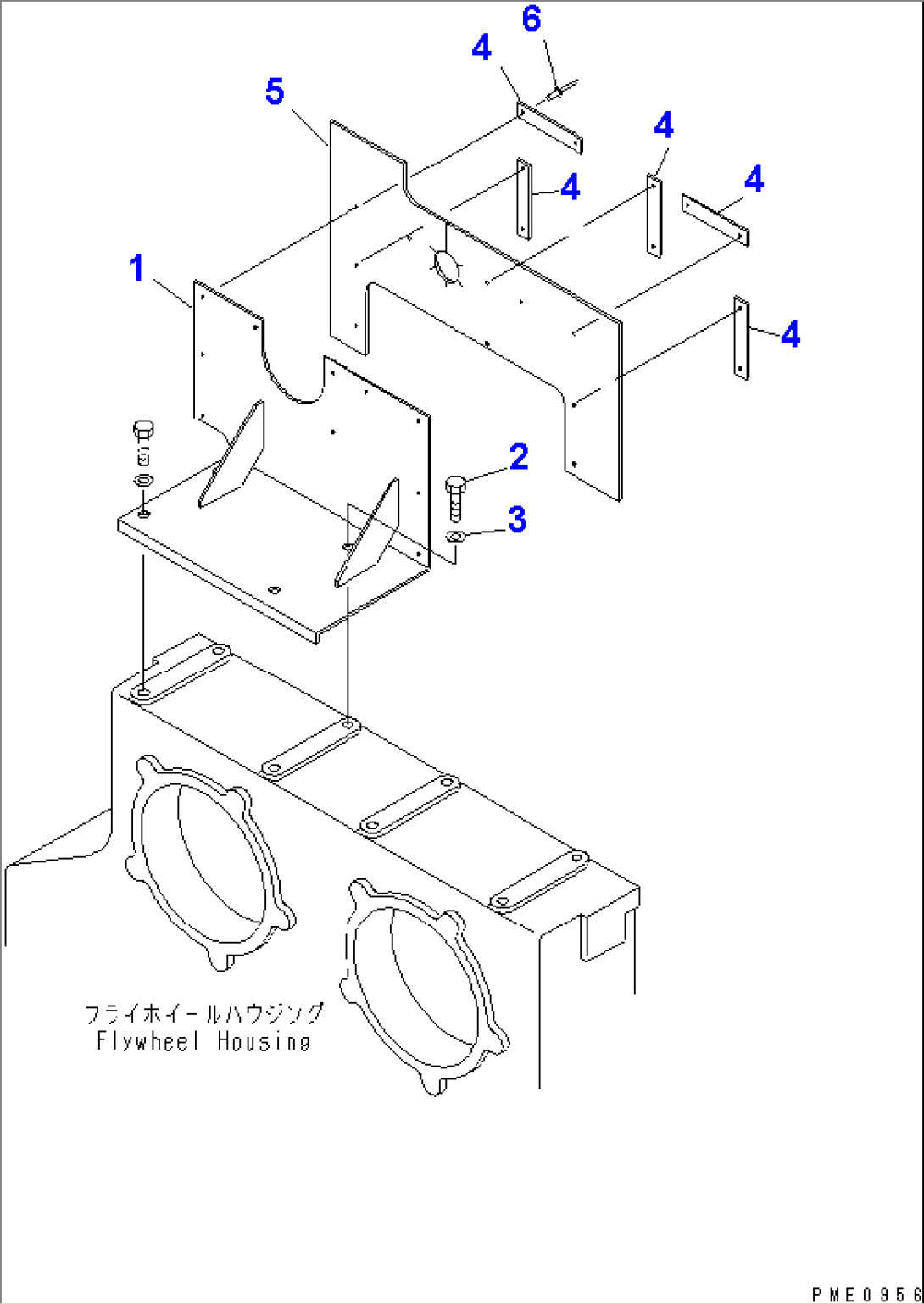

ENGINE COVER (CENTER BRACKET)(#11277-)
