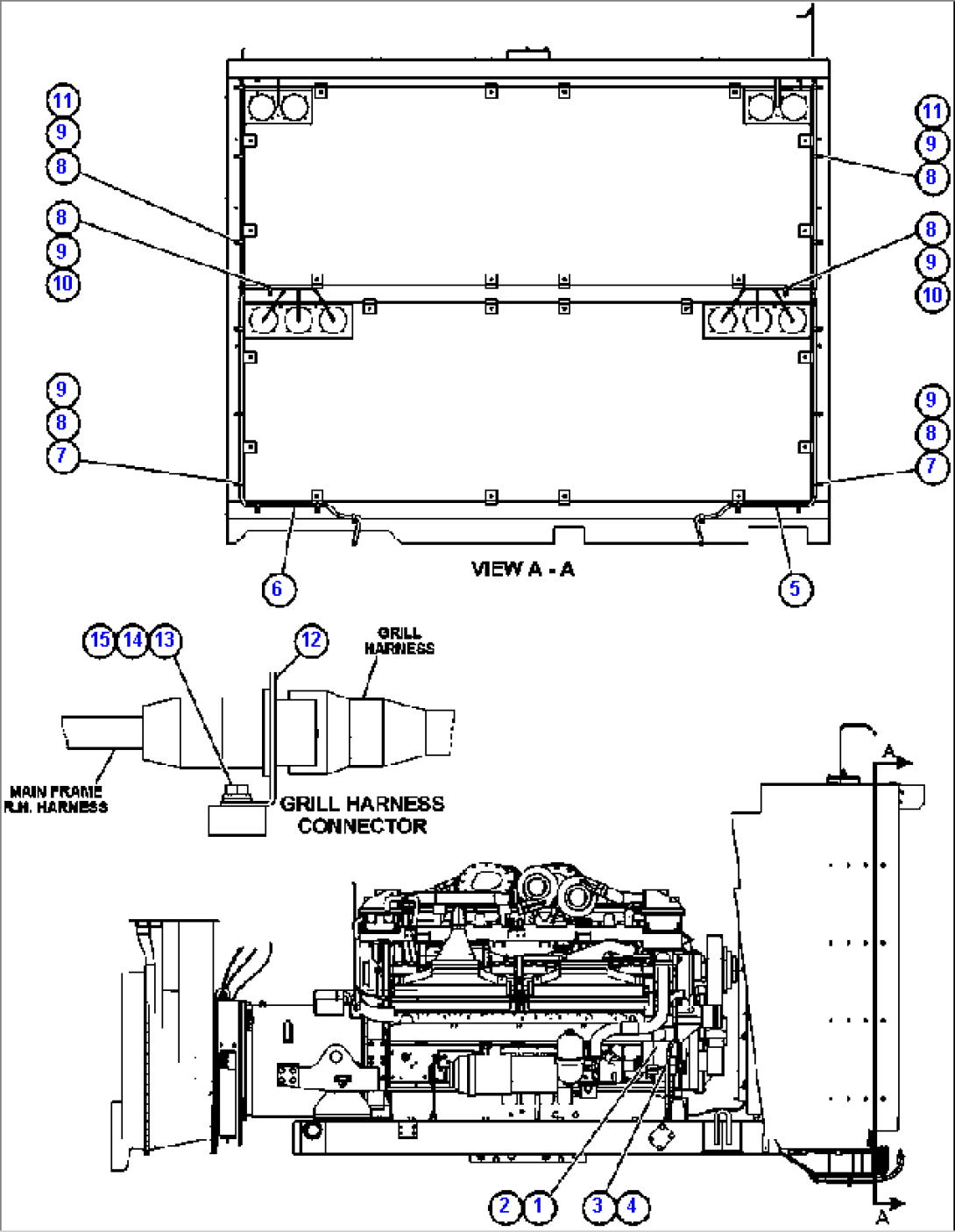

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | XA2085 | ALTERNATOR, BATTERY CHARGING (SEE INDEX) | ||
| 2 | XA0117 | BELT, ALTERNATOR DRIVE | ||
| 3 | CH3863 | CABLE, RED - POSITIVE | ||
| 4 | CH4045 | CABLE, BLACK - NEGATIVE | ||
| 5 | EJ8327 | HARNESS, GRILLE - R.H. | ||
| 6 | EJ6470 | HARNESS, GRILLE - L.H. | ||
| 7 | TC6058 | CLAMP - 1 1/2" I.D. | ||
| 8 | MM0713 | FLAT WASHER - M10 | ||
| 9 | MM0178 | NUT - M10 X 1.50 | ||
| 10 | 424243 | CLAMP - 3/8" I.D. | ||
| 11 | TG2568 | CLAMP - 7/8 I.D. | ||
| 12 | EJ8368 | BRACKET, GRILLE HARNESS SOCKET | ||
| 13 | MM0581 | CAPSCREW - M6 X 1.00 X 16 | ||
| 14 | MM0459 | FLAT WASHER - M6 | ||
| 15 | MM0469 | LOCKWASHER - M6 |
