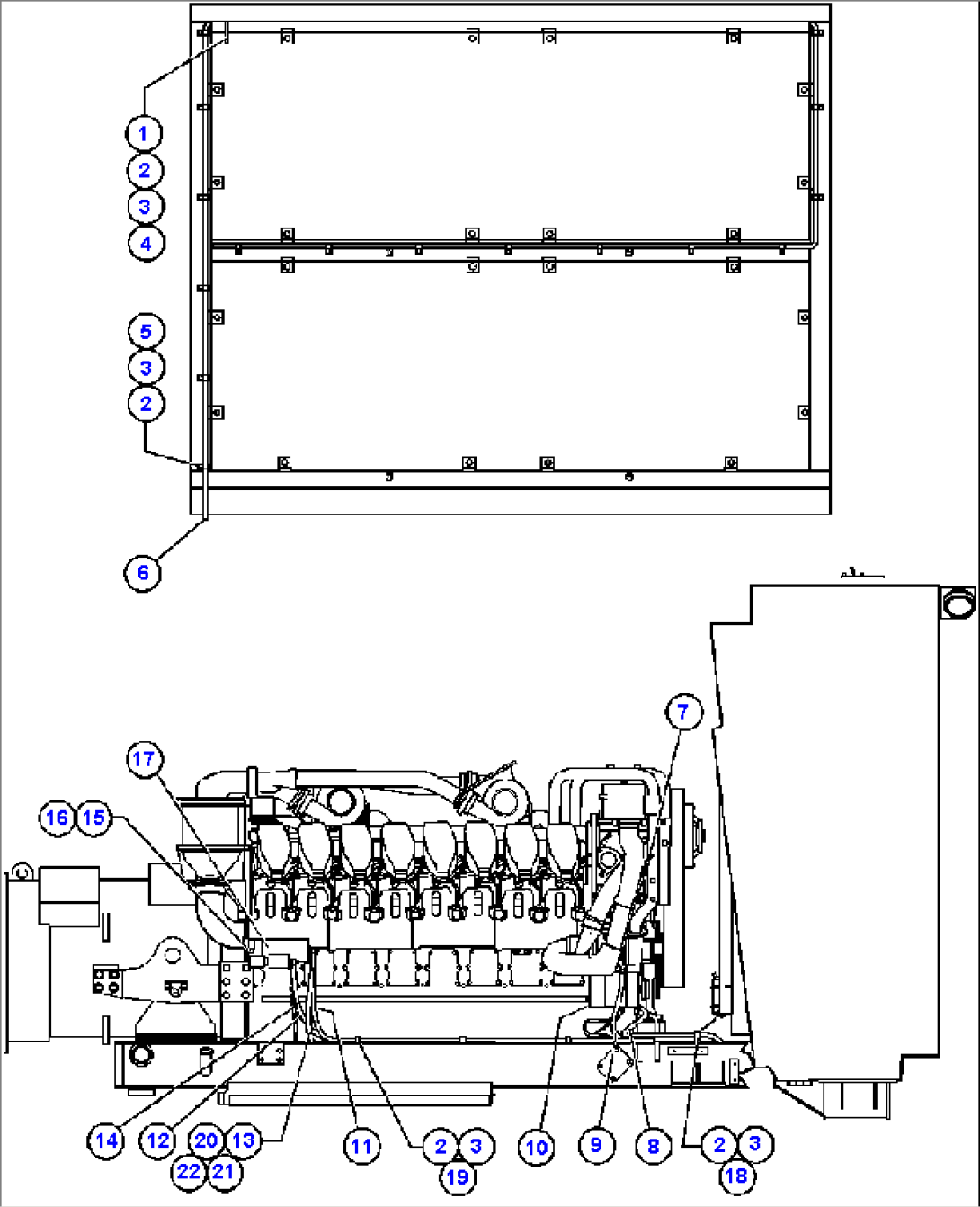

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | TG2568 | CLAMP | ||
| 2 | MM0471 | LOCKWASHER - M10 | ||
| 3 | MM0178 | NUT - M10 | ||
| 4 | MM0647 | STUD, WELD - M10 | ||
| 5 | TG2568 | CLAMP | ||
| 6 | EG7732 | HARNESS | ||
| 7 | PC0205 | SENDER, TEMP | ||
| 8 | CH2742 | CABLE, BATTERY | ||
| 9 | CH2741 | CABLE, BATTERY | ||
| 10 | EF2654 | ALTERNATOR, BATTERY CHARGING (SEE INDEX) | ||
| 10 | BF4357 | BELT, ALTERNATOR - 24V | ||
| 11 | CH2740 | CABLE, BATTERY | ||
| 12 | CH2739 | CABLE, BATTERY | ||
| 13 | TX2477 | CABLE, GROUND | ||
| 14 | EB0595 | WIRE | ||
| 15 | MM0474 | LOCKWASHER - M16 | ||
| 16 | WB1107 | CAPSCREW - M16 X 2 X 45 (12 POINT) | ||
| 17 | PB8726 | MOTOR, CRANKING | ||
| 18 | VN9914 | CLAMP | ||
| 19 | TF6924 | CLAMP | ||
| 20 | TC1234 | CAPSCREW - 3/8" - 16NC X 3/4" | ||
| 21 | TC1231 | LOCKWASHER - 3/8" | ||
| 22 | TR4436 | FLAT WASHER - 3/8" |
