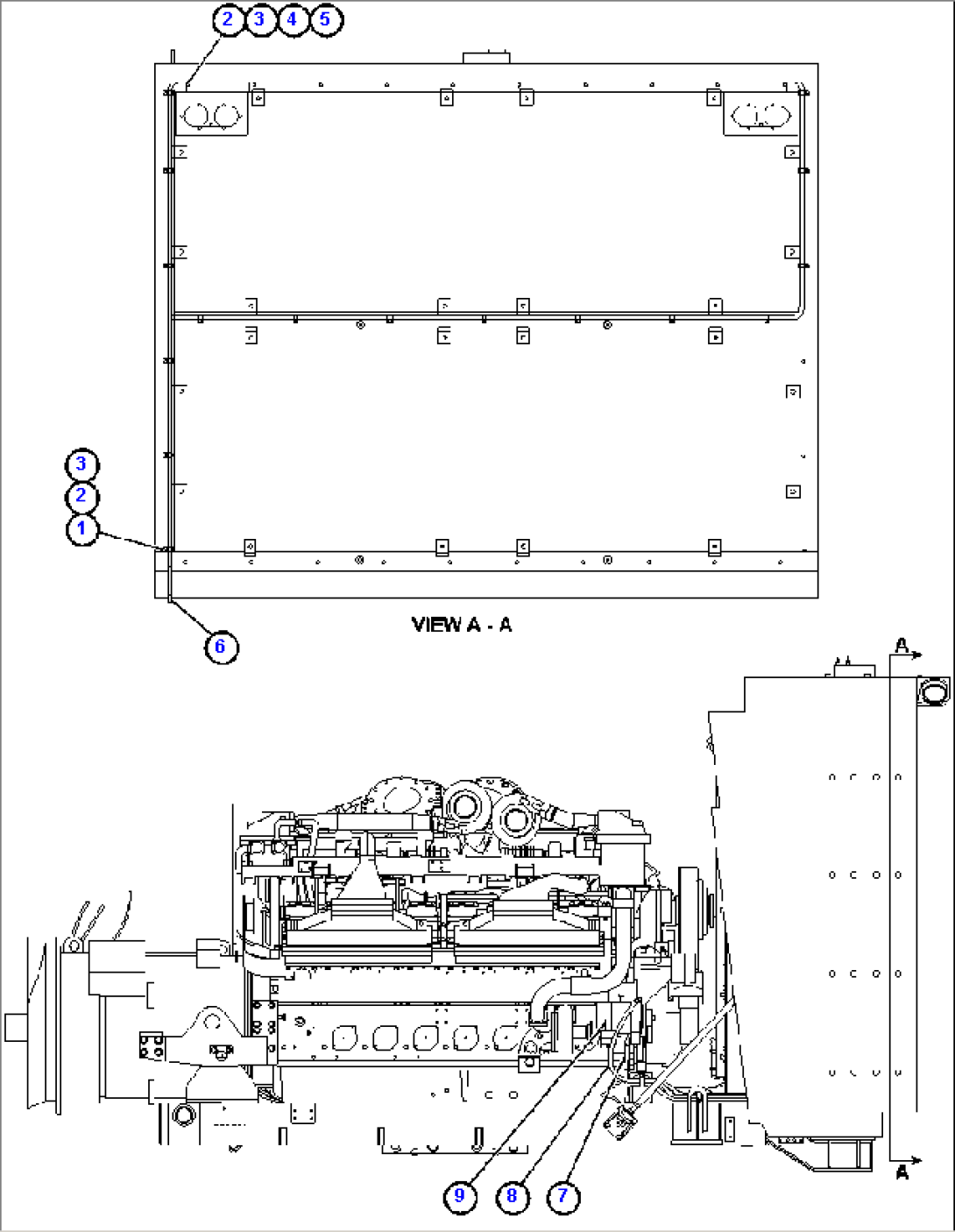

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | TG2568 | CLAMP | ||
| 2 | MM0471 | LOCKWASHER - M10 | ||
| 3 | MM0178 | NUT - M10 X 1.50 | ||
| 4 | MM0647 | STUD, WELD - M10 X 20 | ||
| 5 | 424243 | CLAMP | ||
| 6 | EH2333 | HARNESS, GRILLE | ||
| 7 | CH4009 | CABLE | ||
| 8 | CH3859 | CABLE | ||
| 9 | XA0179 | ALTERNATOR - 24V (SEE INDEX) | ||
| 9 | BF4993 | BELT, DRIVE - 24 ALTERNATOR |
