| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 425-43-21110 | BRACKET | 50001-52000 | |
| 2 | 01435-01020 | BOLT | 50001-52000 | |
| 3 | 425-43-21140 | PLATE | 50001-52000 | |
| 4 | 424-43-11240 | CUSHION | 50001-52000 | |
| 5 | 01580-10605 | NUT | 50001-52000 | |
| 6 | 424-43-11250 | WASHER | 50001-52000 |
- Главная
- Каталог запчастей
- Колесные погрузчики
- Wa500 3 s/n 50001 up
- Engine related parts
- Engine (engine control bracket)(#50001 52000)
Поиск по каталогу

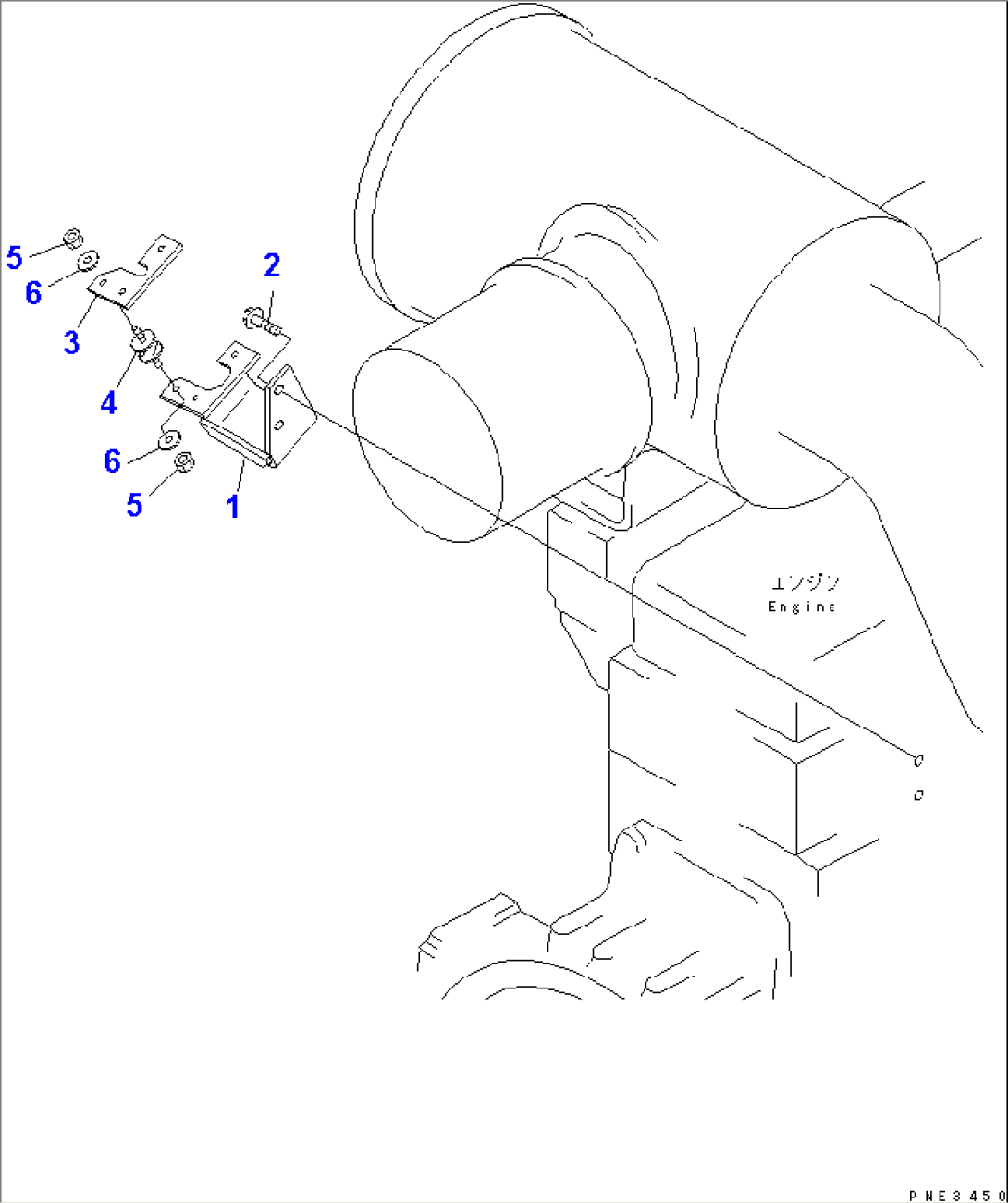

ENGINE (ENGINE CONTROL BRACKET)(#50001-52000)
