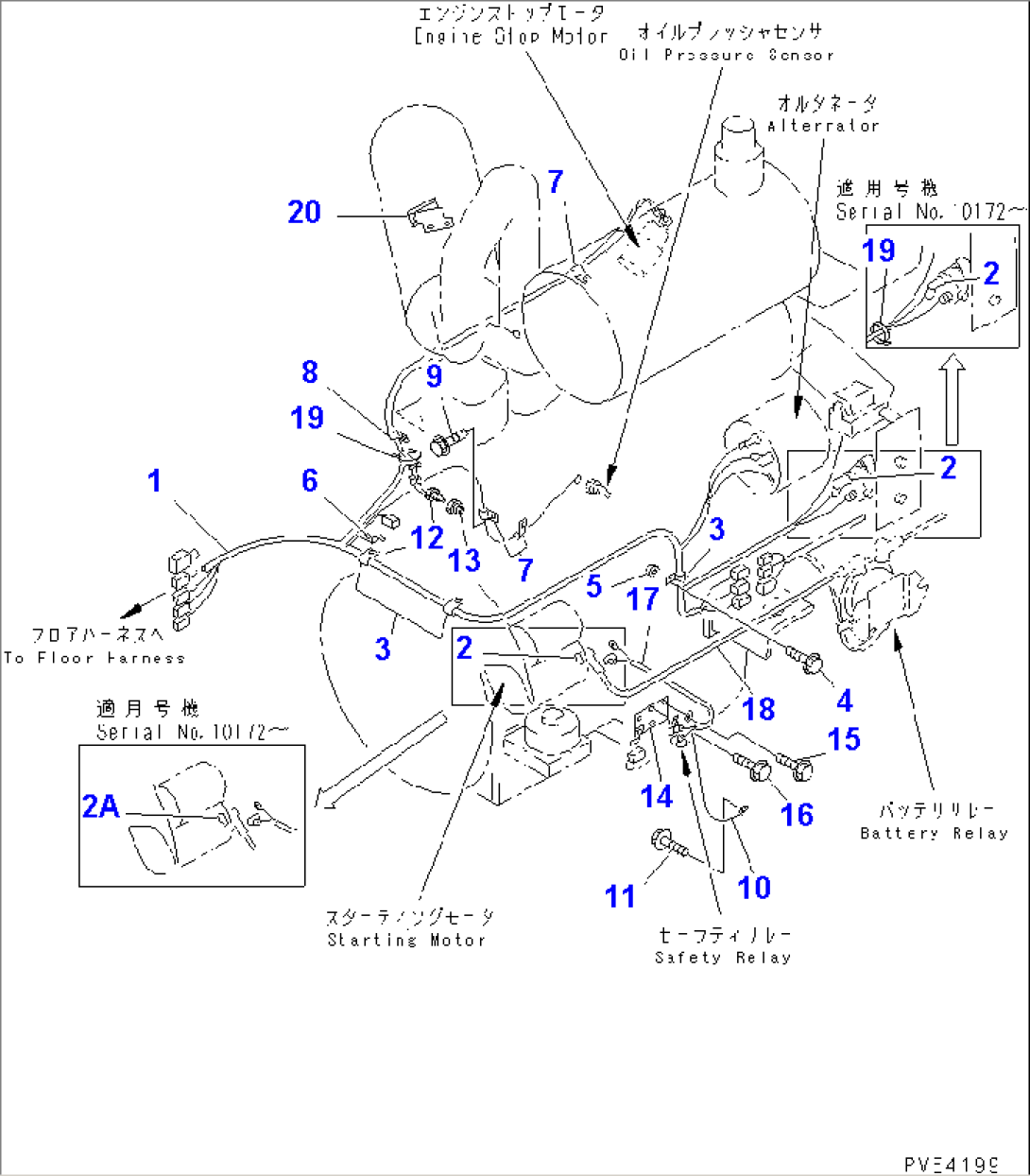

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 415-06-22153 | WIRING HARNESS | 10001-11086 | |
| 1 | 08020-10000 | DIODE | 10001-11086 | |
| 2 | 08038-00525 | CAP | 10172-11086 | |
| 2 | 08038-02027 | CAP | 10001-10171 | |
| 2A | 08038-06031 | CAP | 10172-11086 | |
| 3 | 08036-03014 | CLIP | 10001-11086 | |
| 4 | 01435-01235 | BOLT | 10172-11086 | |
| 4 | 01435-01225 | BOLT | 10001-10171 | |
| 5 | 424-54-11350 | SPACER | 10172-11086 | |
| 5 | \0\424-54-14230 | SPACER | 10001-10171 | |
| 6 | 08053-00912 | CLIP | 10001-11086 | |
| 7 | 08036-01014 | CLIP | 10001-11086 | |
| 8 | 08036-01814 | CLIP | 10001-11086 | |
| 9 | 01435-01216 | BOLT | 10001-11086 | |
| 10 | 417-06-12420 | WIRE | 10001-11086 | |
| 11 | 01435-01216 | BOLT | 10001-11086 | |
| 12 | 232-06-52410 | SENSOR,THERMOSTAT | 10001-11086 | |
| 13 | 416-06-21220 | ADAPTER | 10001-11086 | |
| 14 | 415-06-22231 | PLATE | 10001-11086 | |
| 15 | 01435-01220 | BOLT | 10001-11086 | |
| 16 | 01435-00812 | BOLT | 10001-11086 | |
| 17 | 418-06-21122 | WIRE | 10172-11086 | |
| 17 | \0\418-06-21121 | WIRE | 10001-10171 | |
| 17 | 08038-02027 | CAP | 10001-11086 | |
| 18 | 415-06-22193 | WIRE | 10082-11086 | |
| 18 | \0\415-06-22192 | WIRE | 10001-10081 | |
| 19 | 08034-20519 | BAND | 10172-11086 | |
| 19 | 08034-20519 | BAND | 10001-10171 | |
| 20 | 415-01-22121 | PLATE | 10001-11086 |
