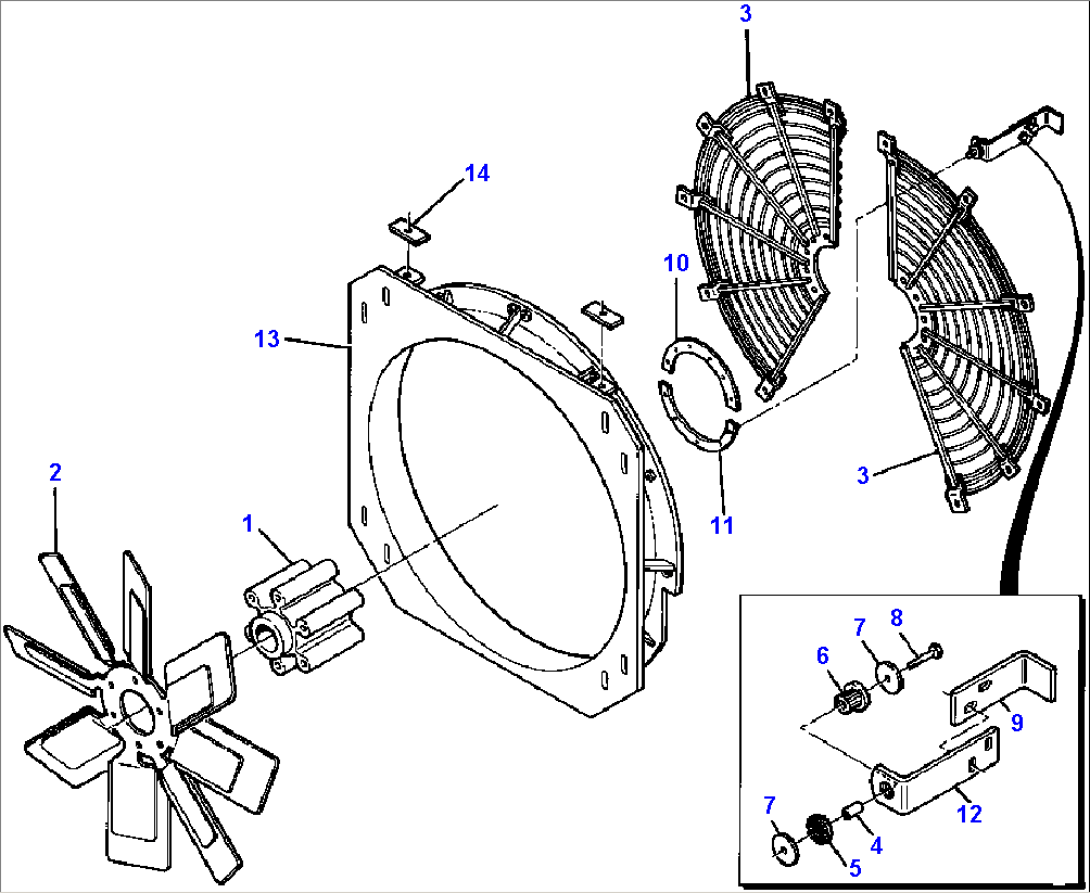

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 1171 761 C1 | SPACER | ||
| 2 | 1137 688 C1 | FAN, BLOWER | ||
| 25 688 R1 | BOLT, 1/2NC X 7 | |||
| 25 546 R1 | WASHER, 1/2 FLAT | |||
| 3 | 1109 700 C1 | GUARD, FAN | ||
| 140 483 H | BOLT, 3/8NC X 1 1/4 | |||
| 25 544 R1 | WASHER, 3/8 FLAT | |||
| 4 | 1134 969 C1 | SPACER | ||
| 5 | 1134 974 C1 | RING | ||
| 6 | 1134 975 C1 | BUSHING | ||
| 7 | 1134 968 C1 | WASHER | ||
| 8 | 277 232 R1 | BOLT, 3/8NC X 2 3/4 | ||
| 9 | 1132 981 C2 | SUPPORT | ||
| 24 862 R1 | BOLT, 1/2NC X 1 1/2 | |||
| 25 546 R1 | WASHER, 1/2 FLAT | |||
| 9412 230 | NUT, 1/2NC LOCK | |||
| 275 804 R1 | BOLT, 3/8NC X 3 | |||
| 25 544 R1 | WASHER, 3/8 FLAT | |||
| 10 | 1132 128 C1 | SUPPORT | ||
| 11 | 1132 129 C1 | SUPPORT | ||
| 12 | 1134 970 C1 | SUPPORT | ||
| 13 | 1134 952 C1 | SHROUD | ||
| 173 345 H1 | BOLT, 3/8NC X 5 1/2 | |||
| 25 544 R1 | WASHER, 3/8 FLAT | |||
| 14 | 602 792 C1 | BAR, TAPPING - 3/8NC | ||
| 25 522 R1 | NUT, 3/8NC | |||
| 24 861 R1 | BOLT, 1/2 NC X 1 1/4 | |||
| 25 555 R1 | WASHER, 1/2 FLAT |
