| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | EB1351 | GUARD | ||
| 2 | VL2993 | LOCKNUT - 3/4" - 10NC | ||
| 3 | VN9066 | CAPSCREW - 3/4" - 10NC X 2" | ||
| 4 | VH3402 | CAPSCREW - 5/8" - 11NC X 1 3/4" | ||
| 5 | C1541 | LOCKWASHER - 5/8" | ||
| 6 | WA0361 | FLAT WASHER - 5/8" | ||
| 7 | (NOT USED IN THIS APPLICATION) |
- Главная
- Каталог запчастей
- Самосвалы
- Bfa40 6 210m (bfa40 ee up) (dh640) (qsk 19)
- Engine/transmission group
- Engine guard installation
Поиск по каталогу

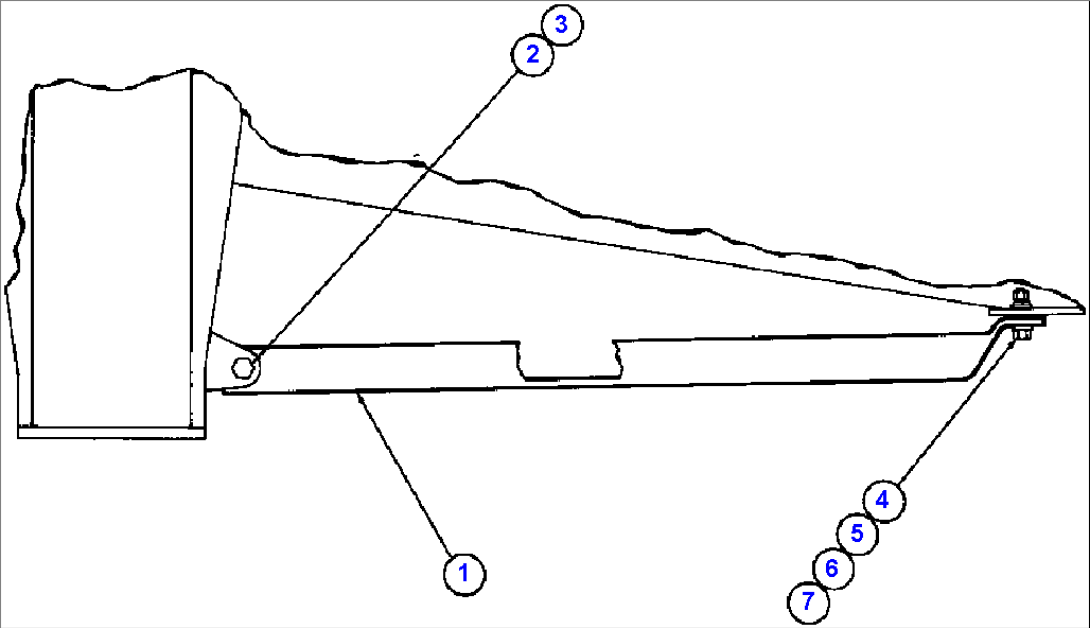

ENGINE GUARD INSTALLATION
