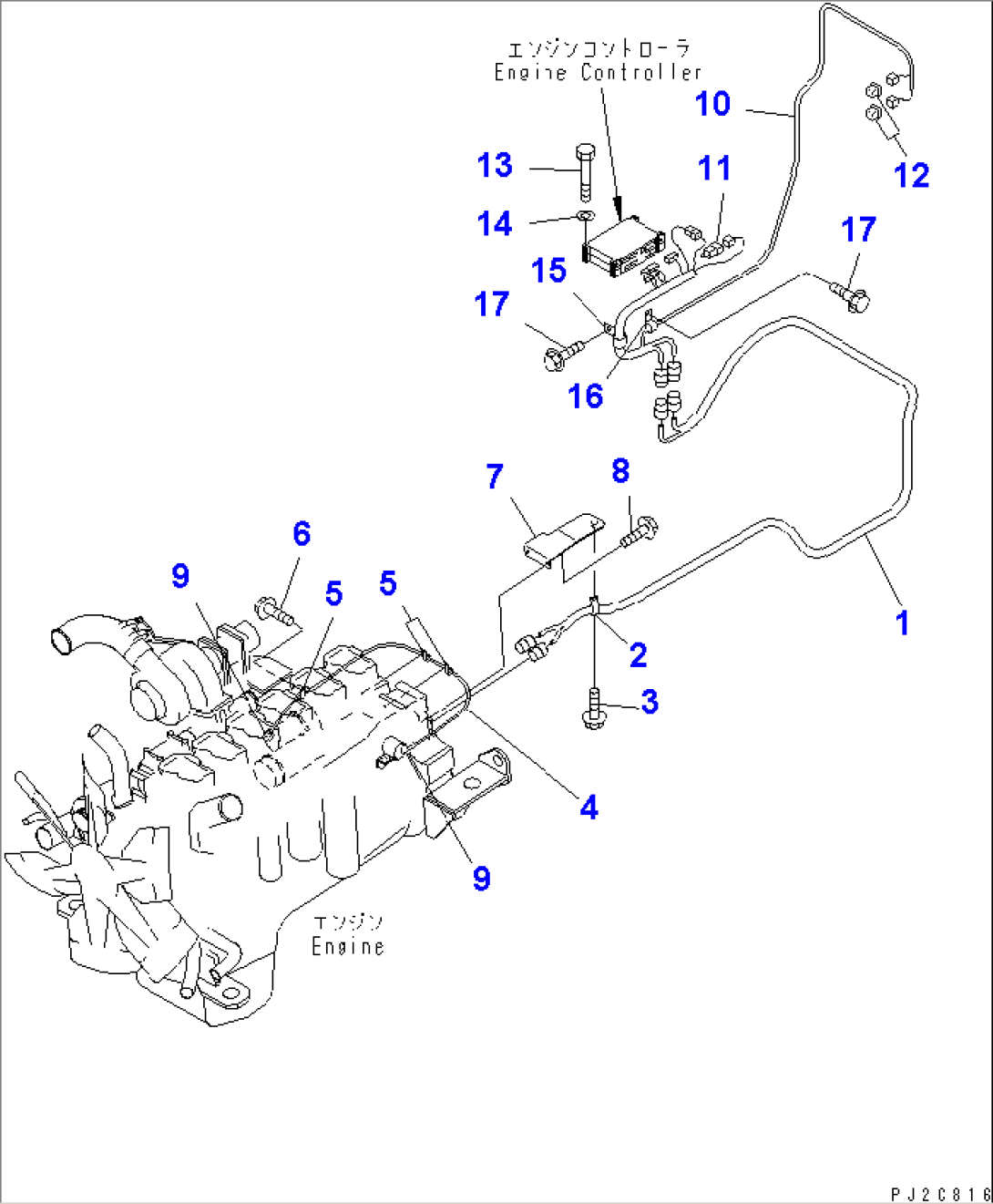

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 56B-06-11461 | WIRING HARNESS,ENGINE | A10001- | |
| 2 | 08036-03014 | CLIP | A10001- | |
| 3 | 01435-01016 | BOLT | A10001- | |
| 4 | 56B-06-14530 | CABLE,RIBBON HEATER | A10001- | |
| 5 | 08036-00814 | CLIP | A10001- | |
| 6 | 01435-01016 | BOLT | A10001- | |
| 7 | 56B-06-11140 | BRACKET | A10001- | |
| 8 | 01436-01020 | BOLT | A10001- | |
| 9 | 08038-02027 | CAP | A10001- | |
| 10 | 56B-06-16441 | WIRING HARNESS | A10001- | |
| 11 | 56C-06-16410 | CONNECTOR | A10001- | |
| 12 | 569-06-61960 | RELAY | A10001- | |
| 13 | 01010-80885 | BOLT | A10001- | |
| 14 | 01643-30823 | WASHER | A10001- | |
| 15 | 08036-03014 | CLIP | A10001- | |
| 16 | 08036-00814 | CLIP | A10001- | |
| 17 | 01435-01016 | BOLT | A10001- |
