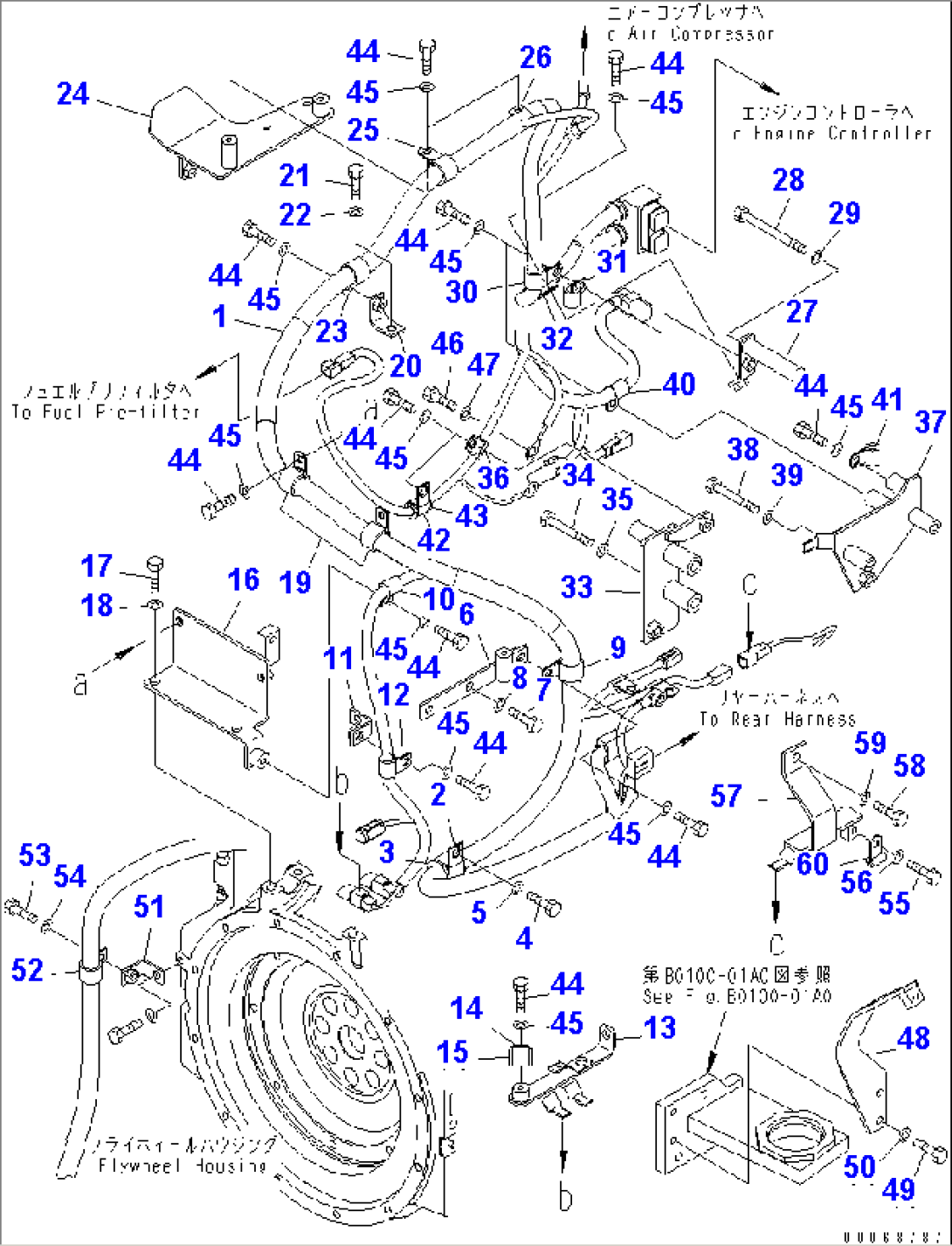

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 419-06-48112 | WIRING HARNESS | 70001- | |
| 1 | 21J-06-13661 | DIODE | 70001- | |
| 2 | 04434-53212 | CLIP | 70001- | |
| 3 | 07095-20523 | CUSHION | 70001- | |
| 4 | 01010-81225 | BOLT | 70001- | |
| 5 | 01643-31232 | WASHER | 70001- | |
| 6 | 419-06-42520 | BRACKET | 70001- | |
| 7 | 01010-81020 | BOLT | 70001- | |
| 8 | 01643-31032 | WASHER | 70001- | |
| 9 | 600-051-2240 | CLIP | 70001- | |
| 10 | 600-051-2140 | CLIP | 70001- | |
| 11 | 42A-16-11210 | PLATE | 70001- | |
| 12 | 600-051-2140 | CLIP | 70001- | |
| 13 | 419-06-48380 | BRACKET | 70001- | |
| 14 | 04434-51712 | CLIP | 70001- | |
| 15 | 07095-20211 | CUSHION | 70001- | |
| 16 | 418-06-42510 | BRACKET | 70001- | |
| 17 | 01010-81030 | BOLT | 70001- | |
| 18 | 01643-31032 | WASHER | 70001- | |
| 19 | 600-051-2240 | CLIP | 70001- | |
| 20 | 20Y-04-11230 | BRACKET | 70001- | |
| 21 | 01010-81235 | BOLT | 70001- | |
| 22 | 01643-31232 | WASHER | 70001- | |
| 23 | 600-051-2240 | CLIP | 70001- | |
| 24 | 418-06-42560 | BRACKET | 70001- | |
| 25 | 600-051-2240 | CLIP | 70001- | |
| 26 | 600-051-2200 | CLIP | 70001- | |
| 27 | 423-06-42540 | BRACKET | 70001- | |
| 28 | 6132-11-4690 | BOLT | 70001- | |
| 29 | 01643-30823 | WASHER | 70001- | |
| 30 | 600-051-2200 | CLIP | 70001- | |
| 31 | 600-051-2140 | CLIP | 70001- | |
| 32 | 600-051-2180 | CLIP | 70001- | |
| 33 | 418-03-43810 | BRACKET | 70001- | |
| 34 | 01010-81270 | BOLT | 70001- | |
| 35 | 01643-31232 | WASHER | 70001- | |
| 36 | 600-051-2100 | CLIP | 70001- | |
| 37 | 419-06-48331 | BRACKET | 70001- | |
| 38 | 01010-80860 | BOLT | 70001- | |
| 39 | 01643-30823 | WASHER | 70001- | |
| 40 | 600-051-2140 | CLIP | 70001- | |
| 41 | 600-051-2100 | CLIP | 70001- | |
| 42 | 04434-51612 | CLIP | 70001- | |
| 43 | 07095-20211 | CUSHION | 70001- | |
| 44 | 01010-81020 | BOLT | 70001- | |
| 45 | 01643-31032 | WASHER | 70001- | |
| 46 | 01010-81220 | BOLT | 70001- | |
| 47 | 01643-31232 | WASHER | 70001- | |
| 48 | 418-06-42420 | BRACKET | 70001- | |
| 49 | 01010-81020 | BOLT | 70001- | |
| 50 | 01643-31032 | WASHER | 70001- | |
| 51 | 42A-16-11210 | PLATE | 70001- | |
| 52 | 04434-52310 | CLIP | 70001- | |
| 53 | 01010-81020 | BOLT | 70001- | |
| 54 | 01643-31032 | WASHER | 70001- | |
| 55 | 01010-81016 | BOLT | 70001- | |
| 56 | 01643-31032 | WASHER | 70001- | |
| 57 | 419-06-48213 | BRACKET | 70001- | |
| 58 | 01010-81230 | BOLT | 70001- | |
| 59 | 01643-31232 | WASHER | 70001- | |
| 60 | 600-051-2050 | CLIP | 70001- |
