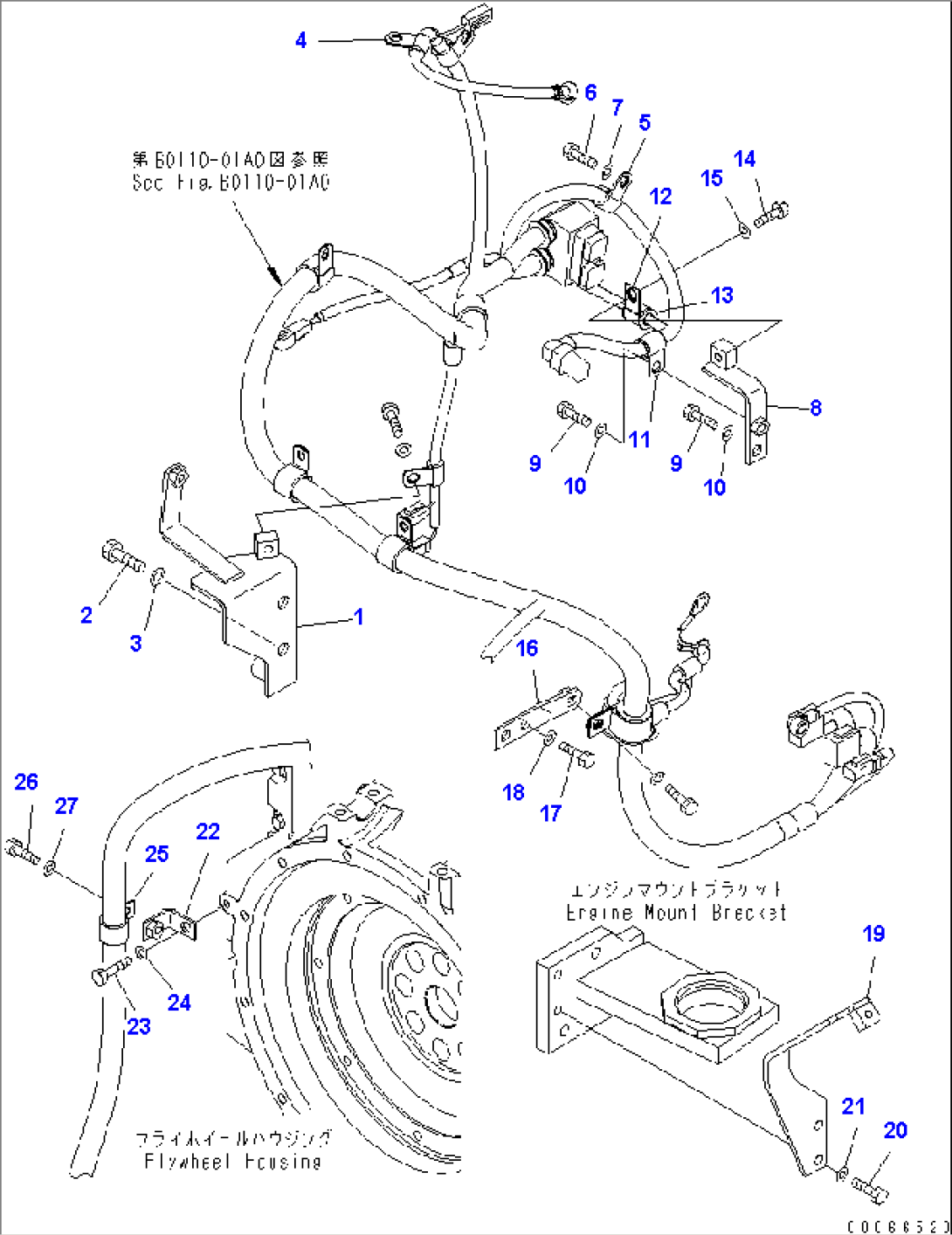

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 417-06-42530 | BRACKET | 70136-70342 | |
| 2 | 01016-51235 | BOLT | 70136-70342 | |
| 3 | 01643-31232 | WASHER | 70136-70342 | |
| 4 | 600-051-2100 | CLIP | 70136-70342 | |
| 5 | 600-051-2140 | CLIP | 70136-70342 | |
| 6 | 01010-81020 | BOLT | 70136-70342 | |
| 7 | 01643-31032 | WASHER | 70136-70342 | |
| 8 | 417-06-42520 | BRACKET | 70136-70342 | |
| 9 | 01010-81020 | BOLT | 70136-70342 | |
| 10 | 01643-31032 | WASHER | 70136-70342 | |
| 11 | 600-051-2140 | CLIP | 70136-70342 | |
| 12 | 04434-51612 | CLIP | 70136-70342 | |
| 13 | 07095-20211 | CUSHION | 70136-70342 | |
| 14 | 01010-81020 | BOLT | 70136-70342 | |
| 15 | 01643-31032 | WASHER | 70136-70342 | |
| 16 | 417-06-42430 | BRACKET | 70136-70342 | |
| 17 | 01010-81020 | BOLT | 70136-70342 | |
| 18 | 01643-31032 | WASHER | 70136-70342 | |
| 19 | 417-06-42420 | BRACKET | 70136-70342 | |
| 20 | 01010-81020 | BOLT | 70136-70342 | |
| 21 | 01643-31032 | WASHER | 70136-70342 | |
| 22 | 42A-16-11210 | PLATE | 70136-70342 | |
| 23 | 01010-81040 | BOLT | 70136-70342 | |
| 24 | 01643-31032 | WASHER | 70136-70342 | |
| 25 | 04434-52312 | CLIP | 70136-70342 | |
| 26 | 01010-81020 | BOLT | 70136-70342 | |
| 27 | 01643-31032 | WASHER | 70136-70342 |
