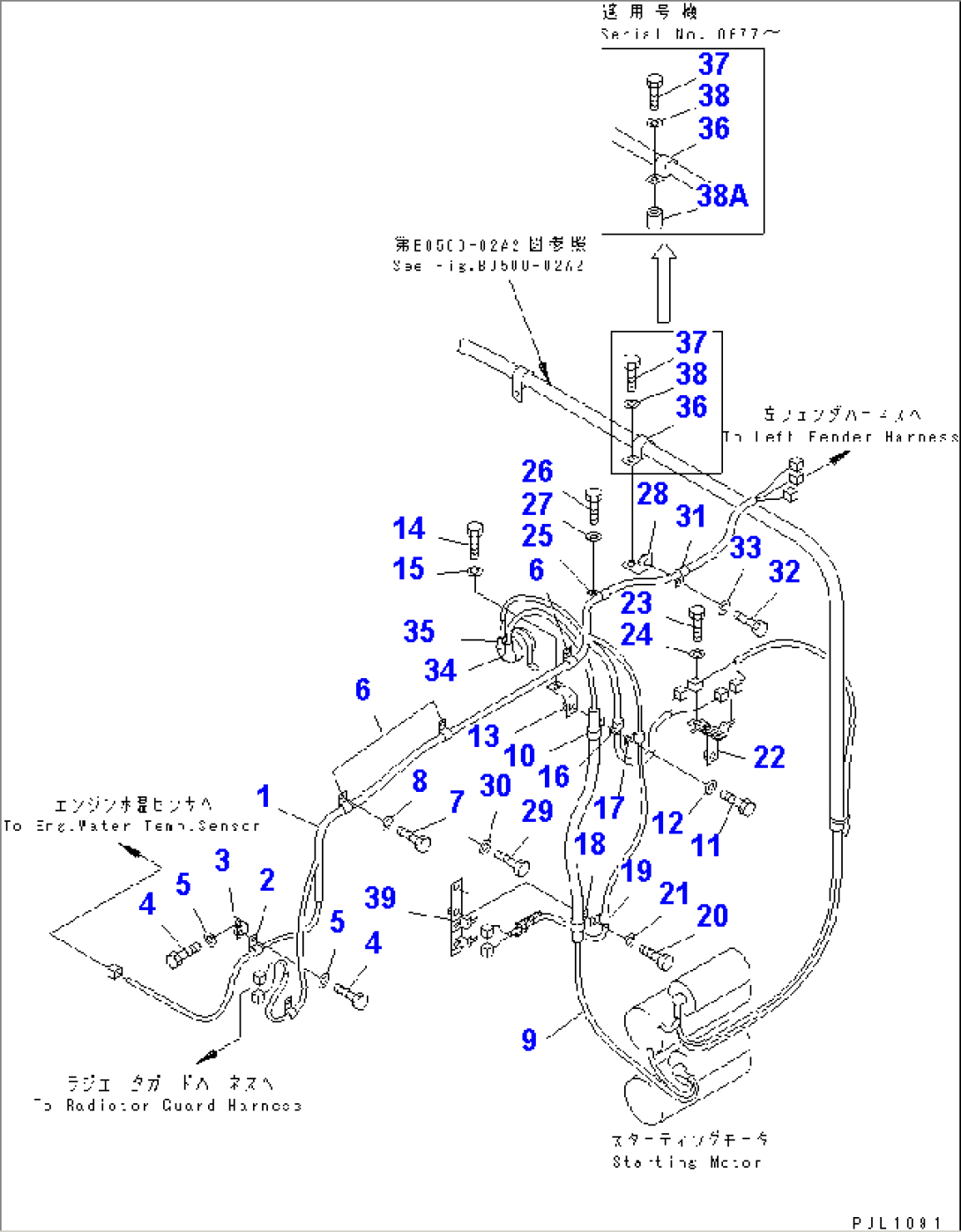

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 198-06-55120 | WIRING HARNESS | 10601-@ | |
| 2 | 04434-51412 | CLIP | 10601-10732 | |
| 3 | 209-62-15930 | BRACKET | 10601-@ | |
| 4 | 01010-81020 | BOLT | 10601-@ | |
| 5 | 01643-31032 | WASHER | 10601-@ | |
| 6 | 04434-51412 | CLIP | 10601-10732 | |
| 7 | 01010-81225 | BOLT | 10601-@ | |
| 8 | 01643-31232 | WASHER | 10601-@ | |
| 9 | 198-06-56930 | WIRE HARNESS | 10660-@ | |
| 9 | 198-06-46170 | WIRING HARNESS | 10601-10659 | |
| 10 | 04434-52212 | CLIP | 10601-@ | |
| 11 | 01010-81230 | BOLT | 10601-@ | |
| 12 | 01643-31232 | WASHER | 10601-@ | |
| 13 | 17M-49-15260 | BRACKET | 10601-@ | |
| 14 | 01010-81225 | BOLT | 10601-@ | |
| 15 | 01643-31232 | WASHER | 10601-@ | |
| 16 | 04434-51412 | CLIP | 10601-@ | |
| 17 | 209-68-19140 | CLIP | 10601-10732 | |
| 18 | 04434-52212 | CLIP | 10601-@ | |
| 19 | 209-68-19140 | CLIP | 10601-10732 | |
| 20 | 01010-81225 | BOLT | 10601-@ | |
| 21 | 01643-31232 | WASHER | 10601-@ | |
| 22 | 198-06-51392 | BRACKET | 10677-@ | |
| 22 | 198-06-51391 | BRACKET | 10601-10676 | |
| 23 | 01010-81225 | BOLT | 10601-@ | |
| 24 | 01643-31232 | WASHER | 10601-@ | |
| 25 | 04434-51912 | CLIP | 10601-@ | |
| 26 | 01010-81225 | BOLT | 10601-@ | |
| 27 | 01643-31232 | WASHER | 10601-@ | |
| 28 | 17M-49-15260 | BRACKET | 10601-@ | |
| 29 | 01010-81225 | BOLT | 10601-@ | |
| 30 | 01643-31232 | WASHER | 10601-@ | |
| 31 | 04434-51912 | CLIP | 10601-@ | |
| 32 | 01010-81225 | BOLT | 10601-@ | |
| 33 | 01643-31232 | WASHER | 10601-@ | |
| 34 | 08038-12027 | CAP | 10601-@ | |
| 35 | 08038-10519 | CAP | 10601-@ | |
| 36 | 04434-52712 | CLIP | 10601-@ | |
| 37 | 01010-81250 | BOLT | 10677-@ | |
| 37 | 01010-81225 | BOLT | 10601-10676 | |
| 38 | 01643-31232 | WASHER | 10601-@ | |
| 38A | 195-33-11220 | SPACER | 10677-@ | |
| 39 | 198-06-46250 | BRACKET | 10601-@ |
