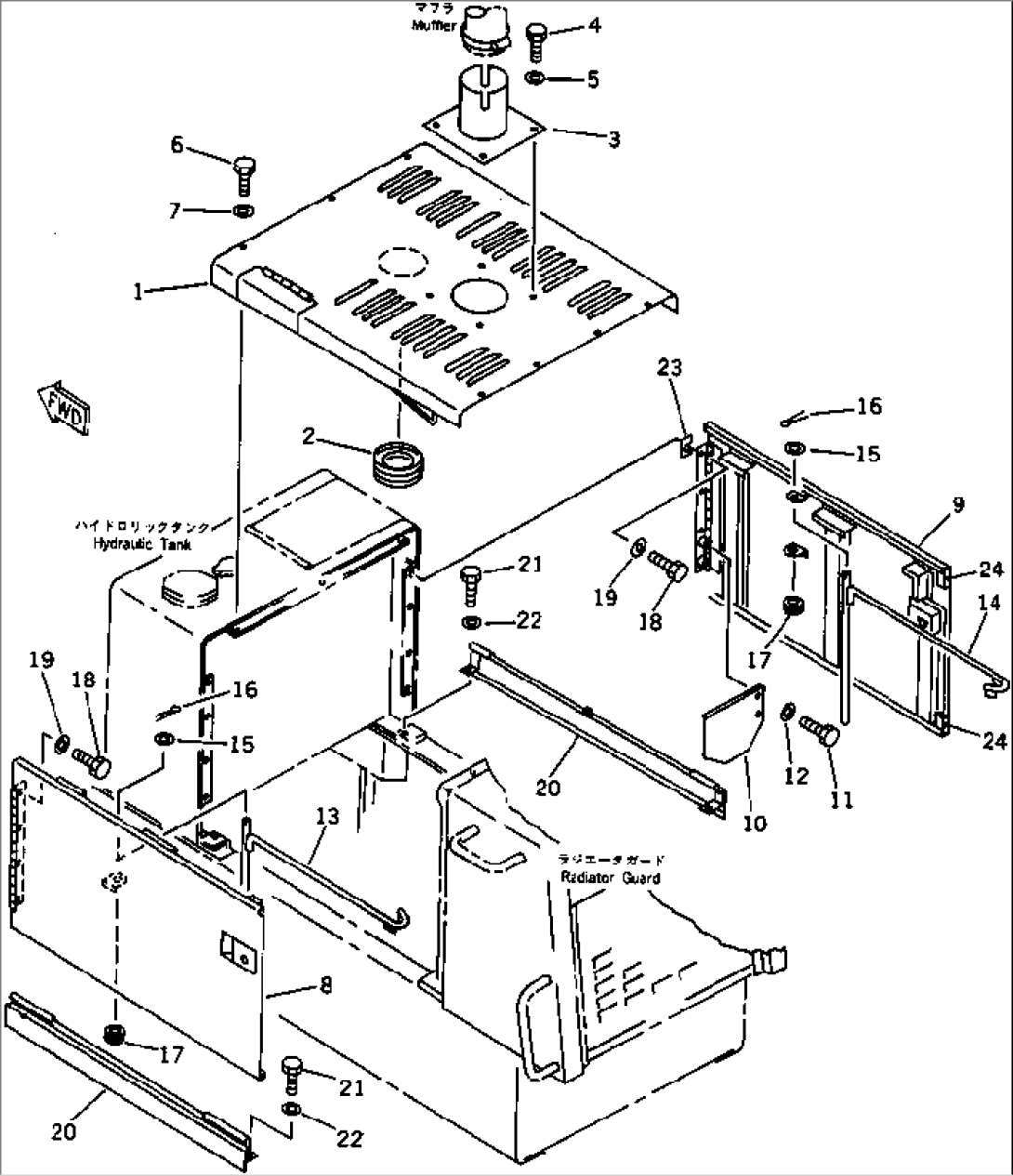

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 418-Z93-11110 | HOOD | 10001- | |
| 2 | 418-54-11420 | BOOT | 10001- | |
| 3 | 419-02-11111 | BRACKET | 10001- | |
| 4 | 01010-51225 | BOLT | 10001- | |
| 5 | 01643-31232 | WASHER | 10001- | |
| 6 | 01010-51225 | BOLT | 10001- | |
| 7 | 01643-31232 | WASHER | 10001- | |
| 8 | 418-54-11133 | COVER,L.H. | 10001- | |
| 8 | 421-54-11372 | LOCK ASS'Y | 10001- | |
| 9 | 418-54-11144 | COVER,R.H. | 10001- | |
| 9 | 421-54-11362 | LOCK ASS'Y | 10001- | |
| 10 | 418-54-11890 | COVER | 10607- | |
| 10 | \0\418-54-11391 | COVER | 10118-10606 | |
| 10 | \0\418-54-11390 | COVER | 10001-10117 | |
| 11 | 01010-31020 | BOLT | 10001- | |
| 12 | 01643-31032 | WASHER | 10001- | |
| 13 | 418-54-11181 | ROD,L.H. | 10001- | |
| 14 | 418-54-11191 | ROD,R.H. | 10001- | |
| 15 | 01643-31232 | WASHER | 10001- | |
| 16 | 04050-14020 | PIN,COTTER | 10001- | |
| 17 | 08037-03614 | GROMMET | 10001- | |
| 18 | 01010-31225 | BOLT | 10001- | |
| 19 | 01643-31232 | WASHER | 10001- | |
| 20 | 418-54-11174 | COVER | 10001- | |
| 21 | 01010-51225 | BOLT | 10001- | |
| 22 | 01643-31232 | WASHER | 10001- | |
| 23 | 418-54-11430 | SHIM, 1.0MM | 10001- | |
| 24 | 421-09-12780 | CUSHION,STRIP | 10001- |
