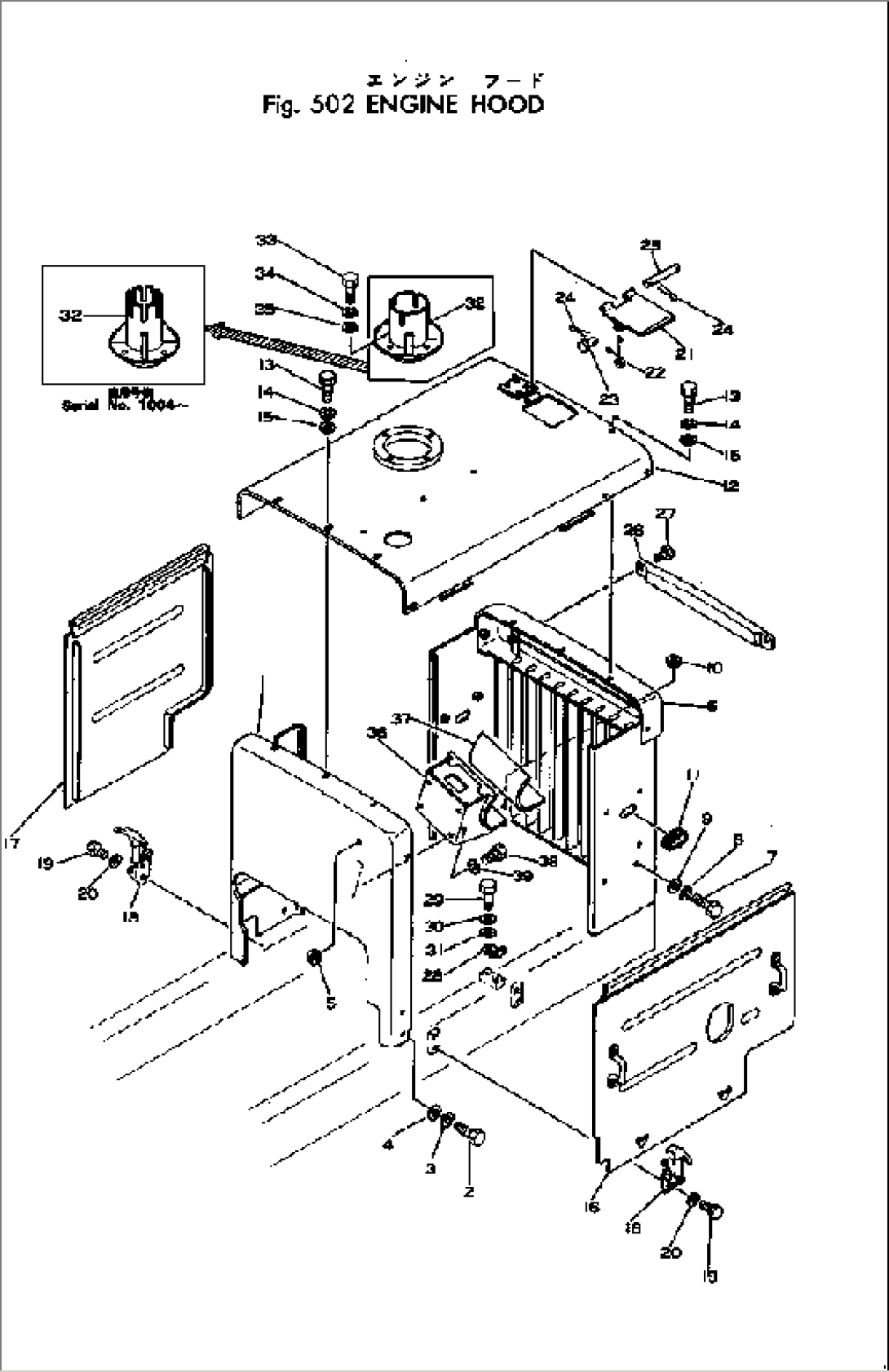

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 237-54-12110 | PANEL | 1002- | |
| 2 | 01010-31020 | BOLT | 1002- | |
| 3 | 01602-01030 | WASHER,SPRING | 1002- | |
| 4 | 01643-31032 | WASHER | 1002- | |
| 5 | 08037-01610 | GROMMET | 1002- | |
| 6 | 237-54-12120 | GRILLE | 1002- | |
| 7 | 01010-31025 | BOLT | 1002- | |
| 8 | 01602-01030 | WASHER,SPRING | 1002- | |
| 9 | 01643-21032 | WASHER | 1002- | |
| 10 | 08037-01008 | GROMMET | 1002- | |
| 11 | 08037-03614 | GROMMET | 1016- | |
| 11 | 08037-02512 | GROMMET | 1002-1015 | |
| 12 | 237-54-12130 | HOOD | 1002- | |
| 13 | 01010-31020 | BOLT | 1002- | |
| 14 | 01602-01030 | WASHER,SPRING | 1002- | |
| 15 | 01643-31032 | WASHER | 1002- | |
| 16 | 237-54-12140 | PANEL,L.H. | 1002- | |
| 17 | 237-54-12150 | PANEL,R.H. | 1002- | |
| 18 | 232-54-12230 | CATCHER | 1002- | |
| 19 | 01220-30408 | SCREW | 1002- | |
| 20 | 01601-00410 | WASHER,SPRING | 1002- | |
| 21 | 237-54-12170 | COVER | 1002- | |
| 22 | 237-54-12160 | SPRING | 1002- | |
| 23 | 04205-10616 | PIN | 1002- | |
| 24 | 04050-11610 | PIN,COTTER | 1002- | |
| 25 | 131-54-11270 | PIN | 1002- | |
| 26 | 135-54-21131 | MARK | 1002- | |
| 27 | 01225-40820 | SCREW | 1002- | |
| 28 | 236-54-23170 | BRACKET | 1002- | |
| 29 | 01010-31020 | BOLT | 1002- | |
| 30 | 01602-01030 | WASHER,SPRING | 1002- | |
| 31 | 01643-31032 | WASHER | 1002- | |
| 32 | 237-54-12181 | SUPPORT | 1004- | |
| 32 | 237-54-12180 | SUPPORT | 1002-1003 | |
| 33 | 01010-31020 | BOLT | 1088- | |
| 33 | 01010-31025 | BOLT | 1002-1087 | |
| 34 | 01602-21030 | WASHER,SPRING | 1002- | |
| 35 | 232-814-1350 | WASHER | 1088- | |
| 35 | 01642-21016 | WASHER | 1002-1087 | |
| 36 | 237-54-12210 | BRACKET | 1002- | |
| 37 | 237-54-12220 | CUSHION | 1002- | |
| 38 | 01010-51016 | BOLT | 1002- | |
| 39 | 01602-21030 | WASHER,SPRING | 1002- |
