| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 19M-54-31510 | HOOD | 10101- | |
| 2 | 19M-54-15741 | COVER | 10101- | |
| 3 | 01010-81230 | BOLT | 10101- | |
| 4 | 01643-31232 | WASHER | 10101- | |
| 5 | 6128-11-5180 | HOOD ASS'Y | 10101- | |
| 6 | 19M-54-25740 | COVER | 10101- | |
| 7 | 01010-81225 | BOLT | 10101- | |
| 8 | 01643-31232 | WASHER | 10101- | |
| 9 | 19M-54-16780 | COVER | 10101- | |
| 10 | 01010-81220 | BOLT | 10101- | |
| 11 | 01643-31232 | WASHER | 10101- | |
| 12 | 19M-54-11632 | COVER | 10101- | |
| 13 | 01010-81225 | BOLT | 10101- | |
| 14 | 01643-31232 | WASHER | 10101- | |
| 15 | 19M-54-13590 | COVER | 10101- | |
| 16 | 01010-81225 | BOLT | 10101- | |
| 17 | 01643-31232 | WASHER | 10101- | |
| 18 | 19M-54-16740 | COVER | 10101- | |
| 19 | 01010-81225 | BOLT | 10101- | |
| 20 | 01643-31232 | WASHER | 10101- | |
| 21 | 19M-54-14840 | BRACKET | 10101- | |
| 22 | 01010-81235 | BOLT | 10101- | |
| 23 | 01643-31232 | WASHER | 10101- | |
| 24 | 195-54-46180 | PLATE | 10101- | |
| 25 | 195-54-42680 | PLATE | 10101- | |
| 26 | 01010-81635 | BOLT | 10101- | |
| 27 | 01643-31645 | WASHER | 10101- | |
| 28 | 203-54-21110 | CUSHION | 10101- | |
| 29 | 19M-54-11770 | PLATE | 10101- | |
| 30 | 19M-54-11761 | PLATE | 10101- | |
| 31 | 01010-81635 | BOLT | 10101- | |
| 32 | 01643-31645 | WASHER | 10101- | |
| 33 | 19M-54-11963 | COVER | 10103- | |
| 33 | (\2\19M-54-11962) | COVER | (10101-10102) | |
| 34 | 01010-81220 | BOLT | 10101- | |
| 35 | 01643-31232 | WASHER | 10101- | |
| 36 | 195-54-42981 | CAP | 10101- | |
| 37 | 19M-54-25891 | BRACKET | 10103- | |
| 37 | (\2\19M-54-25890) | BRACKET | (10101-10102) | |
| 38 | 19M-54-11953 | COVER | 10103- | |
| 38 | (\2\19M-54-11952) | COVER | (10101-10102) | |
| 39 | 19M-54-25981 | BRACKET | 10103- | |
| 39 | (\2\19M-54-25980) | BRACKET | (10101-10102) | |
| 40 | 01010-81225 | BOLT | 10101- | |
| 41 | 01643-31232 | WASHER | 10101- |
- Главная
- Каталог запчастей
- Бульдозеры
- D575a 3 s/n 10101 up
- Guard

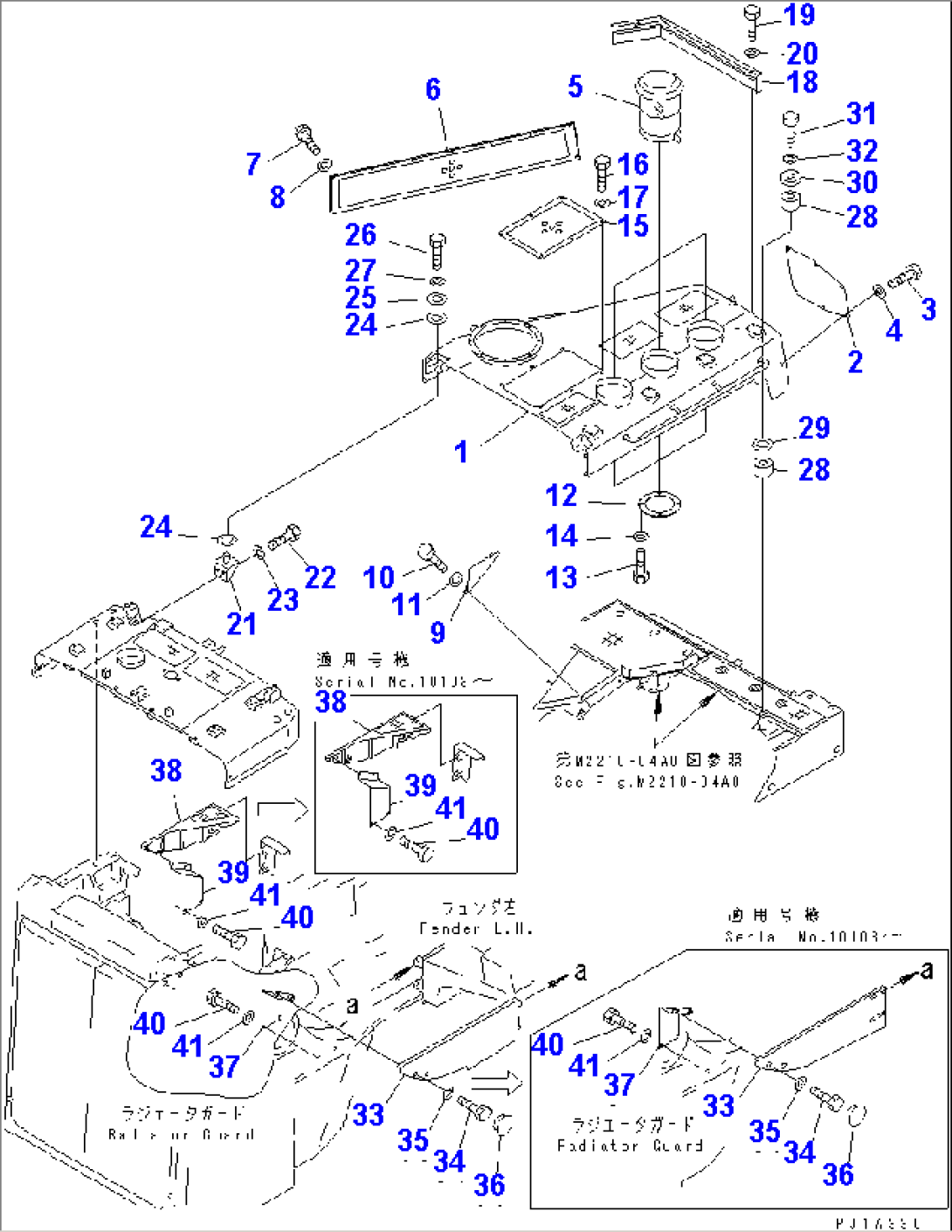

- Engine hood and cover (super dozer)
